Chapter 4 - Functional Checks 4-7
4-3-3-3 Monitor Display

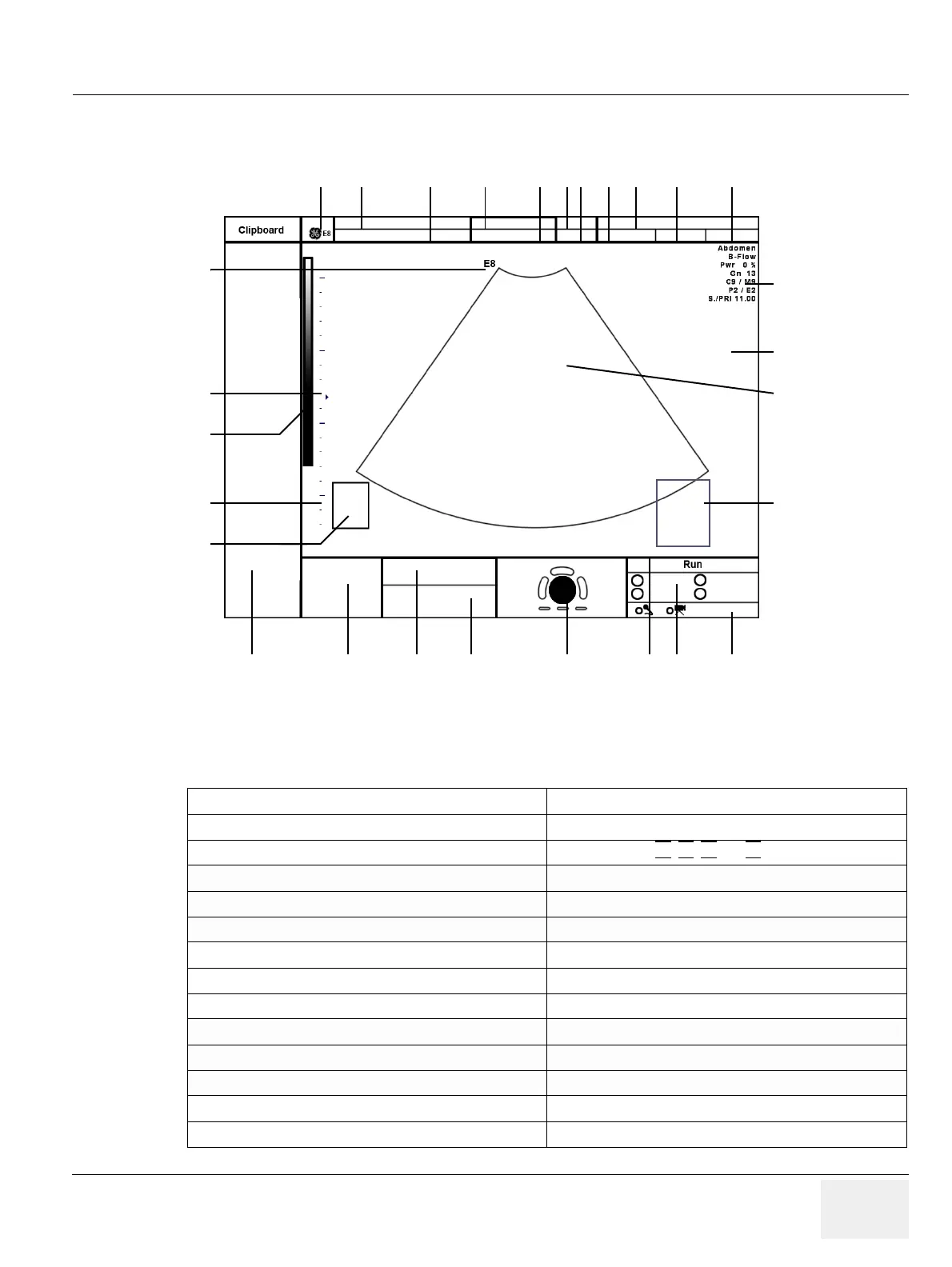

Figure 4-7 Monitor Display Tour
Table 4-1 Monitor Display Features
1. Logo 15. Measurement results
2. Patient Name (Last-, First-, Middle Name) 16. Status area of Network, Recorder, Microphone, etc.
3. Patient ID-number ; GA (Gestational Age) 17. Status area of P1
, P2, P3 and P4 keys
4. Probe / Application 18. Status area of current operation state (Freeze/Run/Cine)
5. Depth / Frame rate 19. Status area of the trackball and trackball keys
6. Mechanical Index 20. reserved for future use
7. Thermal Index 21. Message area
8. Sonographers Name 22. Clipboard History
9. Hospital Name (Identification) 23. Current Clipboard
10. Date 24. Body marker
11. Time 25. Depth scale markers
12. Image Info 26. Gray scale wedge
13. TGC curve 27. Focal zones marker
14. Image area 28. Orientation marker
12 34567891011
12
13
14
15
1617181920212223
24
25
26
27
28
