5-2 Section 5-2 - General Information
Section 5-2
General Information
Voluson E8 / Voluson E6 is a digital beamforming curved-, linear- and phased array ultrasound imaging
system.
It has provisions for analog input sources like ECG and Phono.
A CW-Doppler probe may also be connected and used.
The system can be used for:
• 2D Mode Imaging and additional Operating Modes (B-Flow, XTD-View, Contrast Imaging, etc.)
• Color Doppler Imaging (CFM, PD, TD and HD-Flow)
• M Mode + MCFM Imaging
• Doppler (PW, CW)
• 3D Mode and Real Time 4D Imaging
• Different combinations of the above modes

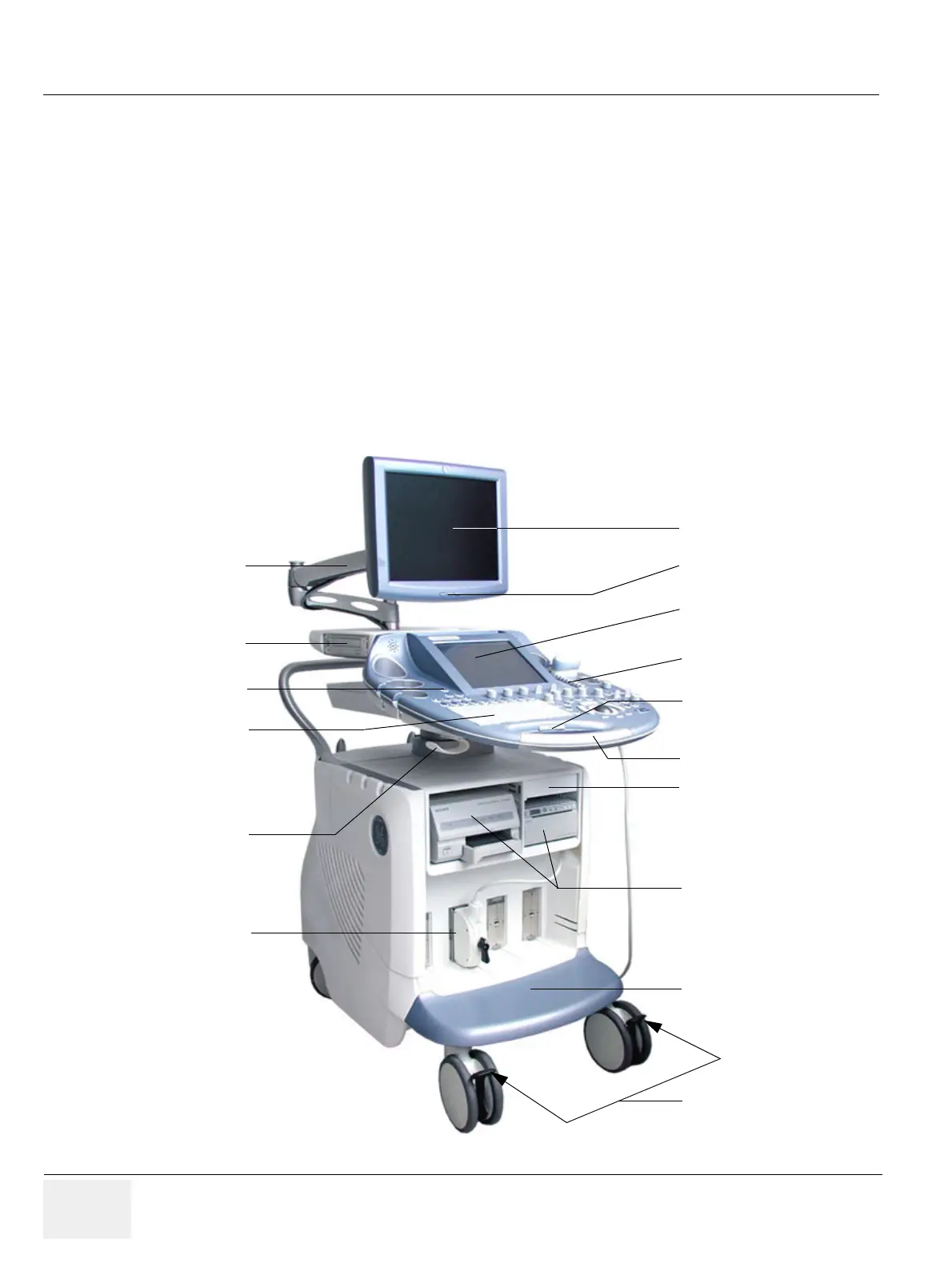

Figure 5-1 Voluson E8 / Voluson E6 Major Components
Monitor 19”
Touch Panel/Display
TGC - Slider Controls
Monitor Controls
Control Console
Front Grip
Probe Connectors part
Footrest
Brakes to block the
front wheels
Button to rotate the
Place for ECG
ON/OFF Standby button
DVD+(R)W Drive
incl. CW Connector and
Probe storage connector
(left - not active for scanning)
Place for B/W and/or
Color printer and/or
Recorder (DVD)
Control Console
Module (optional)
Probe Cable Holder
Monitor Holder
(fully adjustable)
