Chapter 3 - Setup Instructions 3-5
Section 3-3 Receiving and Unpacking the Equipment (cont’d)

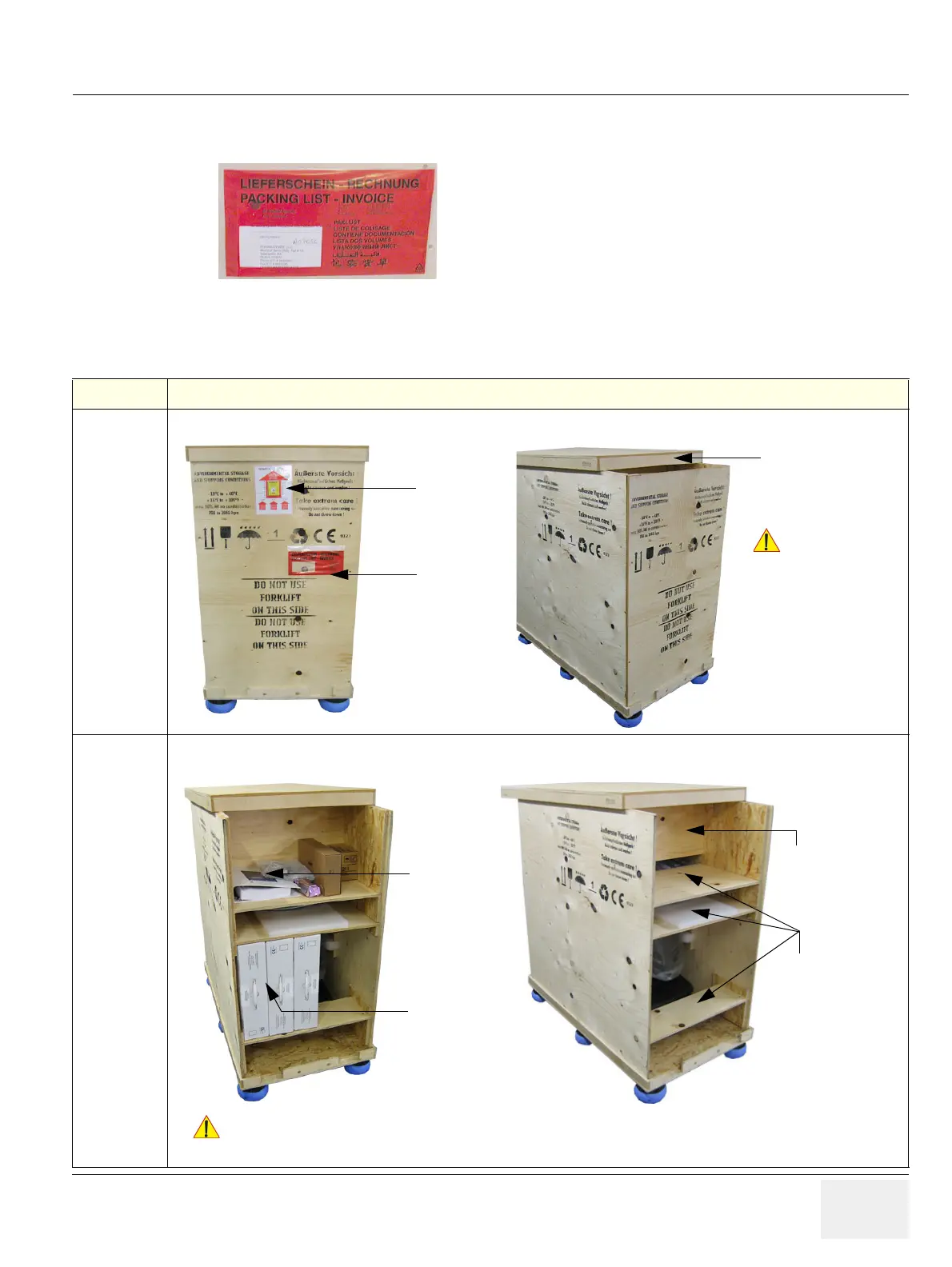

Figure 3-4 envelope at front panel of the crate
Table 3-4 Unpacking Procedure
Step Task
1.
Loosen the screws. DO NOT remove the top panel, just place it on the crate (about middle of side walls).
2.
Take off the front panel, then remove probes and accessories from the wooden box.
Afterwards pull out all the horizontal wooden racks for accessories, finally remove also the vertical board.
Check whether delivery is complete
(according to packing list) and check visual damage!
The envelope with delivery address, packing list and
invoice is located on the front panel of the crate.
tilt and drop
indicator
envelope with
packing list
place the top panel
on the crate
(middle of side walls)
!! CAUTION:
DO NOT remove
the top panel.
!! CAUTION:
probes
DO NOT open side panels prior to removing the front panel!
Accessories could drop down and DAMAGE the user interface!
accessories
for accessories
wooden racks
horizontal
finally remove
vertical board
