gefran TPD32-EV-...-4B - Figure 6.14.6.2: Overload Control (Overload Mode= Curr Not Limited)

—————— Instruction manual ——————
251
Time
Overload
current [312]
Base
current [313]
Overload
time [310]
Overload
time [310]
Overload
time [310]
Pause
time [311]
Pause
time [311]
Waiting
time
Overld
available [406]
Overload
state [407]
T current
Limits

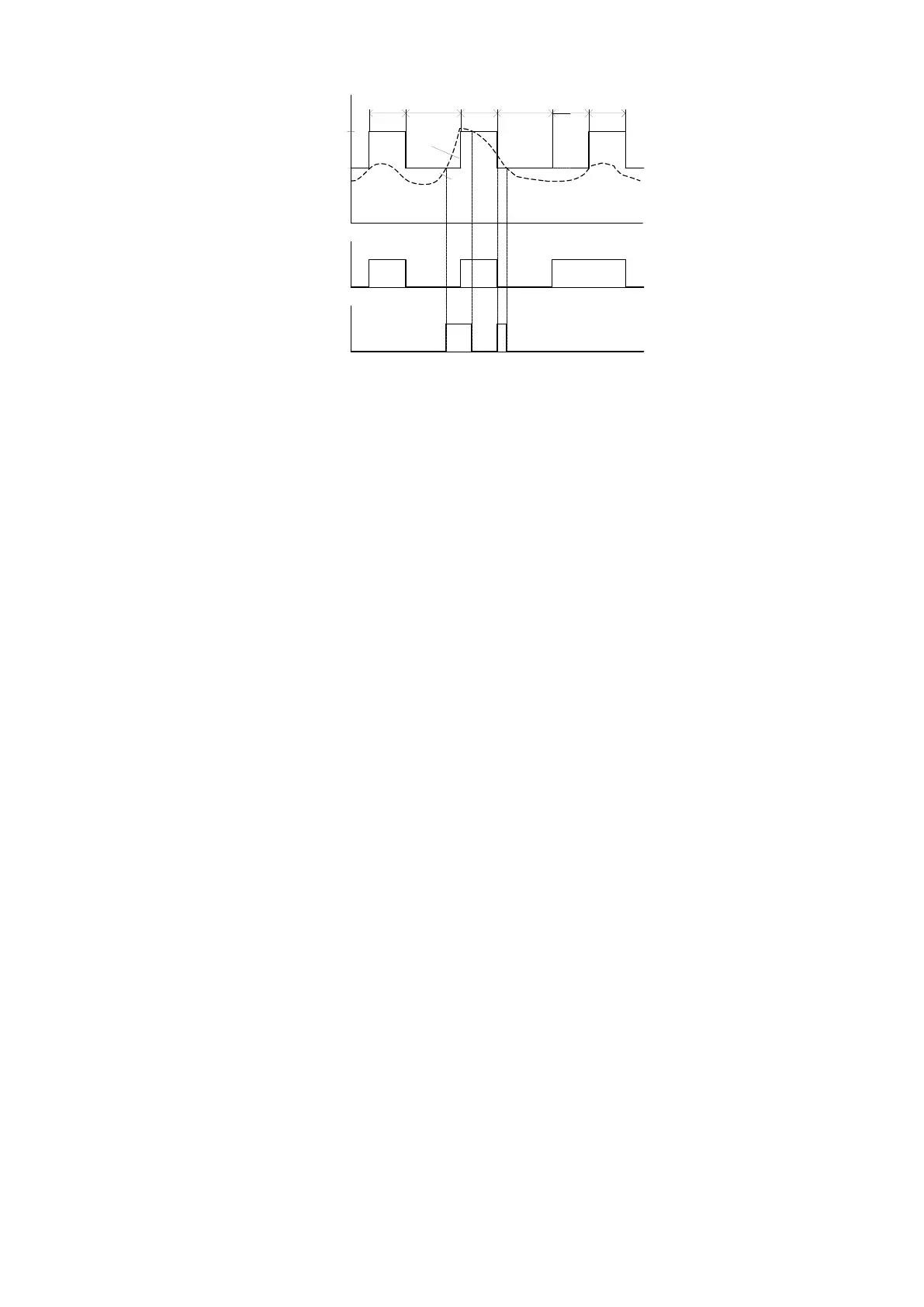

Figure 6.14.6.2: Overload control (Overload mode= curr not limited)
