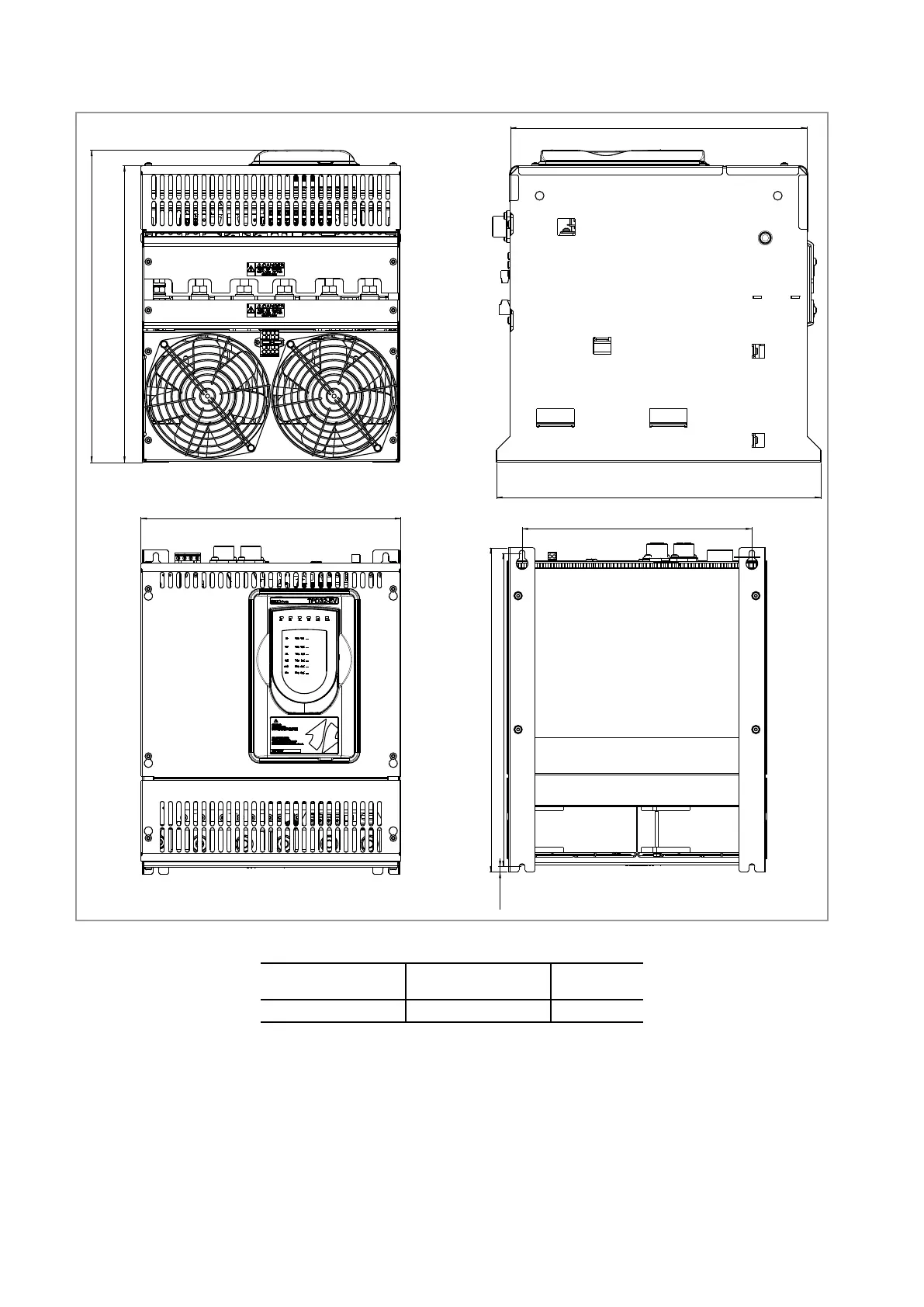

Figure 2.4.5: Type B2 dimensions
388mm [15.27”]
6.5mm
375mm [14.76]
275mm [10.82”]
311mm [12.24”]
355mm [13.98”]
388mm [12.27”]
355mm [13.97”]
373.6mm [14.7”]
American Standard Weight
kg [lbs]
TPD32-EV-.../...-450-..-B TPD32-EV-.../...-650-..-B 32 [70.5]
