GEM Hemochron 100 User Manual

10 / 112
000HZ6006EN.US • 02 • GEM Hemochron 100 Operator Manual

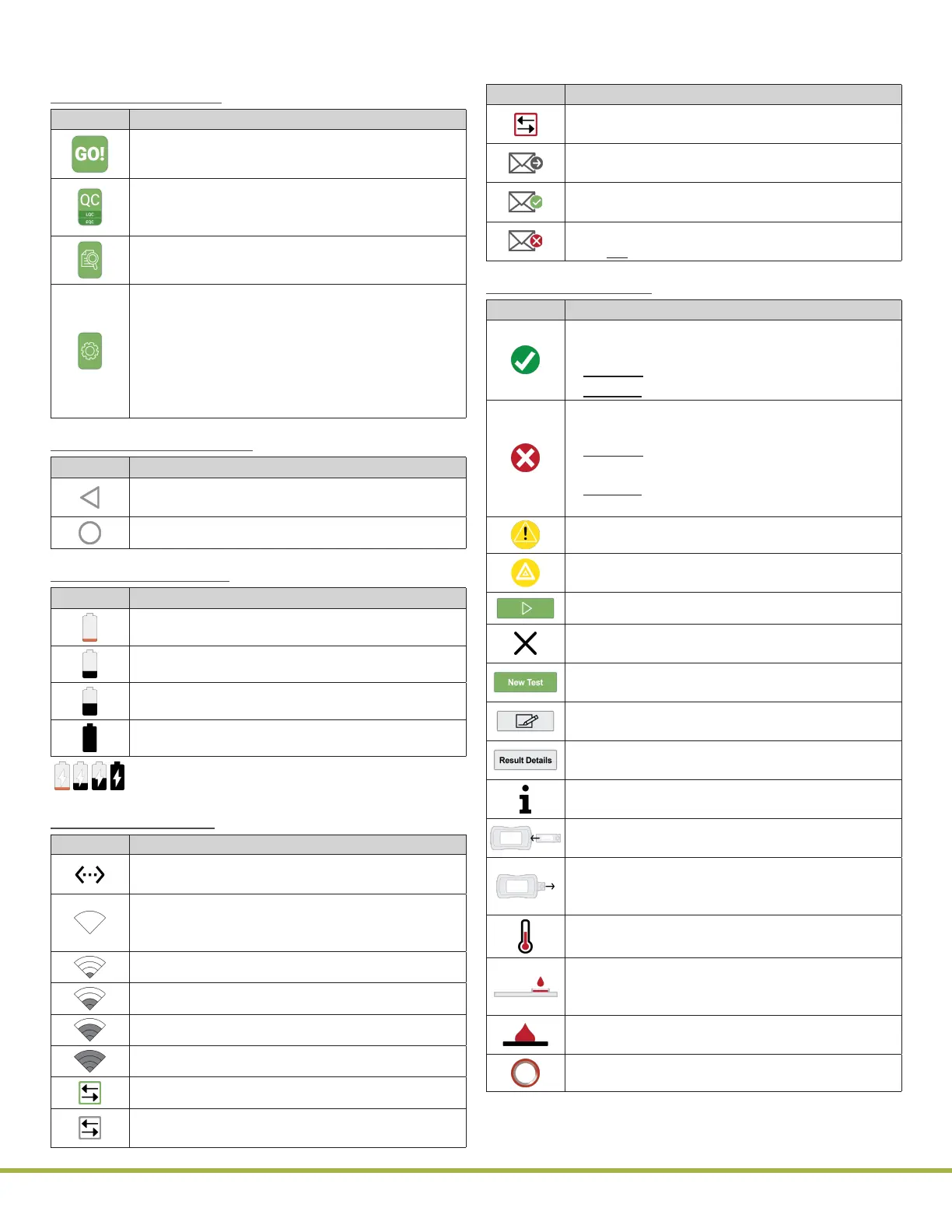

Icons on the Display Screen
Home Screen Icons:
Icon Description
Patient Test – Select icon to test a patient
sample. See “Patient Testing” (page 46) .
Quality Control – Select icon to run QC tests to
ensure the system is operating properly. See
“Quality Control (QC)” (page 51) .
Database – Select icon to view saved test
results. See “Database” (page 63) .
Settings – Select icon to view or congure the
Instrument Settings. See “Instrument Settings”
(page 25) .
To congure more advanced settings on 1 or
more instruments at the same time, see
“Centralized Conguration Manager (CCM)
Software” (page 71) .
Basic Navigation Icons:
Icon Description
Back – Select icon to return to the previous
screen.
Home – Select icon to display the Home screen.
Battery Power Icons:
Icon Description
Battery is fully discharged.
Battery is low.
Battery is partially charged.
Battery is fully charged and 100% is displayed.
NOTE: Flash symbol will appear on battery icon
when power supply is connected.
Connectivity Icons:
Icon Description
Ethernet – The instrument is connected to the
network through an Ethernet cable.
Wi-Fi is Disconnected – The instrument was
wirelessly connected to the network but is now
disconnected.
Wi-Fi Connection is Poor.
Wi-Fi Connection is Fair.
Wi-Fi Connection is Good.
Wi-Fi Connection is Excellent.
Network connection is active.
Network connection is inactive, previous
connection was successful.
Icon Description
Network connection is inactive, previous
connection failed.
Test Result Transmission In Process – Test
results are being sent to the network.
Test Result Transmission Sent – Test results
were successfully sent to the network.
Test Result Transmission Failed – Test results
were not sent to the network.
Test‑Related Icons:
Icon Description
Testing is allowed (EQC/LQC testing has
passed):
• For EQC – A patient or LQC test can be run.
• For LQC – A patient test can be run.
Testing is not allowed (EQC/LQC testing has
failed):
• For EQC – Before a patient or LQC test can
be run, a successful EQC test must be run.
• For LQC – Before a patient test can be run, a
successful LQC test must be run.
EQC/LQC Interval has expired.
Warning Message – For a list of possible
warning messages, see Table 10 (page 66) .
Start Test – Select icon to start or run a test.
Abort Test – Select icon to abort or cancel the
test at any time.
New Test – Select icon to start a new patient
test.
User Note – Select icon to enter a user note for
a test result.
Result Details – Select icon to view detailed
information about a test result.
Information – Select icon to view details of the
current test result.
Insert Test Cartridge – The instrument prompts
the Operator to insert a test cartridge.
Remove Test Cartridge – The instrument
prompts the Operator to remove the test
cartridge.
Warming Test Cartridge – The instrument is
warming the test cartridge.
Apply Sample to Test Cartridge – The
instrument prompts the Operator to apply the
sample to the test cartridge.
Sample in Test Channel – The instrument is
drawing the sample into the test channel.
Checking Test Cartridge.
