Operating menu
Main menu [Menu]
32 / 92
1009.25B0
IFU 1009.25 EN 01
1
OR01-14
CANCEL OK
IR CODE
Enter IR code
10 2 3
4 5 6 7
8 9 A B
C D E F

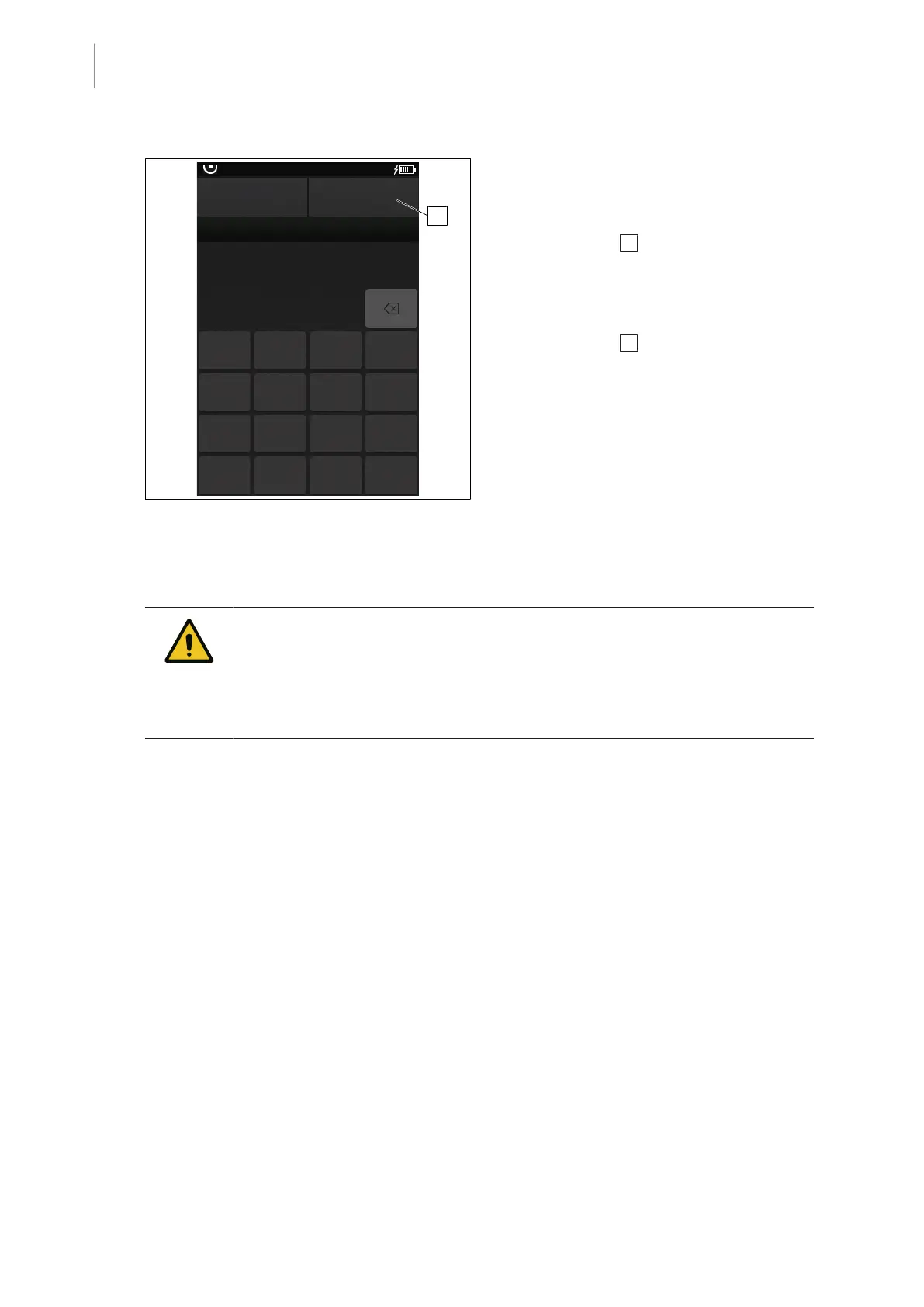

Fig.20: Enter IR code
Enter IR code
1. Enter the IR code of the new operating
table.
2. Touch the OK 1 button.
Ø The control device searches for avail-
able product groups within the trans-
mission range.
3. Touch the OK 1 button.
Ø A new operating table is connected.
Grouping of IR codes according to product groups
WARNI NG!
Risk of injury caused by unintentional movement of the OR table!
If two OR tables within a product group have the same IR code, the operation
with the control device may result in unintentional movement of the second
OR table.
Ensure that IR codes are assigned only once within a product group.
The OR table and control device must be set to the same IR code. The IR code has two charac-
ters and is made up of the numbers 0–9 and the letters A–F. The factory set IR code for the con-
trol device is [0 0]. For this reason, this IR code may never be used as the IR code. If multiple OR
tables of the same product group are used on the same floor, you must ensure that these OR
tables do not use the same IR code.
The following products are summarised into product groups in order to ensure fault-free parallel
operation:
• Operating table system 1120, BETAMAQUET 1140
• OR tables HEIDELBERGER 1130, BETASTAR 1131.01/02, 1211 (gynaecology/urology),
1223 (ENT/head), ORTHOSTAR 1420, ORTHOSTAR II 1425, ENDOSTAR 1532/1533
• Patient transfer units 1952, 1954, 1973, 1974
• ALPHAMAQUET 1150 operating table system
• OTESUS 1160 operating table system
• MAGNUS 1180 operating table system
• Operating table system AWIGS / VIWAS
• OR tables BETACLASSIC 1118.01, ALPHACLASSIC 1118.02/03, ALPHACLASSIC PRO
1118.06
• OR table BETASTAR 1131.12
• OR tables ALPHASTAR 1132.11, ALPHASTAR PLUS 1132.13, ALPHASTAR PRO
1132.21/22
• ALPHASTAR TOP 1132.17 OR table
