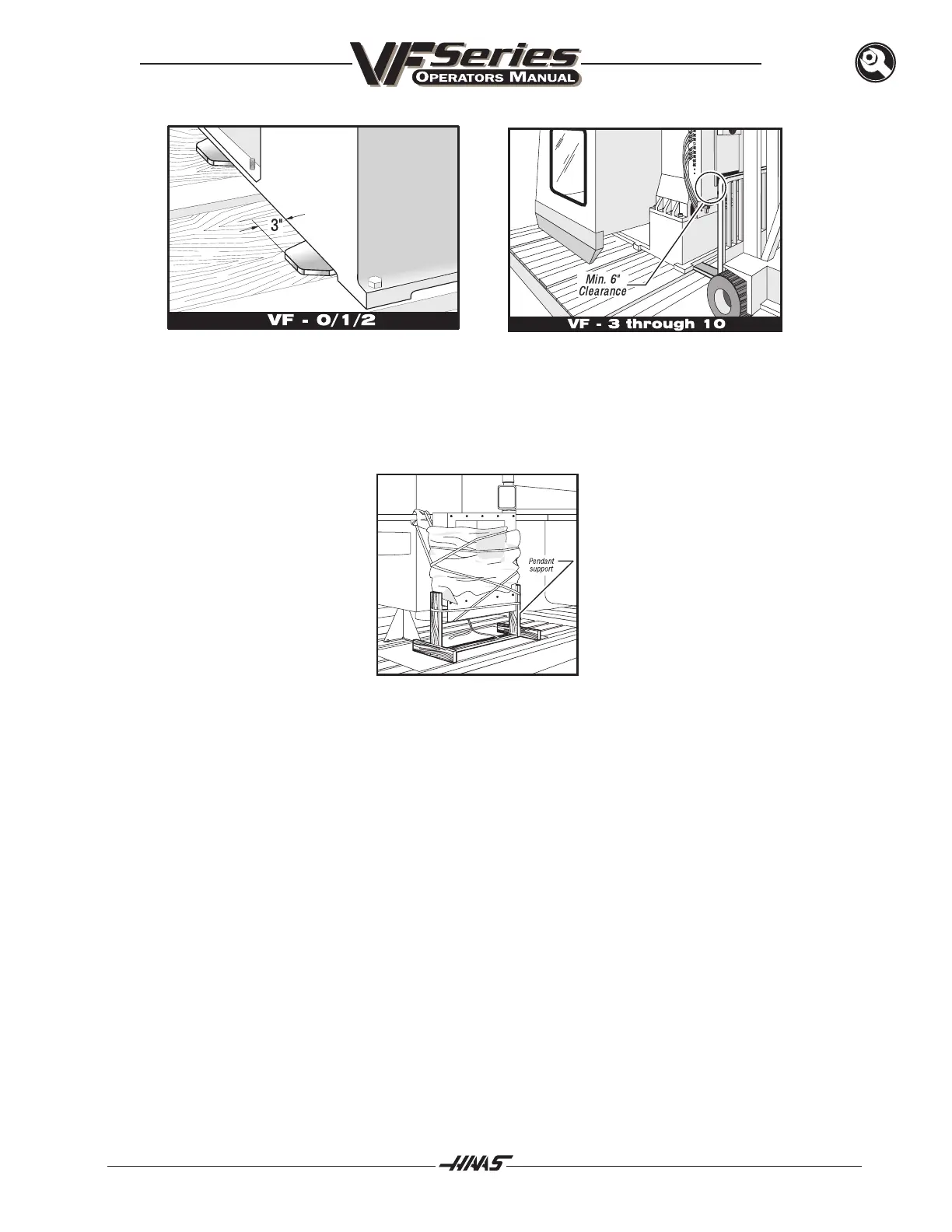

13
INSTALLATION
June 1999
96-8000
1. Lift the machine clear of the pallet.
2. Move the machine to where it will be located. Grease the dimple in each leveling pad, and locate
them under the leveling screws at the four corners. Then lower the machine.
3. Remove all banding and packing material around the control panel and the doors.
4. On the VF-6/8, remove the pendant support.
5. Remove the control arm shipping brace. On the VF-3/4, swing the control arm into position and
bolt it to the support on the top front of the machine enclosure. On the VF-6/8, swing the control
arm to the proper position.
