Haas VF Series Operator's Manual

16
INSTALLATION
June 1999
96-8000
CORING I NSTRUCTIONS
Refer to the appropriate hole pattern and machine footprint before drilling.
Cored holes must be 1.5 inch (3.81cm) diameter by 8.5 inches (21.59cm).
Note: Thoroughly clean and dry the cored holes. The holes must be completely
free of oil and water and if blasting with air, ensure that the air is free of oil.
STEP 1 ANCHOR PRE-ASSEMBLY

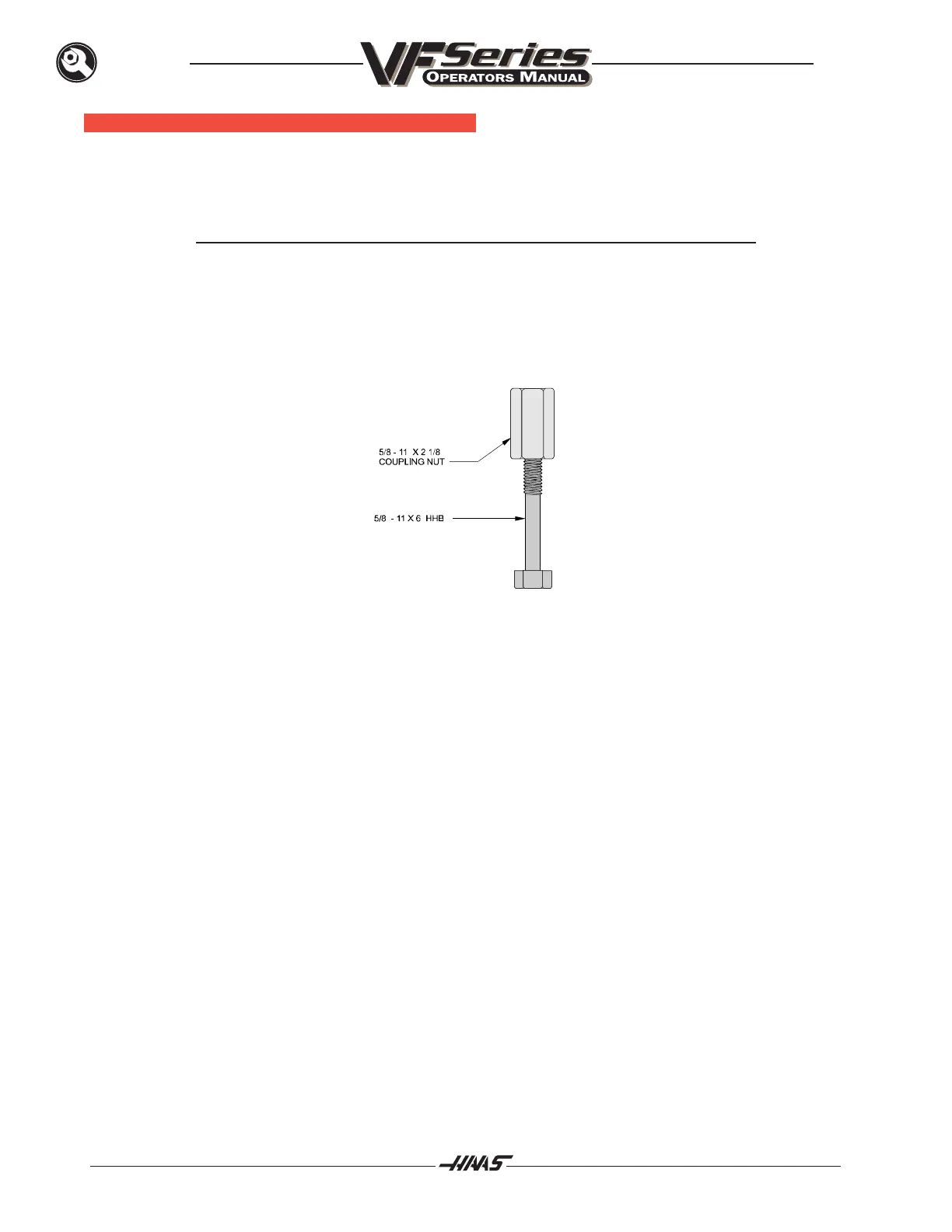

Screw the 5/8-11 HHB into the coupling nut halfway.
Pre-assembly diagram .
Screw the 5/8-11 nut onto the long threaded side of the stud halfway.
Place the floor plate and the 5/8 washer onto the stud. Screw the stud into the coupling nut until it bottoms out.
Then tighten the hex nut until the floor plate is held tight between the two nuts (see Figure).

Haas VF Series Specifications

General

Machine Type	Vertical Machining Center
Control	Haas CNC Control
Z-Axis Travel	20-30 inches (varies by model)
Y-Axis Travel	16 - 30 inches (varies by model)
Spindle Motor	20-30 hp (depending on model)
Tool Capacity	20-40 tools (varies by model)
