OPTIONS
June 1999
ROUGH L EVELING / ALIGNMENT
In this section, the APC will be set in place and roughly aligned to the VMC. When the alignment procedure is
complete, the rollers on the VMC receiver and on the APC base will be at the same height and aligned with
each other. In the "Fine Tuning" section, the APC will be aligned more precisely by adjusting variables in the
VMC control.
1. Remove the APC from it's shipping crate. Remove all tie-downs and strapping materials. Remove
the pallet shipping bolts, lift off the pallets and set them aside. Remove the door air cylinder and
the cable bundle from their storage positions in the APC pan.
2. Important! Before installing the APC, ensure the VMC has been installed and leveled. Also make
sure the APC jumper is installed in the"5th Axis" port on the side of the VMC control cabinet (see
Figure 11.16).

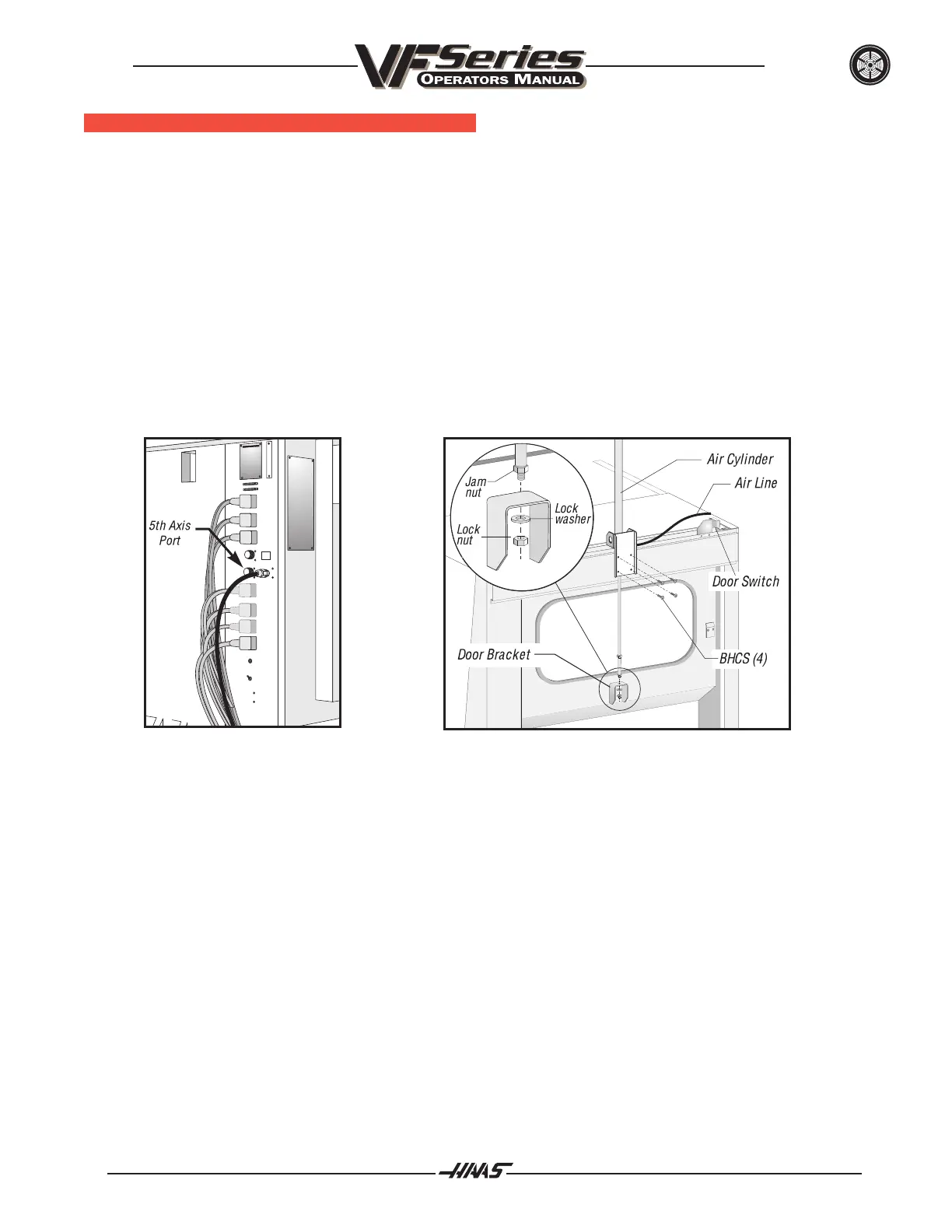

Figure 11.16 Fifth Axis port on the side of the Figure 11.17 Air cylinder installation.
VMC control cabinet
3. Remove the lock nut and washer from the end of the air cylinder rod, but leave the jam nut in place.
Connect the automatic door air cylinder and bracket to the machine with four 1/4"-20 BHCS, as
shown in Figure 11.17.
4. Insert the air cylinder rod into the door bracket, then attach the lock nut and washer to the bottom
of the cylinder rod.
5. Install the door switch and bracket onto the VMC with two SHCS. Ensure the switch is pointing
towards the door. Insert the door air line into the fitting at the base of the air cylinder.
6. POWER ON the VMC and ZERO RETURN all axes. Verify that the VMC operates normally.
