Haas VF Series Operator's Manual

442
TECHNICAL REFERENCE
June 1999
96-8000

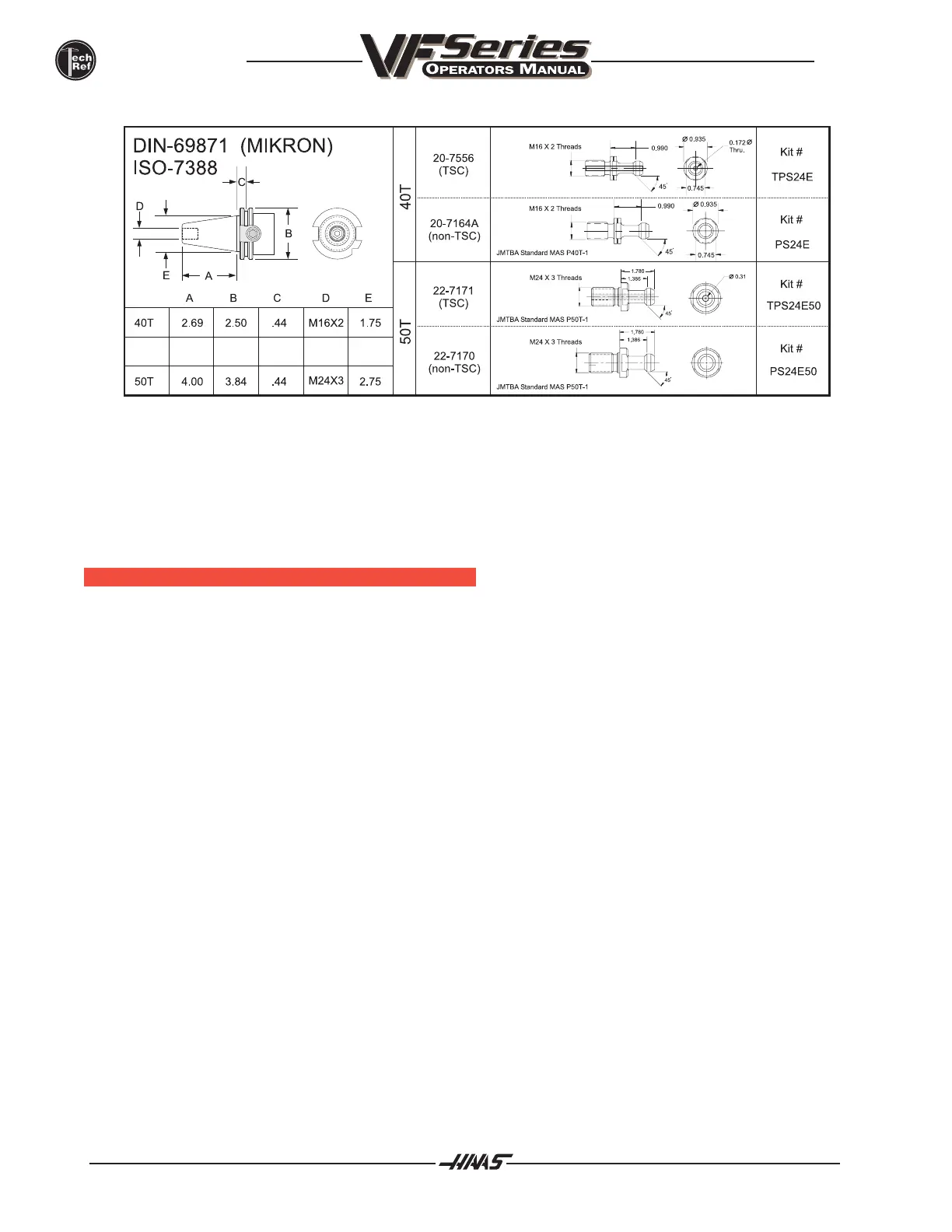

Tool holders and pull studs must be in good condition and tightened together with wrenches or they may stick
in the spindle taper. Clean the tool tapers with a lightly-oiled rag to leave a film to prevent rusting. Tools that
make a loud bang when being released indicate a problem and should be checked before serious damage to
the shuttle occurs. When the TOOL RELEASE button is pressed, the tool should be pushed out of the spindle
by a small amount (approximately .07"). This is an indication that the pull stud is correctly touching the release
mechanism.
TOOL C HANGER L UBRICATION
Place lubricating grease on the outside edge of the guide rails of the tool changer and run through all tools.

Haas VF Series Specifications

General

Machine Type	Vertical Machining Center
Control	Haas CNC Control
Z-Axis Travel	20-30 inches (varies by model)
Y-Axis Travel	16 - 30 inches (varies by model)
Spindle Motor	20-30 hp (depending on model)
Tool Capacity	20-40 tools (varies by model)
