PALLET S PECIFICATIONS
Weight 300 lbs.
Thickness 1
1
/
2
"
Bolt Holes 5 inch spacing, 1/2"-13 X 3/4 DP threads
CAUTION: Drilled holes in pallet should be less than 1" deep.

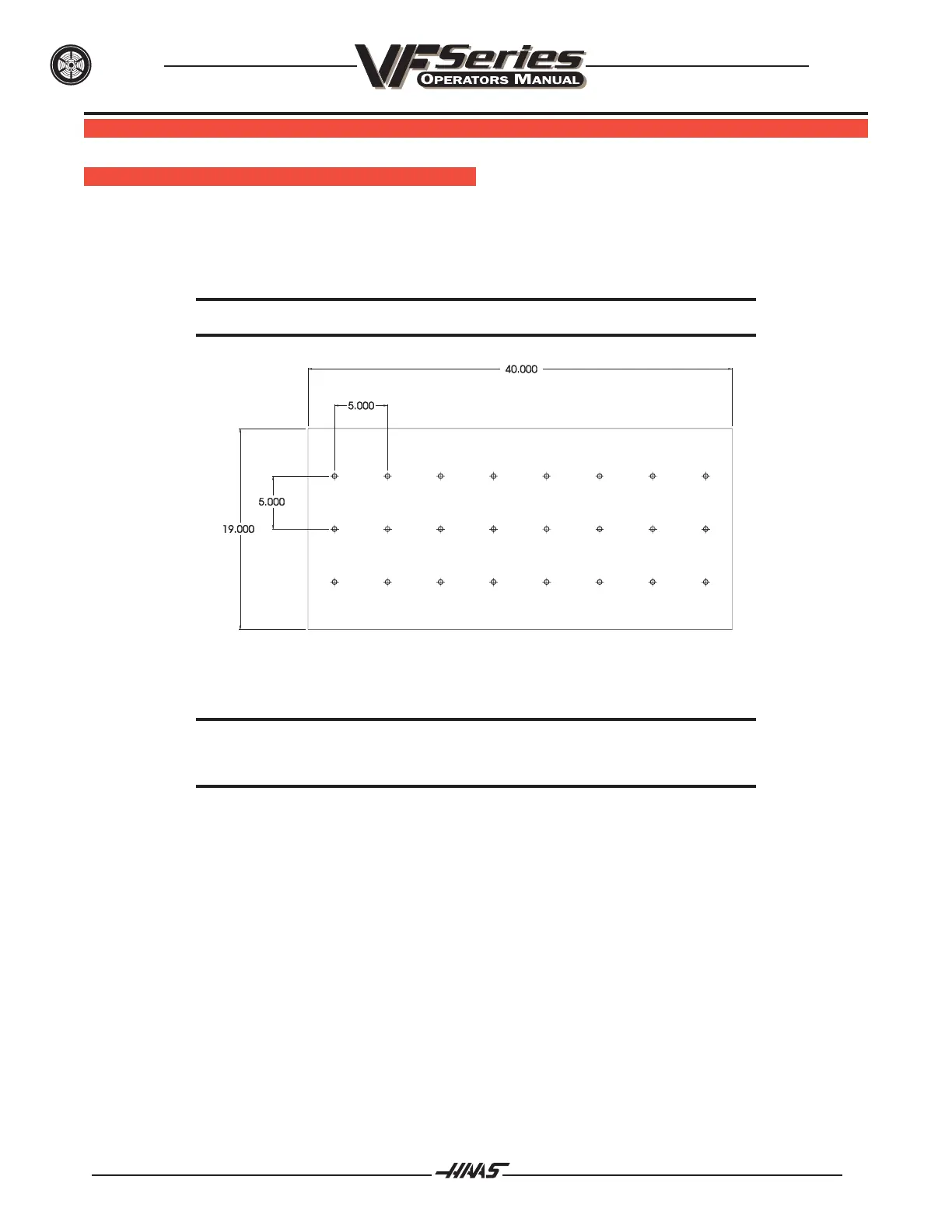

Figure 11.30 Pallet bolt hole pattern and spacing.
CAUTION! For pallet loads over 250 lbs, the load should be distributed evenly
around the center of the pallet to avoid tipping the pallet during
loading and unloading.

Haas VF Series Specifications

General

Machine Type	Vertical Machining Center
Control	Haas CNC Control
Z-Axis Travel	20-30 inches (varies by model)
Y-Axis Travel	16 - 30 inches (varies by model)
Spindle Motor	20-30 hp (depending on model)
Tool Capacity	20-40 tools (varies by model)
