Haas VF Series Operator's Manual

18
INSTALLATION
June 1999
96-8000
FINAL A NCHORING
CAUTION! The Initial Setup and Leveling Procedures must be completed before final
anchoring.
Once the epoxy has cured remove the studs, the floor plates, and the 5/8 nut and washers, from each hole.
Move the machine into position.
Screw the short threaded end of the studs into the coupling nuts, making sure the base casting does not
interfere with the studs.

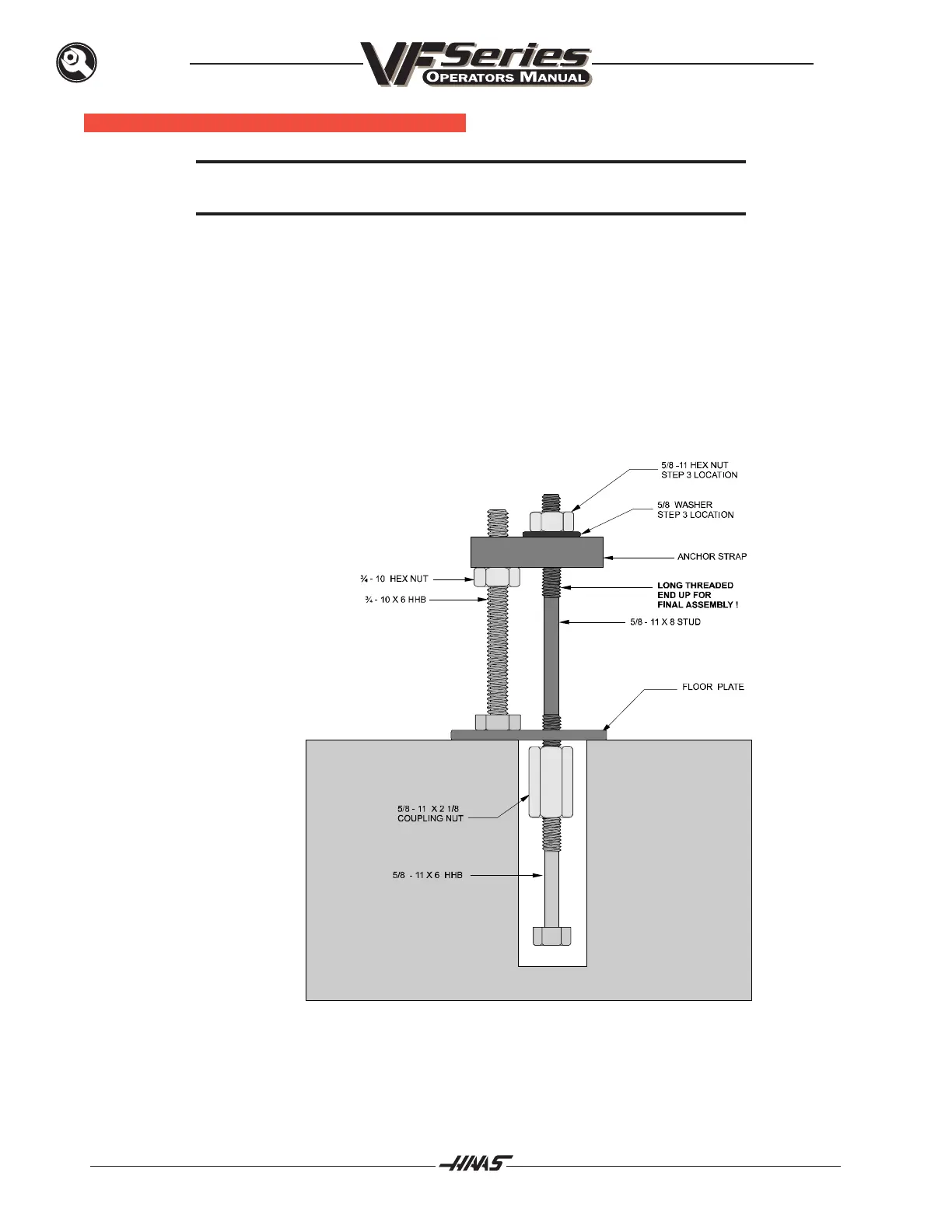

Assemble the anchors as shown in the Figure.
Final Anchor assembly

Haas VF Series Specifications

General

Machine Type	Vertical Machining Center
Control	Haas CNC Control
Z-Axis Travel	20-30 inches (varies by model)
Y-Axis Travel	16 - 30 inches (varies by model)
Spindle Motor	20-30 hp (depending on model)
Tool Capacity	20-40 tools (varies by model)
