Haas VF Series Operator's Manual

96-8000 73
MAINTENANCE
June 1999
2.1 TSC MAINTENANCE
 Check dirt indicator on 100 micron filter with TSC system running and no tool in the spindle. Change
element when the indicator reaches the red zone.
 On newer machines, clean pump intake filter when indicator is in red zone. Reset indicator with button.
All intake filters can be cleaned with a wire brush.
 After changing or cleaning filter elements, run TSC system with no tool in spindle for at least one
minute to prime system.

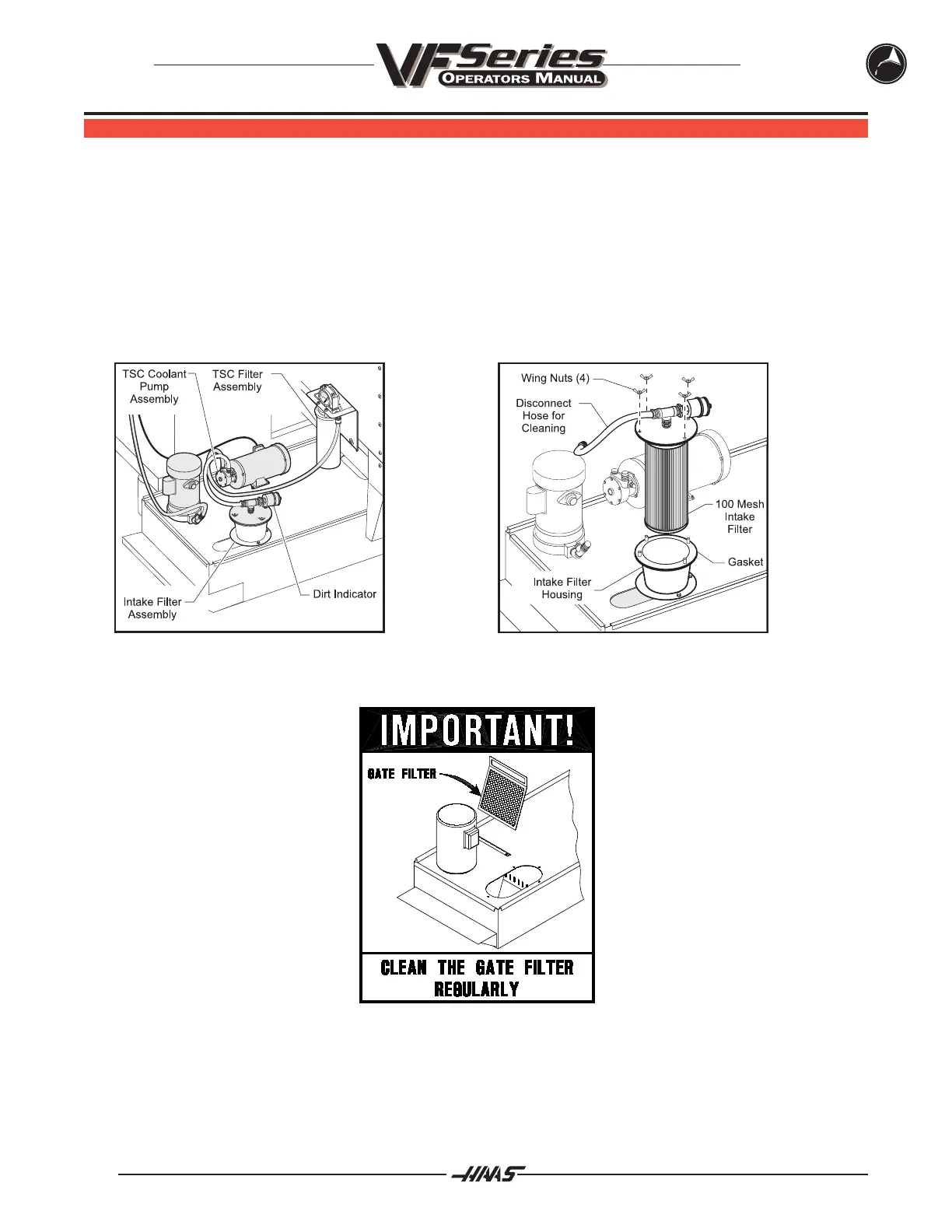

Figure 2-1. TSC coolant pump assembly. Figure 2-2. Cleaning the intake filter.
To clean the filter:
Turn off the coolant pump.
Remove the filter.
Clean and reinstall filter.

Haas VF Series Specifications

General

Machine Type	Vertical Machining Center
Control	Haas CNC Control
Z-Axis Travel	20-30 inches (varies by model)
Y-Axis Travel	16 - 30 inches (varies by model)
Spindle Motor	20-30 hp (depending on model)
Tool Capacity	20-40 tools (varies by model)
