TECHNICAL REFERENCE
June 1999
96-8000
12.4 CONTROL PANEL

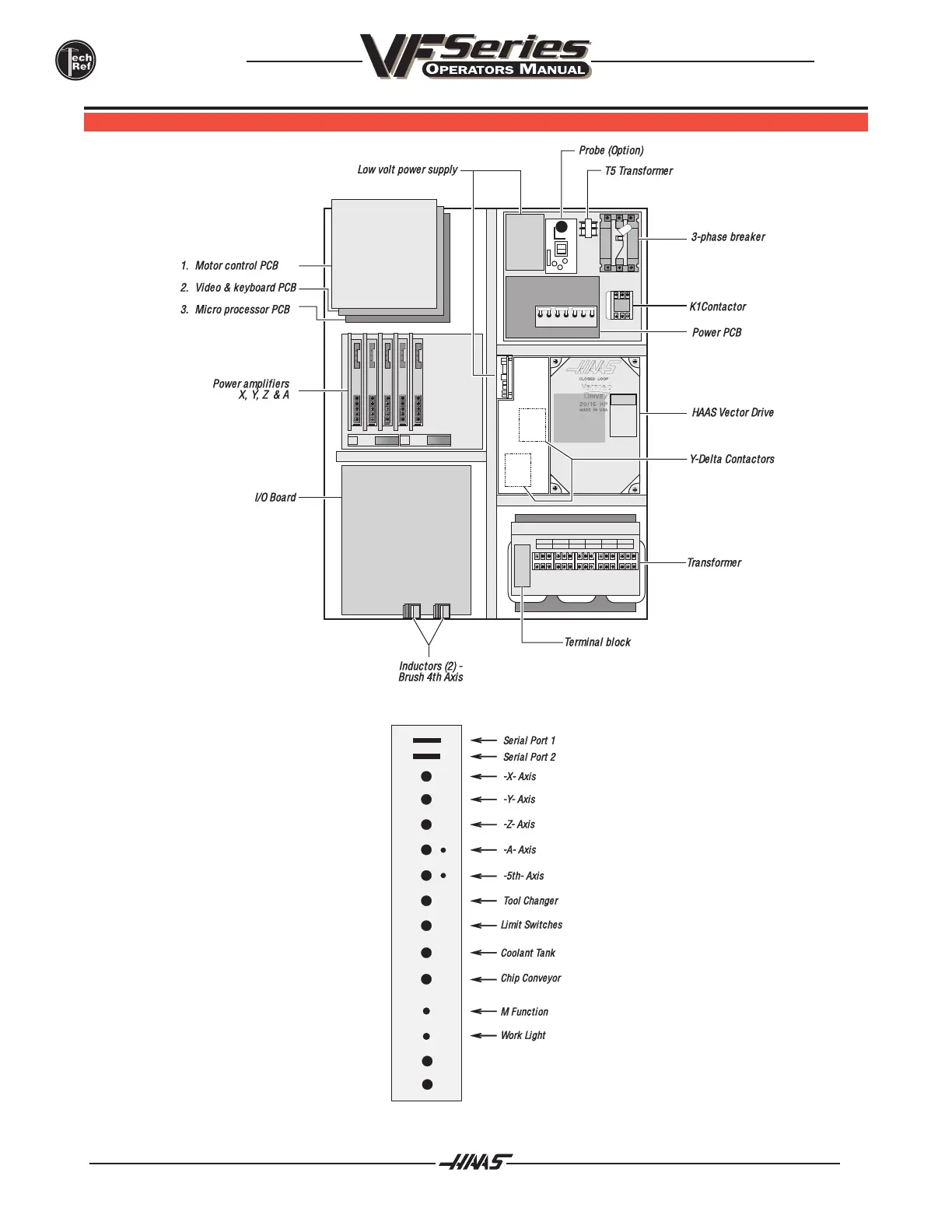

Control cabinet general overview.
Connectors on side of control cabinet.
