MAINTENANCE S CHEDULE
The following is a list of required regular maintenance for the HAAS Automatic Pallet Changer. These specifica-
tions must be followed in order to keep your machine in good working order and to protect your warranty.
INTERVAL MAINTENANCE PERFORMED
DAILY Clean chips, coolant, and other debris from the APC and receiver areas. Pay
special attention to the receiver clamping bars, and the pallet clamping rails
and wipers. Clean chip and coolant from receiver pallet clamped switch. Apply

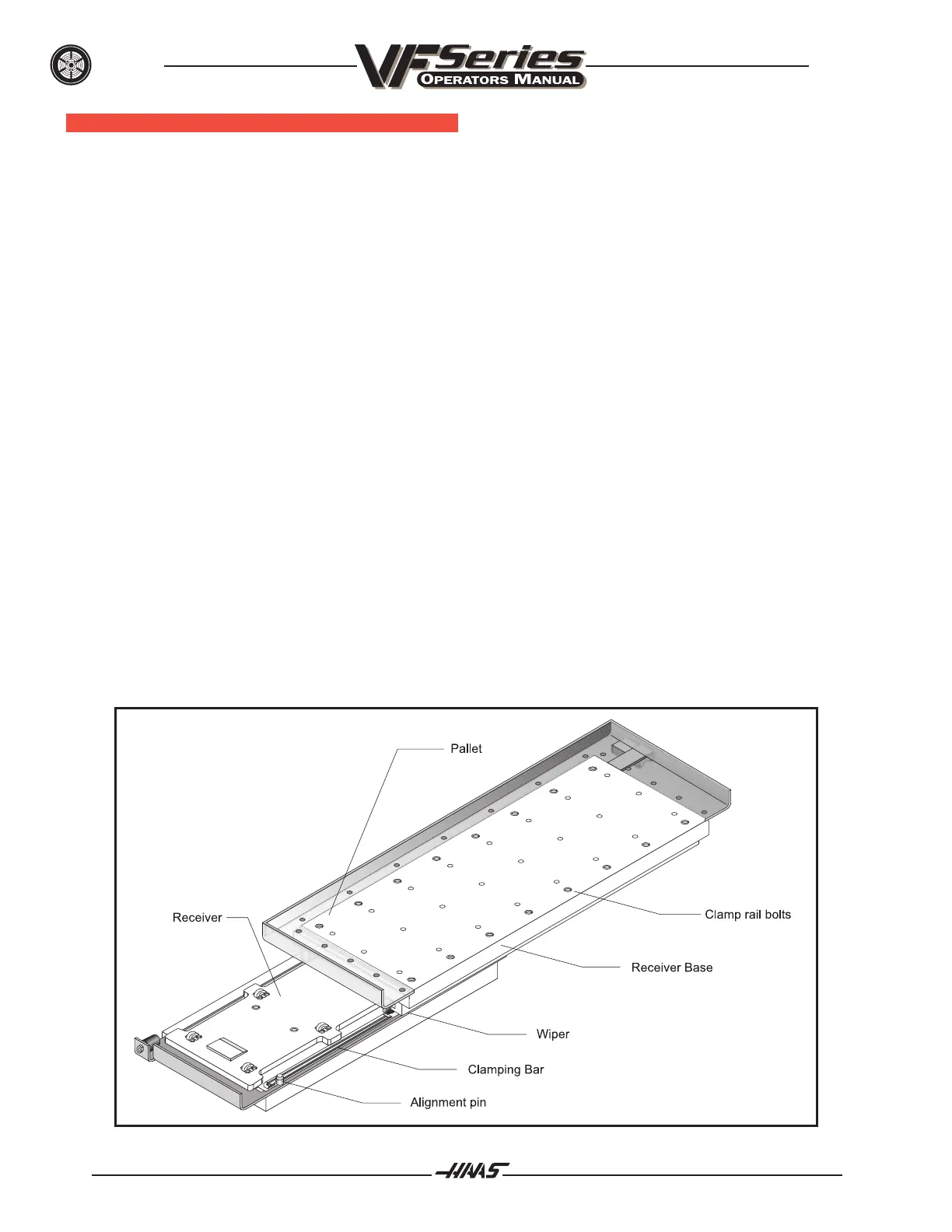

a light coat of grease and work into plunger. Do not over grease. Refer to the
Figure. Brush off the drive chain to clear chips.
Clean the two locating pins in the receiver base and the corresponding bushings in
the pallets. Apply a very light coat of general purpose grease to the pins and
bushings, if needed.
Clean excessive chips and coolant from pallet drive chain.
WEEKLY Remove the two 1/4" screws from the control panel and rotate to open position.
Clean chips and coolant from the drive sprocket and limit switch. Apply a light
coat of general purpose grease and work into the switch plungers. Check air
gauge/regulator at the VMC lube/air panel for 85 psi.
MONTHLY Check door for proper operation, both up and down. Clean and grease door side
guide rails as required.
