Haas VF Series Operator's Manual

166
G CODES
96-8000
June 1999
%

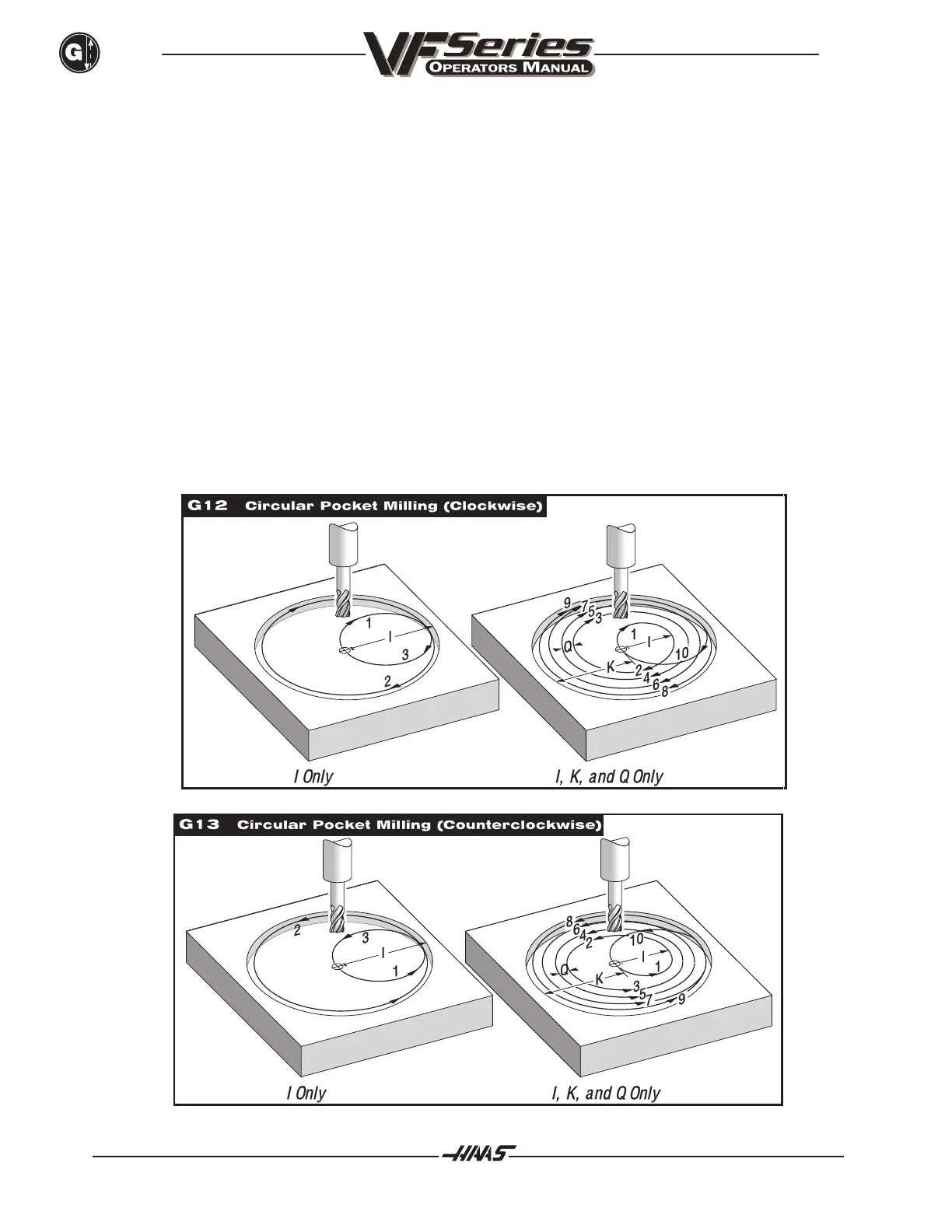

O0100 (SAMPLE G12 AND G13)
(OFFSET D01 SET TO APPROX. TOOL SIZE)
(TOOL 1 IS A 0.5 INCH DIAMETER END MILL)
T1 M06
G54 G00 G90 X0. Y0.
G43 Z.1 H01
S2000 M03
G42 D01 X-5. Y-5. (SET CUTTER COMP AND MOVE TO CIRCLE CENTER)
G12 I.4 K1.4 Q.4 F10. Z-.25 (REMOVE ALL MATERIAL IN CIRCLE TO 2.8 DIA)
G00 Z.1
G12 I1.5 F10. Z-.25 (FINISH CUT CIRCLE O.D. TO 3.0 DIA)
G41 D01 X-9. Y-5. (SET CUTTER COMP AND MOVE TO CIRCLE CENTER)
G13 I.4 K1.4 Q.4 F10. Z-.25 (REMOVE ALL MATERIAL IN CIRCLE TO 2.8 DIA)
G00 Z.1
G13 I1.5 F10. Z-.25 (FINISH CUT CIRCLE O.D. TO 3.0 DIA)
G00 Z.1
G28 Y0. G40 M30
%

Haas VF Series Specifications

General

Machine Type	Vertical Machining Center
Control	Haas CNC Control
Z-Axis Travel	20-30 inches (varies by model)
Y-Axis Travel	16 - 30 inches (varies by model)
Spindle Motor	20-30 hp (depending on model)
Tool Capacity	20-40 tools (varies by model)
