Haas VF Series Operator's Manual

96-8000 173
G CODES
June 1999
G47 P0 (ENGRAVE THIS)
will produce
ENGRAVE THIS
Note that P0 is used, instead of P1, for Literal String Engraving.
EXAMPLE

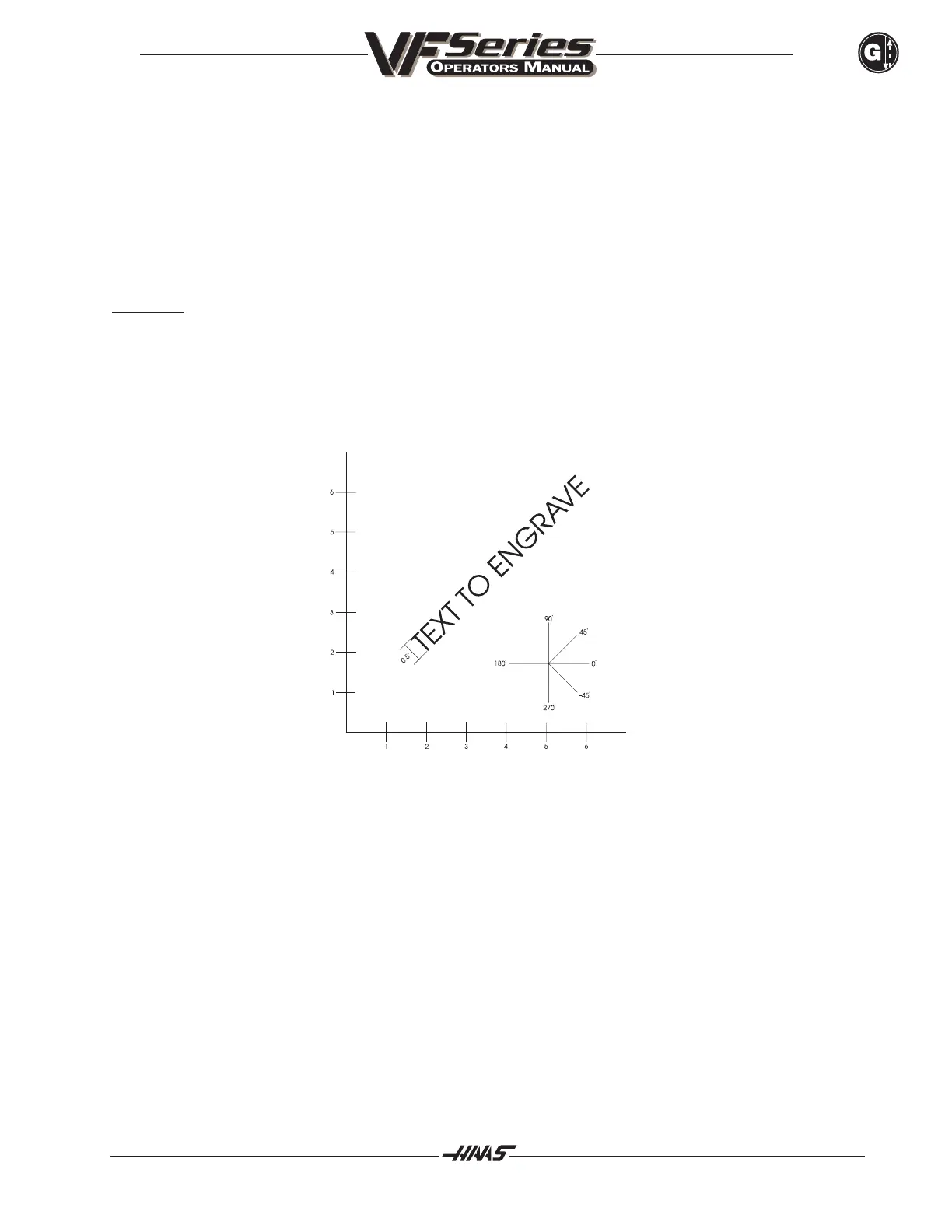

This example will create the figure shown.
G47 P0 X2.0 Y2.0 I45. J.5 R.05 Z-.005 F15.0 E10.0 (TEXT TO ENGRAVE)
In this example:
G47 P0 select Literal String Engraving
X2.0 Y2.0 select 2.0, 2.0 as the starting point for the text.
I45. places the text at a positive 45 degree angle
J.5 sets the text height to 0.5 inch
R.05 commands the cutter to retract to .05 inches (mm) above the cutting plane after engraving
Z-.005 selects a .005 inch (mm) deep cut
F15.0 selects an engraving feed rate of 15 units/min
E10.0 commands the cutter to plunge at a rate of 10 units/min
