Haas VF Series Operator's Manual

96-8000 177
G CODES
June 1999

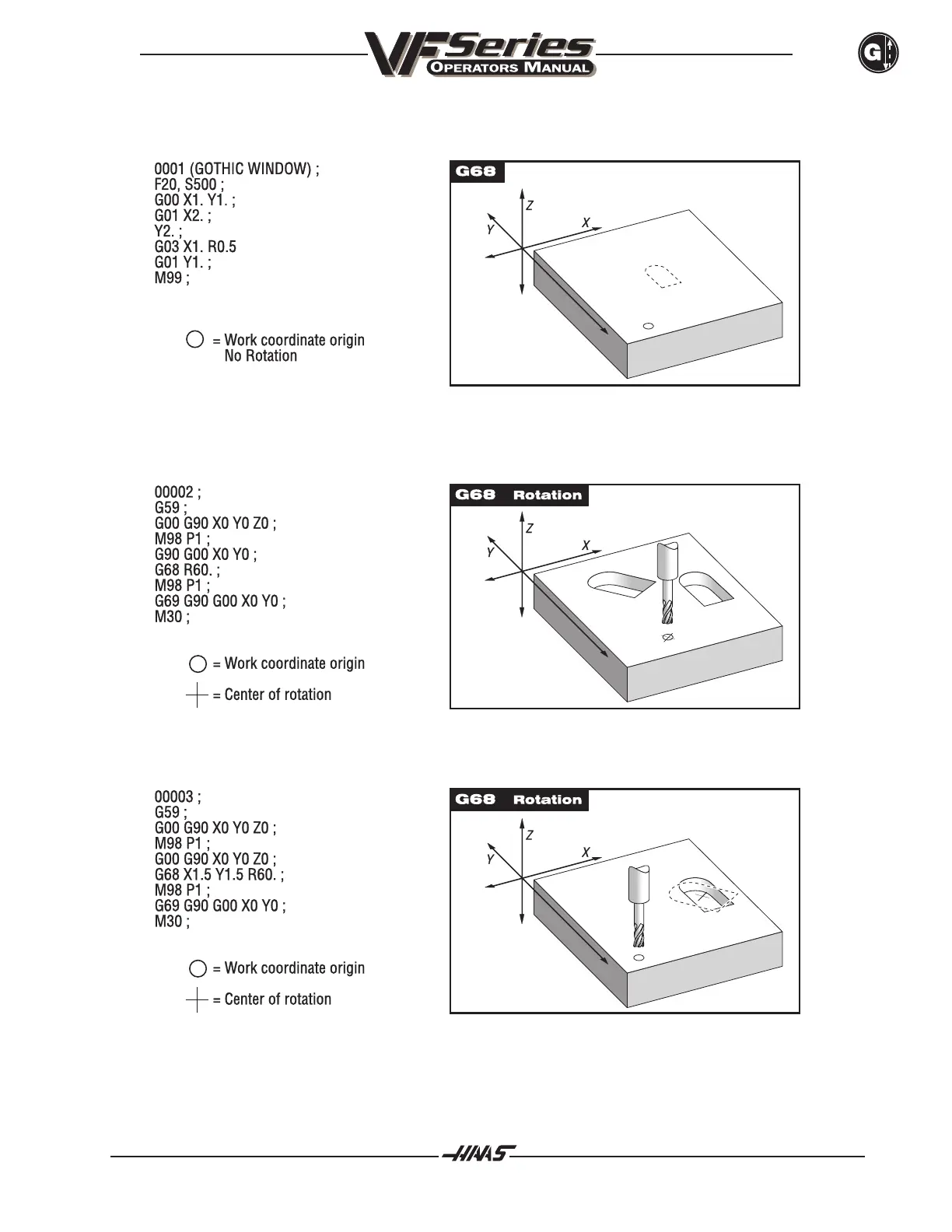

The following examples illustrate rotation using G68.
The first example illustrates how the control uses the current work coordinate location as a rotation center.
Here, it is X0 Y0 Z0.
The next example specifies the center of the window as the rotation center.
This example shows how the G91 mode can be used to rotate patterns about a center. This is often useful for
making parts that are symmetric about a regular polygon.

Haas VF Series Specifications

General

Machine Type	Vertical Machining Center
Control	Haas CNC Control
Z-Axis Travel	20-30 inches (varies by model)
Y-Axis Travel	16 - 30 inches (varies by model)
Spindle Motor	20-30 hp (depending on model)
Tool Capacity	20-40 tools (varies by model)
