96-8000 189
G CODES
June 1999
G80 Canned Cycle Cancel Group 09
This G code is modal in that it deactivates all canned cycles until a new one is selected. Note that use of G00
or G01 will also cancel a canned cycle.

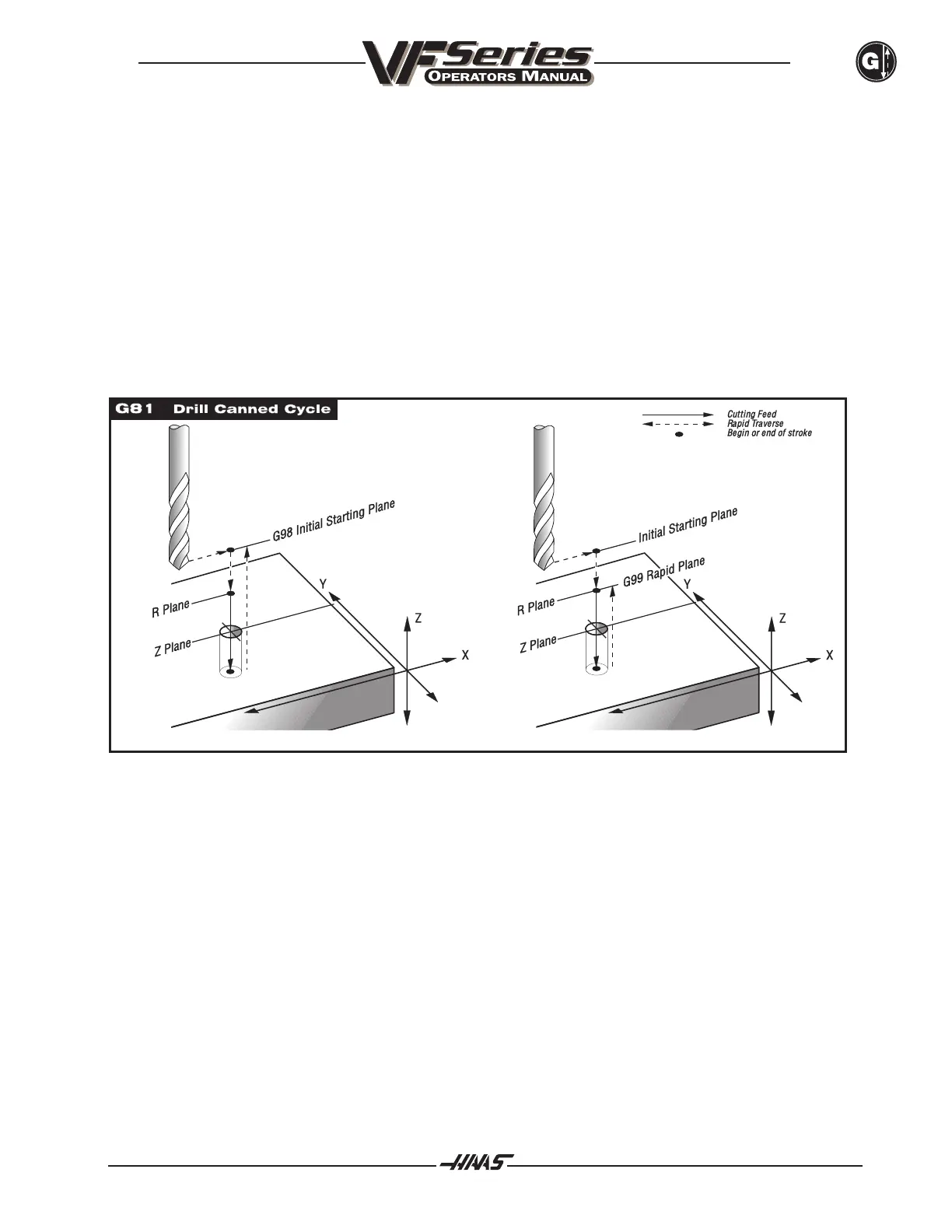

G81 Drill Canned Cycle Group 09
F Feed Rate in inches (mm) per minute
L Number of repeats
R Position of the R plane
X Optional X-axis motion command
Y Optional Y-axis motion command
Z Position of bottom of hole
This G code is modal in that once activated, every motion of X and/or Y will cause this canned cycle to be
executed until it is canceled or another canned cycle is selected.
