Haas VF Series Operator's Manual

96-8000 197
G CODES
June 1999

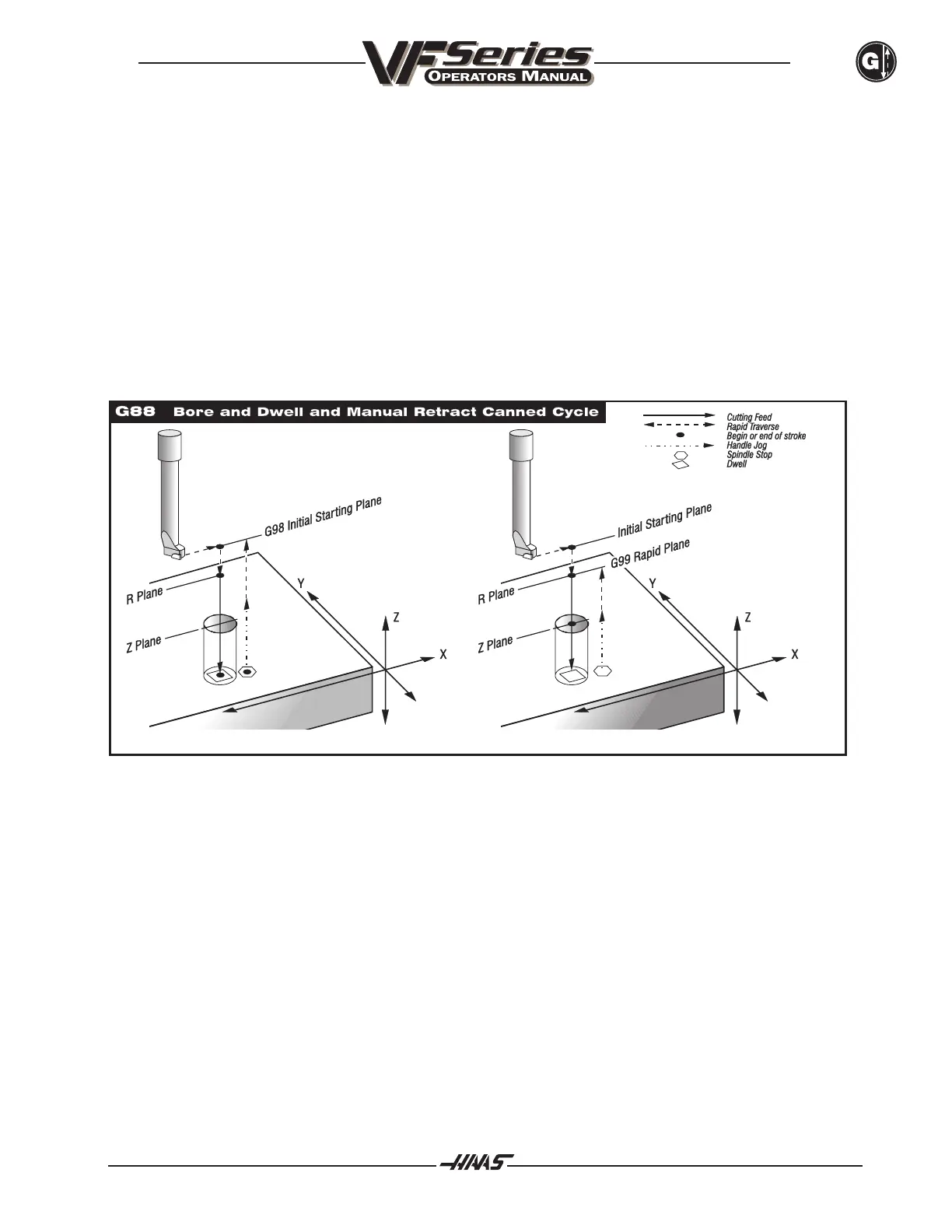

G88 Bore and Dwell and Manual Retract Canned Cycle Group 09
F Feed Rate in inches (mm) per minute
L Number of repeats
P The dwell time at the bottom of the hole
R Position of the R plane
X Optional X-axis motion command
Y Optional Y-axis motion command
Z Position of bottom of hole
This G code is modal in that once activated, every motion of X and/or Y will cause this canned cycle to be
executed until it is canceled or another canned cycle is selected. After manual jog press cycle start to resume
program.

Haas VF Series Specifications

General

Machine Type	Vertical Machining Center
Control	Haas CNC Control
Z-Axis Travel	20-30 inches (varies by model)
Y-Axis Travel	16 - 30 inches (varies by model)
Spindle Motor	20-30 hp (depending on model)
Tool Capacity	20-40 tools (varies by model)
