Haas VF Series Operator's Manual

PROGRAMMING EXAMPLES
22596-8000
June 1999

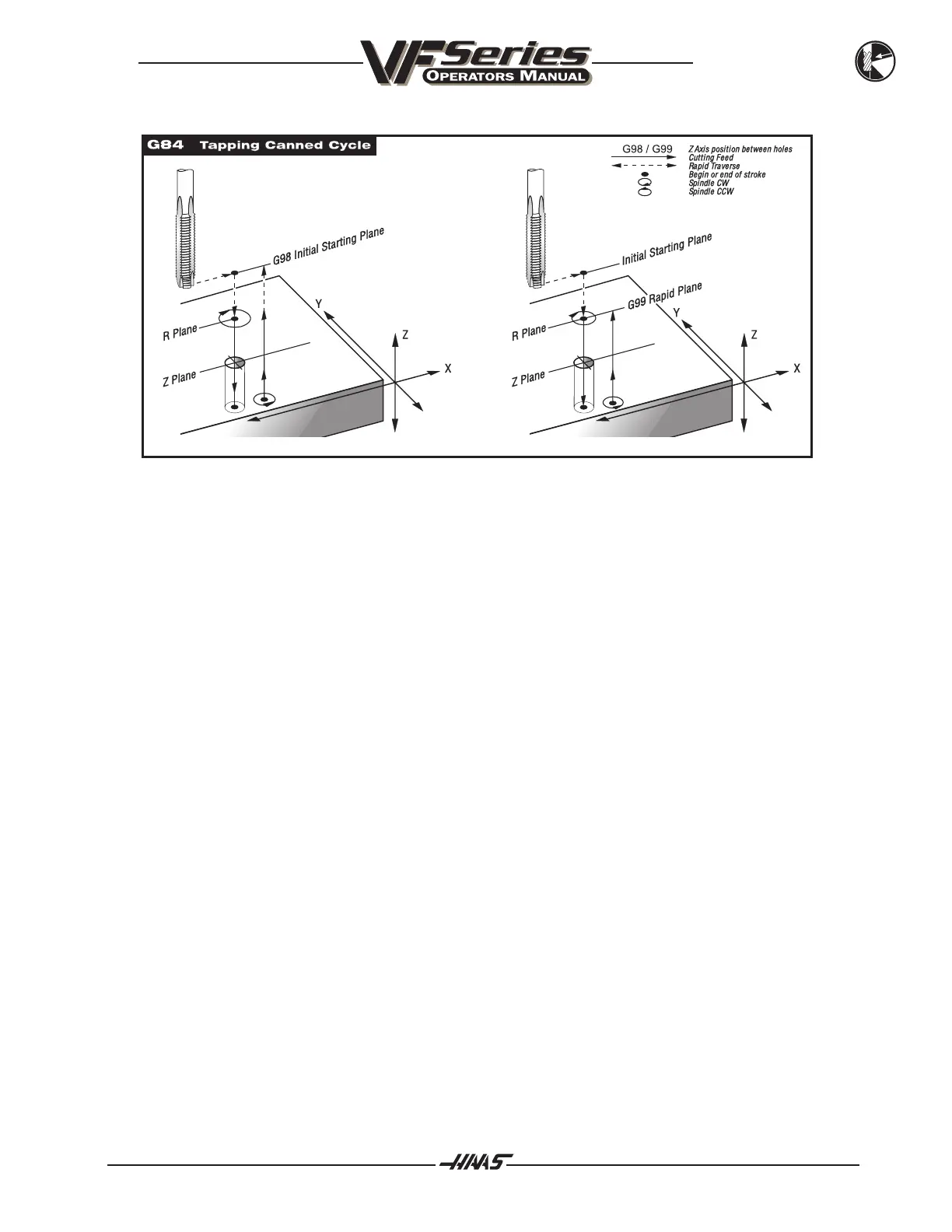

G 84 Tapping Canned Cycle Example
T3 M06 (Tool #3 is a 3/8-16 tap)
G00 G90 G54 X.565 Y-1.875 S900 M03
G43 H03 Z.2 M08
G84 Z-.600 F56.25 R.2 >(900 RPM divided by 16TPI = 56.25 IPM)
X1.115 Y-2.750
X3.365 Y-2.875
X4.188 Y-3.313
X5.0 Y-4.0
G00 G80 Z1.0 M09
G28 G91 Y0 Z0
M30
%

Haas VF Series Specifications

General

Machine Type	Vertical Machining Center
Control	Haas CNC Control
Z-Axis Travel	20-30 inches (varies by model)
Y-Axis Travel	16 - 30 inches (varies by model)
Spindle Motor	20-30 hp (depending on model)
Tool Capacity	20-40 tools (varies by model)
