PROGRAMMING EXAMPLES
23396-8000
June 1999
DO THE FOLLOWING EXERCISE FOR PRACTICE.

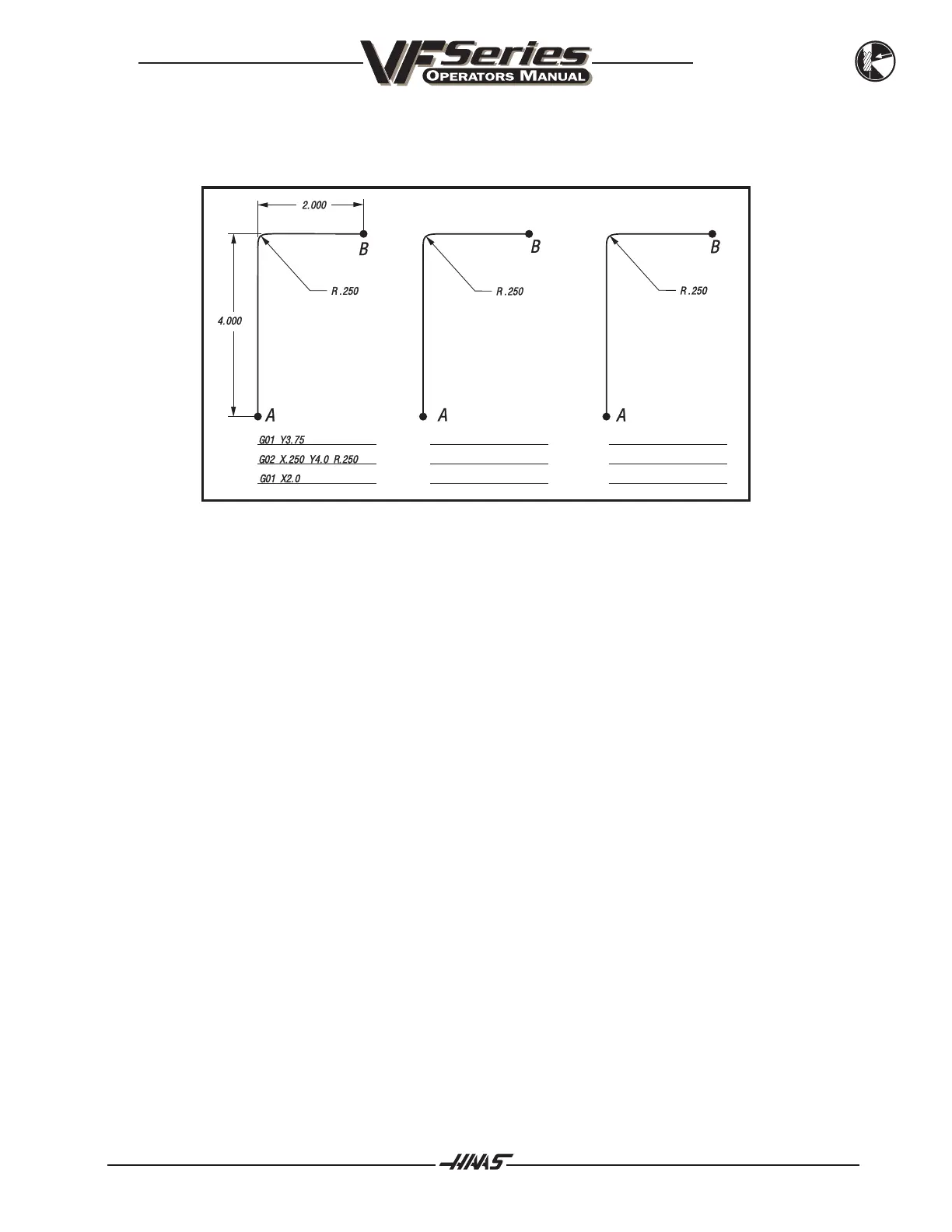

WRITE THE CODE NECESSARY TO GET FROM POINT A TO POINT B
FIRST MOVE: Overall dimension and subtract the given radius.
SECOND MOVE: Add radius to current X and Y values. Always program the ending points in circular
interpolation.
THIRD MOVE: Linear move to the next point.

Haas VF Series Specifications

General

Machine Type	Vertical Machining Center
Control	Haas CNC Control
Z-Axis Travel	20-30 inches (varies by model)
Y-Axis Travel	16 - 30 inches (varies by model)
Spindle Motor	20-30 hp (depending on model)
Tool Capacity	20-40 tools (varies by model)
