Haas VF Series Operator's Manual

PROGRAMMING EXAMPLES
24396-8000
June 1999

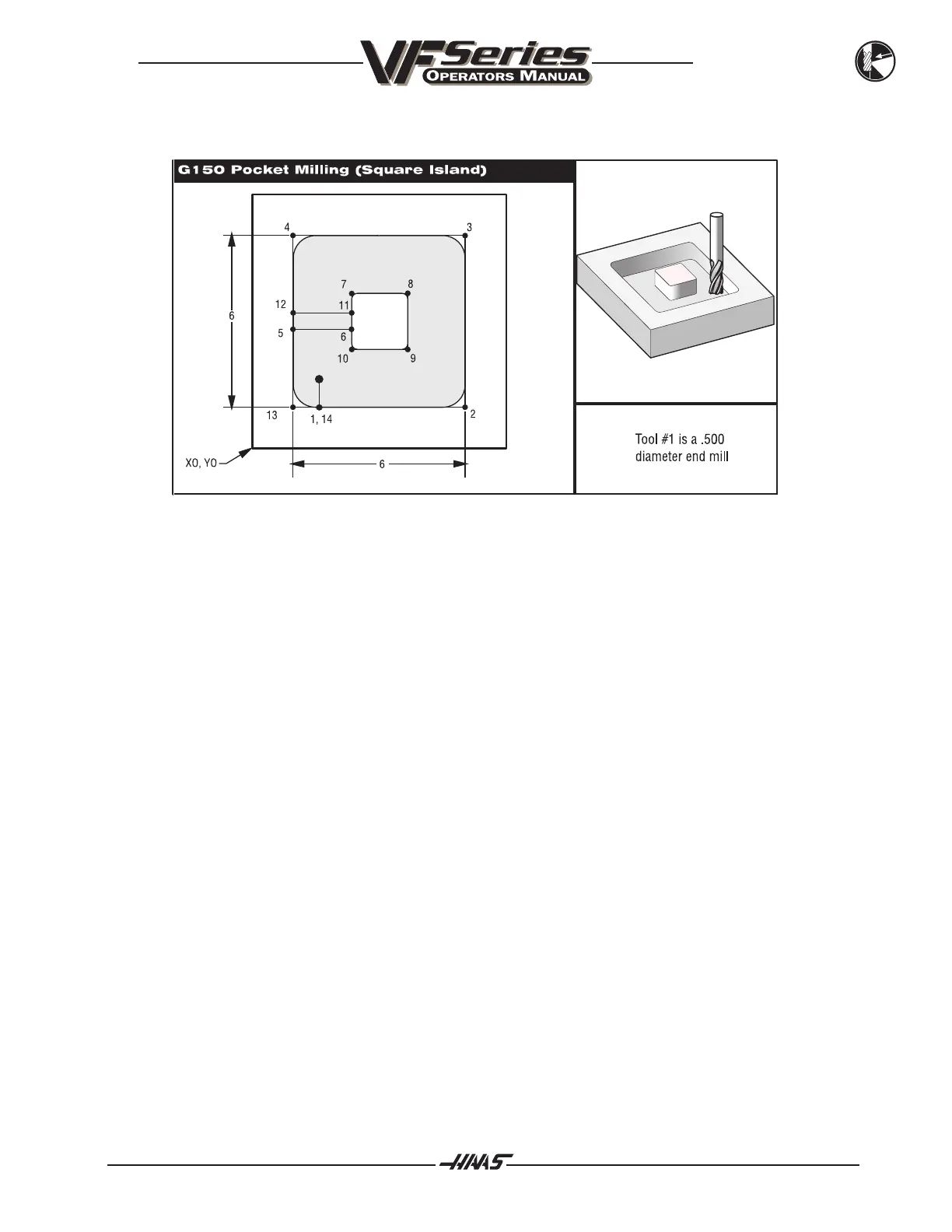

SQUARE ISLAND:
Square island programming exercise using G150.
%
O1000
T1 M06 (Tool is a .500 diameter end mill)
G00 G90 G54 S2500 M03
G43 H01 Z.1 M08
G01 Z0 F10.
G150 X1.0 Y1.0 Z-.5 F15. R.1 Q.25 I.4 K.O1 P500 D01 G41
G00 Z1.0 M09
G40 G28 G91 Y0 Z0
M30
%
%
O0500
G01 X0 Y0
X6.0
Y6.0
X0
Y3.0
X2.0
Y4.0
X4.0
Y2.0
X2.0
Y3.0
X0
Y0
M99
%

Haas VF Series Specifications

General

Machine Type	Vertical Machining Center
Control	Haas CNC Control
Z-Axis Travel	20-30 inches (varies by model)
Y-Axis Travel	16 - 30 inches (varies by model)
Spindle Motor	20-30 hp (depending on model)
Tool Capacity	20-40 tools (varies by model)
