INSTALLATION
June 1999
96-8000
NOTE: If any alarms are present and cannot be cleared with the RESET button, press
and release the ALARM MESGS button for more information on the alarms. If
you are unable to clear the alarms, write down the alarm numbers and call the
factory.
6. Press and release the HANDLE JOG button and check the screen for the îš“JOGGING Z AXIS
HANDLE .001îš” message. Verify that the head will travel SLOWLY (not more than 0.001 inch per
impulse îš— the ".001" part of the Z-axis message). If the message does not read .001, press and
release the .001 button next to the HANDLE JOG button.
NOTE: The upper numbers on the buttons next to HANDLE JOG are for the jog handle
use, and the lower numbers the jog speed in inches per minute when using
the JOG buttons on the keypad. If the "JOGGING__" message shows the X- or
Y-axis instead of Z, press and release the +Z button.

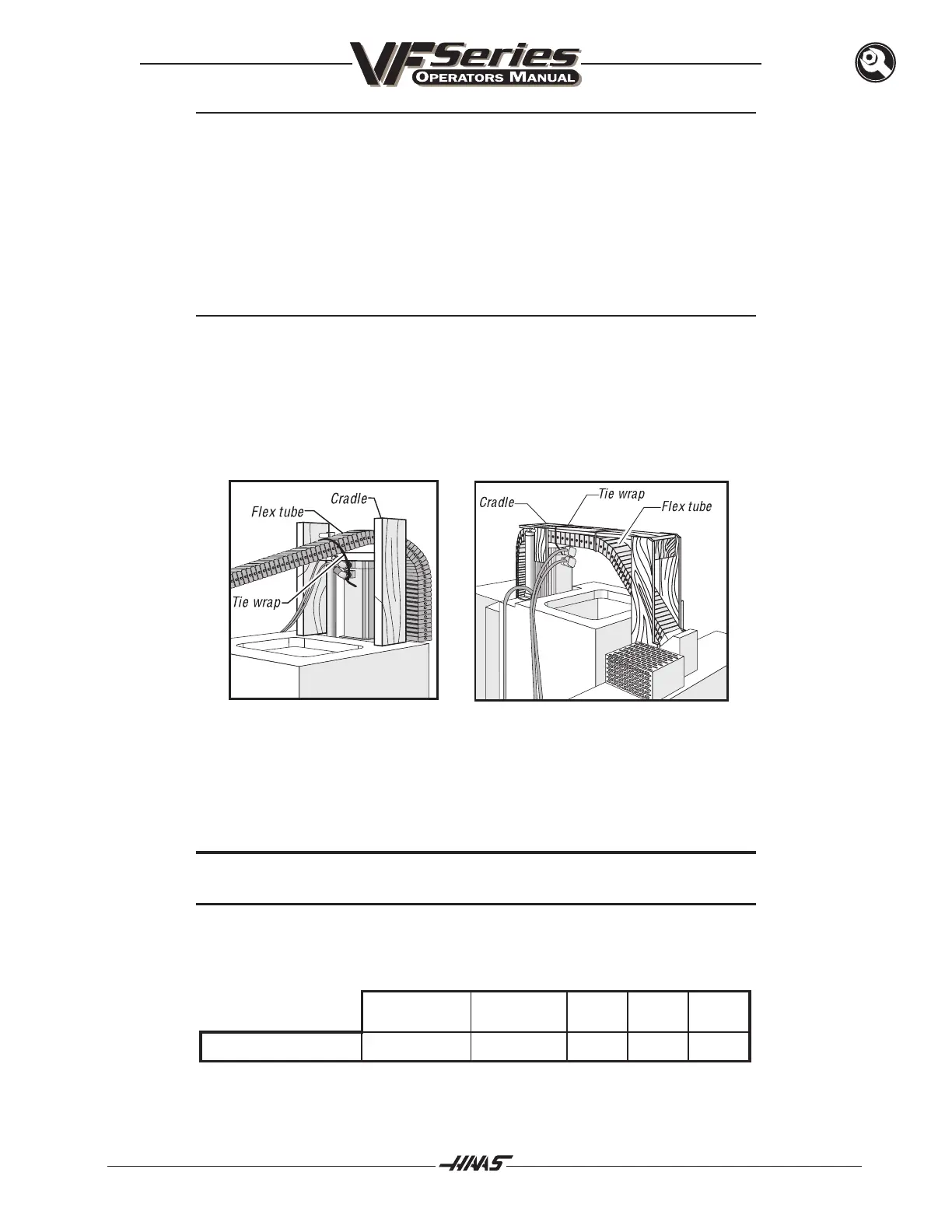

7. For the VF-0/1/2/3/4, jog the Z-axis to the top of it's travel, and remove the flex tube cradle (as
shown).
8. Once you are certain that the Z-axis is working correctly (that it operates smoothly and there are
no strange noises, etc.), make sure that all alarms are clear îš— check for the îš“ALARMîš” message at
the lower right of the screen. Next, close the doors and press and release the ZERO RETURN
button followed by the AUTO ALL AXES button. The Z-axis moves up slowly. Then, after it has
reached its home position, the X- and Y-axes move to their home positions.
CAUTION! If you hear any strange noises, hit the EMERGENCY STOP button immediately
and call the factory.
IMPORTANT!! To verify correct hydraulic counterbalance pressure, jog the head to the top of its travel and
check pressure with those printed below and on the tank.
01/8/7/6/2/1/O-FV
01/7/6-FV
eldnipST05/w
4/3-FV
05-FV
T04/w
05-FV
T05/w
levartfopottaenihcaMisp057isp0511isp0511isp059isp0011
