Haas VF Series Operator's Manual

Assembly Drawings
June 1999
503
96-8000
TITLE
CAROUSEL SUPPORT PLATE
CAROUSEL, 32 TOOL
KEY, EXTRACTOR
EXTRACTOR, BT-40 TOOL CHN
BUSHING, EXTRACTOR
COMPRESSION SPRING
SPRING, EXTRACTOR
SLIDING PANEL
32 TOOL SLIDING PANEL COVER
NUMBER RING, 32 T/C
SHCS, 5/16-18 X 1"
SHCS, 10-32 x 1/4"
SHCS, 1/4-20 x 3/4"
FHCS, 10-32 x 1/4"
WASHER, BLK HARD 1/4" x 1/8" THK.
SPRING PIN, 3/8" x 1"
PART NO.
20-9193
20-9324
22-7067F
22-7166A
22-9256
24-2010A
24-9257
25-7249
25-9328
25-9333
40-1500
40-16095
40-1697
40-1704
45-0045
48-0004
QTY
1
1
32
64
64
32
32
32
32
1
8
64
64
64
64
32
IT
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
DESIGNATES PARTS AVAILABLE FROM HAAS SERVICE DEPT.
* DESIGNATES REMOVED PART
12
6
1
10
14
11
2
9 7
16
3
13 15
4
5
8

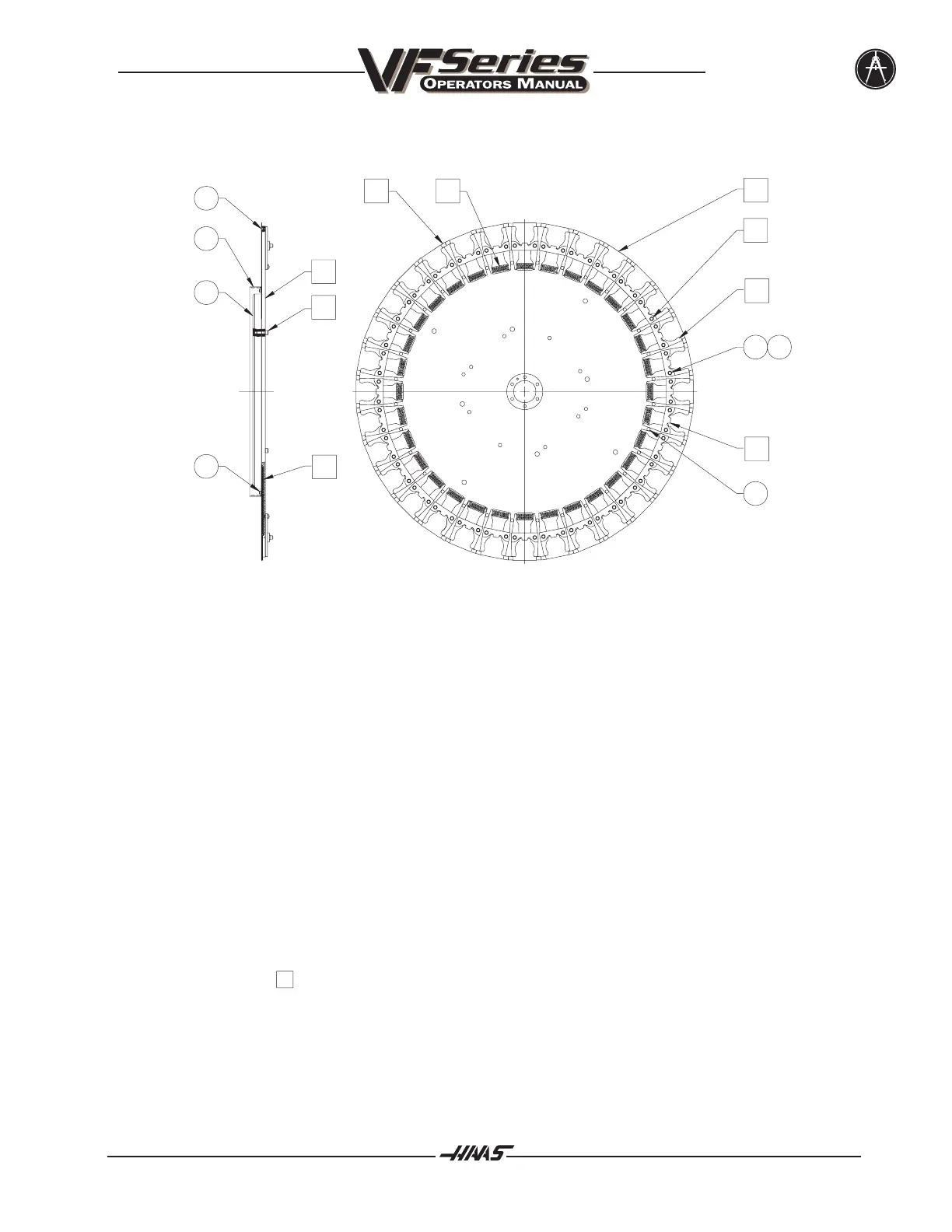

32 Tool Carousel Assembly (BT) VF 3-10
