INSTALLATION
June 1999
96-8000
SECTION 1: INSTALLING THE LIFT KIT
VF- 0 / 1 / 2

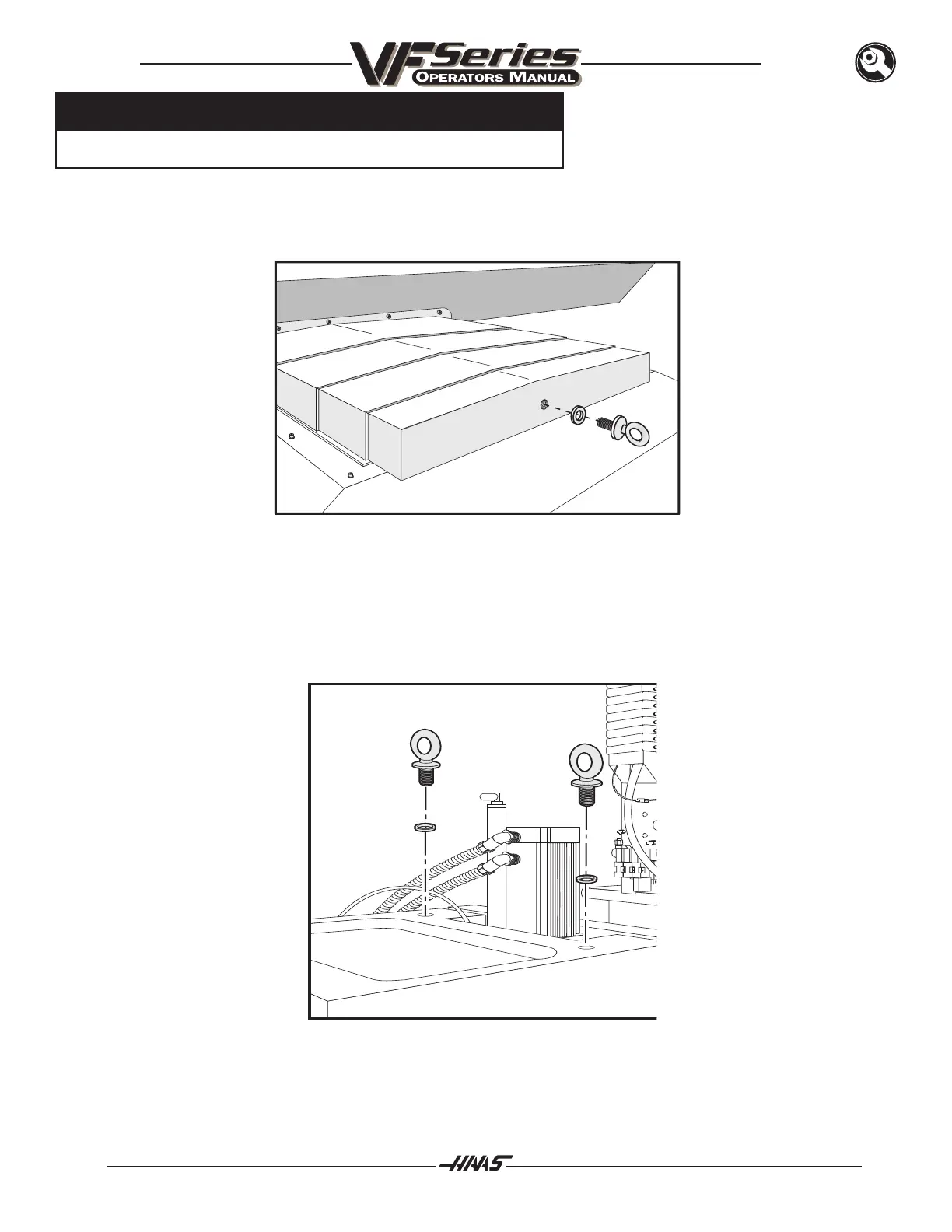

1. Place a washer on the 5/8"-11 X 1-1/4" eye bolt and mount it to the front Y-axis way cover, as
shown below. Hand tighten and orient the bolt vertically as shown.
Fig. 1-1 Eyebolt mounting location for VF-0, VF-1, and VF-2.
2. Place a washer on each of the 3/4-10 x 1
3
/
16
" eyebolts and mount to the top of the column as
shown below. Tighten securely.
Fig. 1-2 VF-0/1/2 eyebolt locations.

Haas VF Series Specifications

General

Machine Type	Vertical Machining Center
Control	Haas CNC Control
Z-Axis Travel	20-30 inches (varies by model)
Y-Axis Travel	16 - 30 inches (varies by model)
Spindle Motor	20-30 hp (depending on model)
Tool Capacity	20-40 tools (varies by model)
