198 THE HASSELBLAD MANUAL

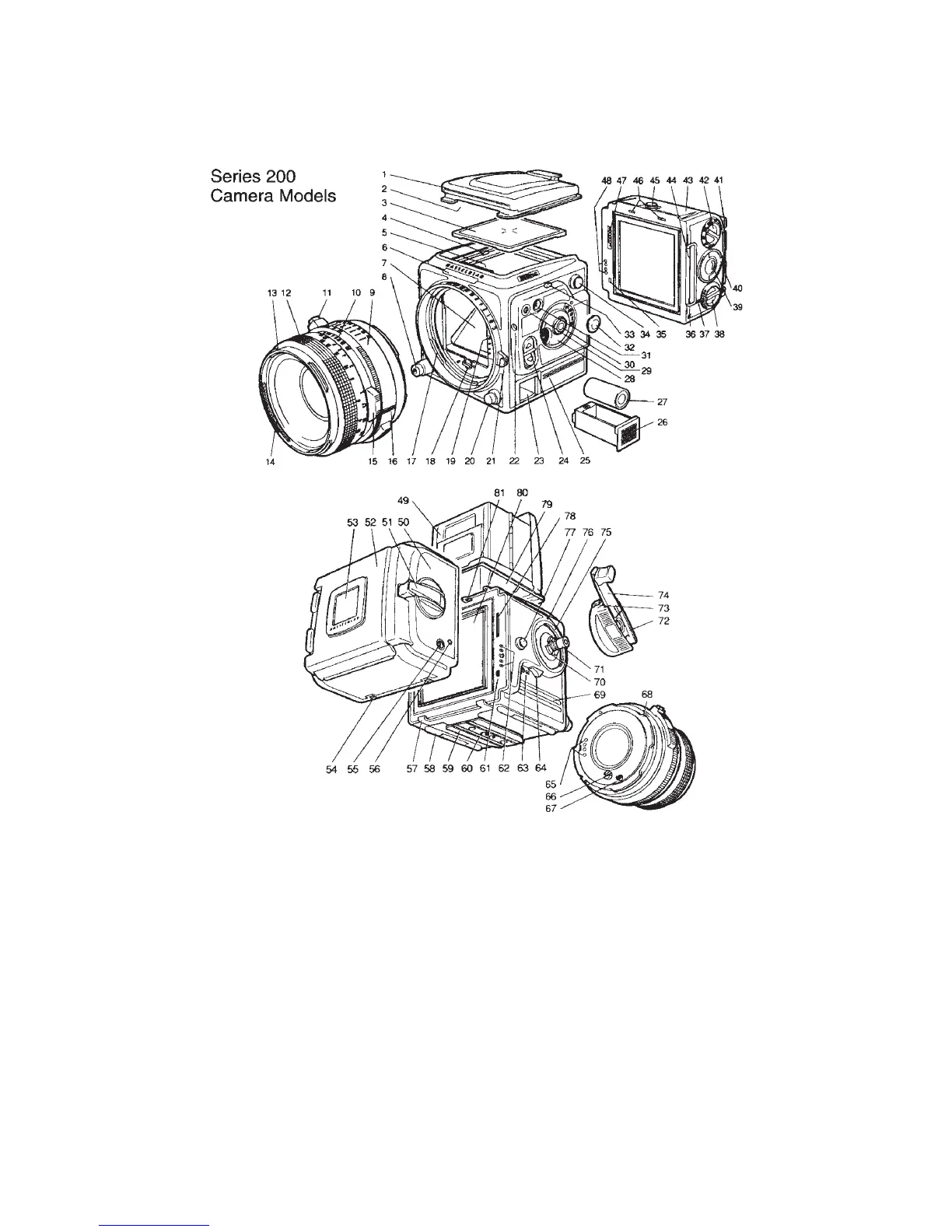

Figure 12-1 Main components and operating controls of 200 cameras with built-in metering
system: (1) focusing hood cover, (2) cut-out in viewfi nder for fi nder display, (3) focusing
screen, (4) focusing screen catch, (5) liquid crystal display, (6) illumination window, (7)
mirror, (8) shutter release, (16) system mark, (17) lens mount, (18) drive shaft, (19) electronic
connections, (20) lens lock, (21) shutter speed ring (not on 202 model), (22) self-timer
indicator, (23) battery compartment, (24) adjustment controls, (25) grip cushion, (26) battery
case, (27) battery, (28) mode selector dial, (29) PC socket, (30_ AE lock, (31) dedicated fl ash
connection, (32) fl ash socket cover, (33) display illumination button, (34) strap lug, (58)
camera support, (59) quick coupling slide, (60) tripod thread, (61) magazine indicator trigger,
(62) electronic connections, (63) self-timer symbol, (64) pre-release/self-timer control, (65)
electronic connections, (66) drive shaft, (67) drive shaft catch, (68) lens bayonet, (69) grip
cushion, (70) winder coupling, (71) double-exposure control, (72) winding crank hub, (73)
crank catch, (74) winding crank, (75) winder bayonet mount, (76) winding crank index, (77)
strap lug, (78) magazine driving gear, and (80) shutter curtain.
