302 THE HASSELBLAD MANUAL
DEPTH-OF-FIELD
Depth-of-Field and Focal Length of the Lens
“Wide-angle lenses have more depth-of-fi eld than telephotos” is a common statement in the
photographic fi eld. The statement is correct, but only if the different focal length lenses are

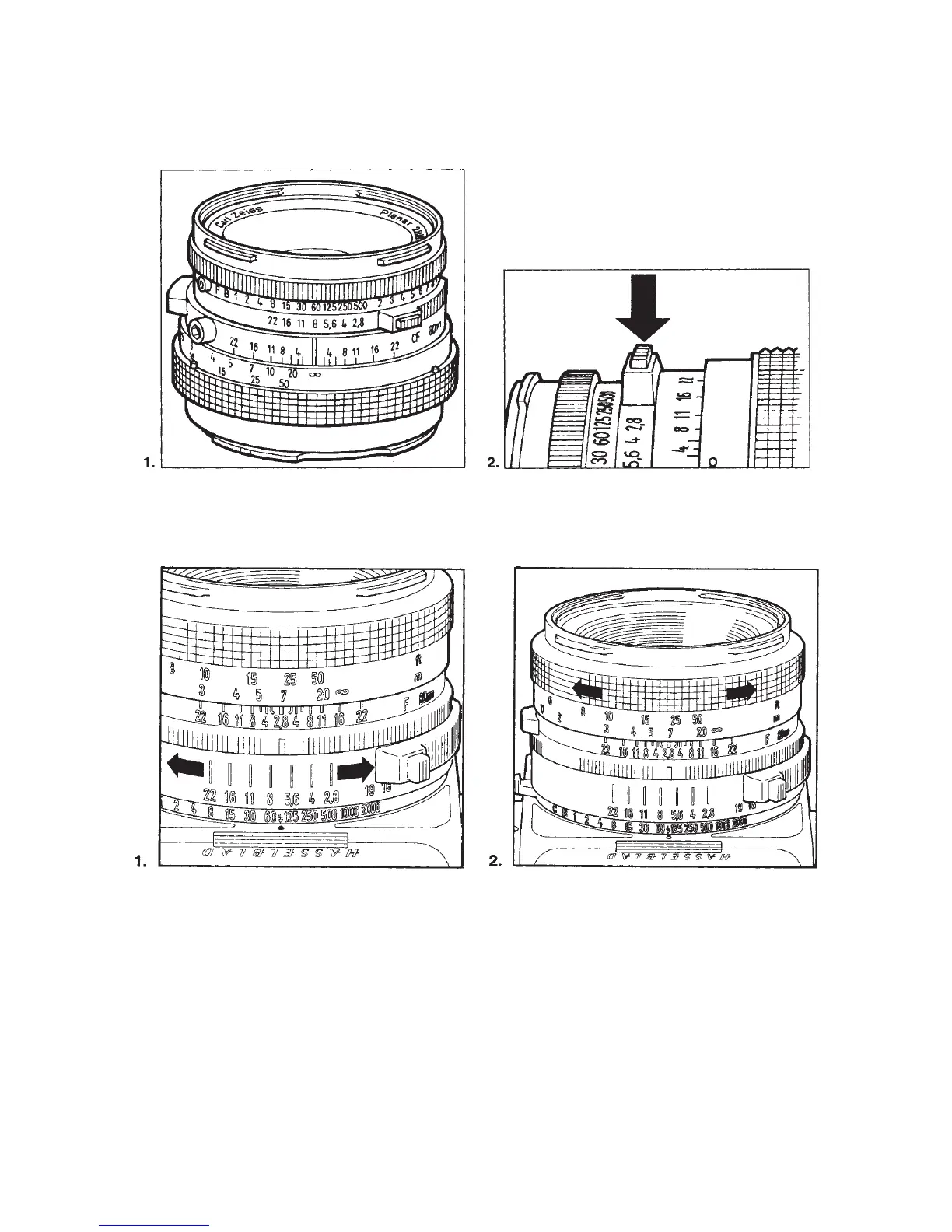

Figure 16-3 Aperture/shutter speed lock. On CF, CFE, CB, and CFi lenses the shutter speed and
EV values are set by turning the shutter speed ring. The aperture is set by turning the aperture
ring (1). Interlock aperture and shutter speed rings by pressing the interlock button (2).
Figure 16-4 Aperture/shutter speed lock on lenses without shutters. On FE, TCC, and F lenses
the shutter speed (
1
/
90
in this illustration) is set on the camera (except on 202FA). The
aperture is set using the rear ring, which has grip sections (1). The focusing ring is at the
front (2).
