FlexBody, ArcBody, and PC Mutar for Digital Imaging and Film Photography 219

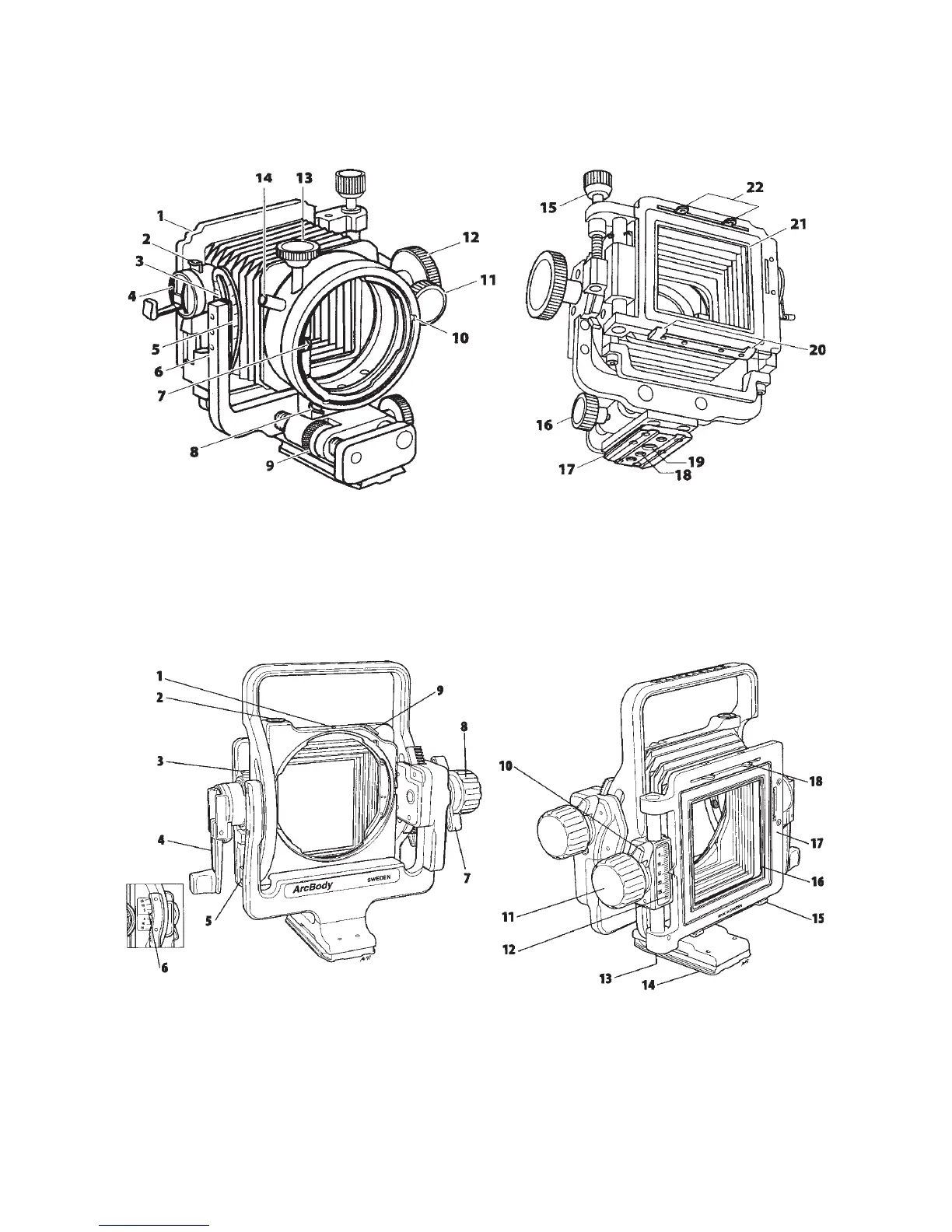

Figure 13-2 The important FlexBody operating controls: (1) rear standard, (2) winding crank
lock, (3) tilt scale, (4) winding crank, (5) tilt index, (6) front standard, (7) drive shaft, (8) lens
release lever, (9) close-up extension wheel, (10) lens marking, (11) tilt control lock, (12) tilt
control, (13) shutter cocking knob, (14) cable release socket, (15) shift control knob, (16)
locking knob for close-up extension, (17) quick coupling plate with ¼-inch and
3
/
8
-inch tripod
thread (18, 19), (20) magazine support, (21) rear frame, and (22) magazine hooks.
Figure 13-3 The ArcBody operating controls: (1) lens alignment index, (2) spirit level, (3) lock
for fi lm winding crank, (4) fi lm winding crank, (5) spirit level, (6) tilt scale, (7) lock for tilt
control, (8) tilt control, (9) lens release catch, (10) lock for shift control, (11) shift control,
(12) shift scale, (13) spirit level, (14) quick coupling plate, (15) magazine supports, (16) stray
light mask, (17) rear standard, and (18) magazine hooks.
