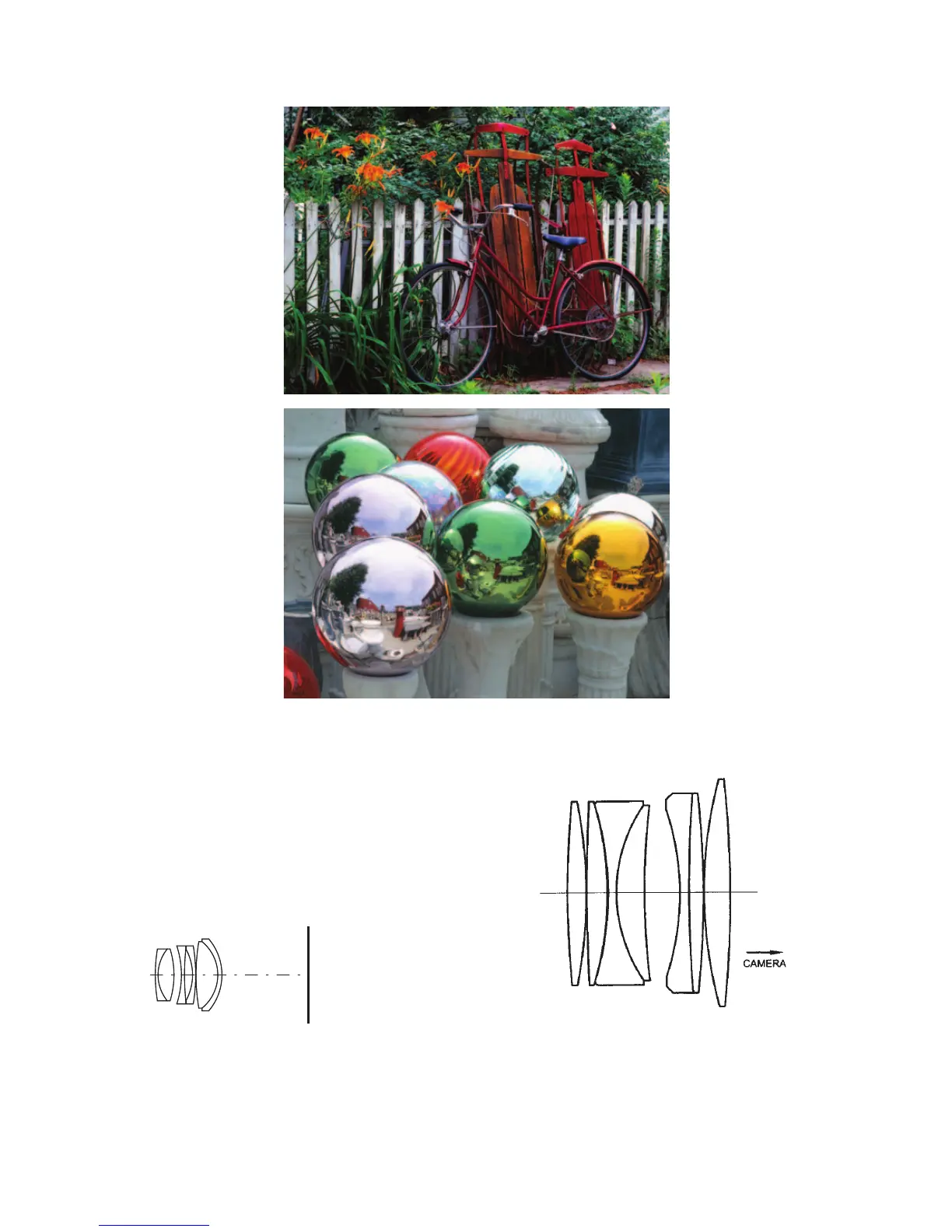

Figure 14-21 CF lens adapter. Two pictures taken with 150 mm Sonnar lens and CF lens adapter
on a Hasselblad H camera. (Photos by Ernst Wildi.)
Figure 14-22 H system converter design. The
1.7 teleconverter in the H camera system
is a six-element lens design.
Figure 14-23 Teleconverter design. A quality
teleconverter, like the Hasselblad 2 XE, may
have as many or more lens elements than
basic lenses.
Converter 1.7X
