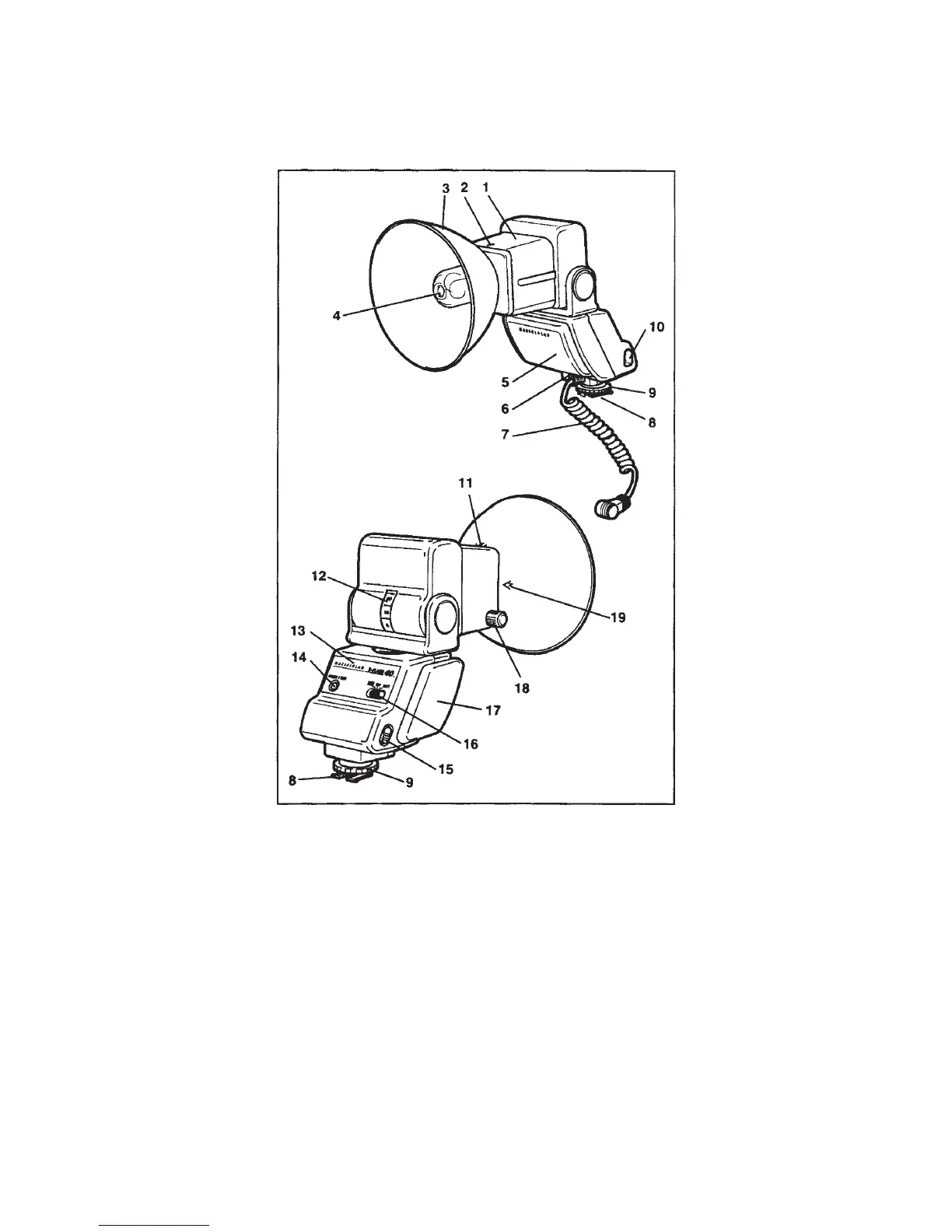

Figure 18-13 The D-Flash 40 operating controls: (1) tilt and swivel head, (2) index mark, (3)
adjustable refl ector, (4) fl ash tube, (5) fl ash body, (6) sync cord jack, (7) sync cord, (8) fl ash
mounting plate, (9) locking nut, (10) external power connection, (11) W indication, (12) tilt
scale, (13) model designation, (14) ready light and discharge button, (15) battery cassette
latch key, (16) ON/OFF switch and power selector, (17) battery cassette, (18) refl ector locking
knob, and (19) N position.
