44 THE HASSELBLAD MANUAL
forgotten the devoted fi lm photographers and still sees a future for fi lm photography. With the
introduction of the H2F model, in addition to the H3DII, you can select a Hasselblad camera
with the operation, features, and sophisticated automation that makes photography a pleasure
whether you work digitally or with fi lm.
The basic camera operations on all H models are the same, and everything discussed in
this chapter applies to all models unless indicated differently. Figure 4-1 shows the H camera
and its controls, which apply to all the different models.

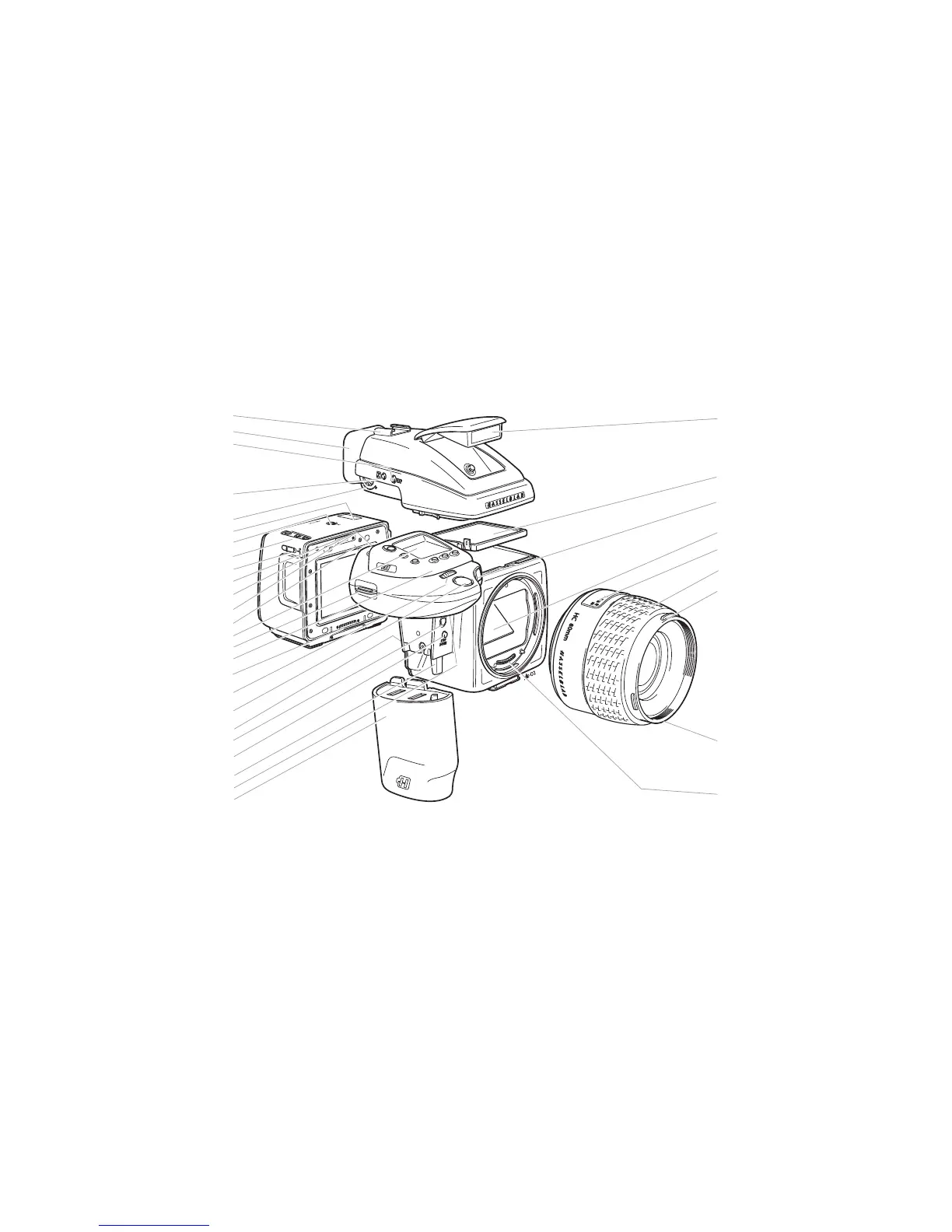

Figure 4-1 The H1 camera and camera controls. Note that controls 10, 11, and 12 are at the rear
of the grip and are not visible here. (1) Flash unit hot shoe; (2) rubber eyecup; (3) exposure
mode and metering mode selector button; (4) exposure compensation button; (5) eyepiece
adjustment dial; (6) magazine LCD; (7) LCD illumination button; (8) magazine control buttons;
(9) magazine settings lock; (10) AE-L button; (11) fi lm wind-off button; (12) user button;
(13) rear control wheel; (14) grip LCD; (15) support strap lug; (16) camera control buttons;
(17) magazine databus; (18) front control wheel; (19) shutter release button; (20) battery
holder button; (21) release cord socket; (22) stop down button; (23) battery holder retaining
lever; (24) mirror up button; (25) battery holder; (26) fl ash unit; (27) viewfi nder screen;
(28) focus assist light; (29) mirror; (30) distance and depth-of-fi eld scales; (31) focusing ring;
(32) lens shade bayonet; (33) fi lter screw thread; (34) databus connection; (35) viewfi nder
release button; (36) fl ash unit catch; (37) viewfi nder attachment hook; (38) viewfi nder
databus connection; (39) magazine release button; (40) fl ash PC socket; (41) camera strap lug;
(42) lens release button; (43) magazine support; (44) databus connection; (45) quick coupling
tripod plate; (46) fi lm tab holder; (47) magazine darkslide key; (48) fi lm holder key;
(49) magazine support groove; and (50) databus connection.
