6.8.2 MX471 pin assignment
1
5
6
9

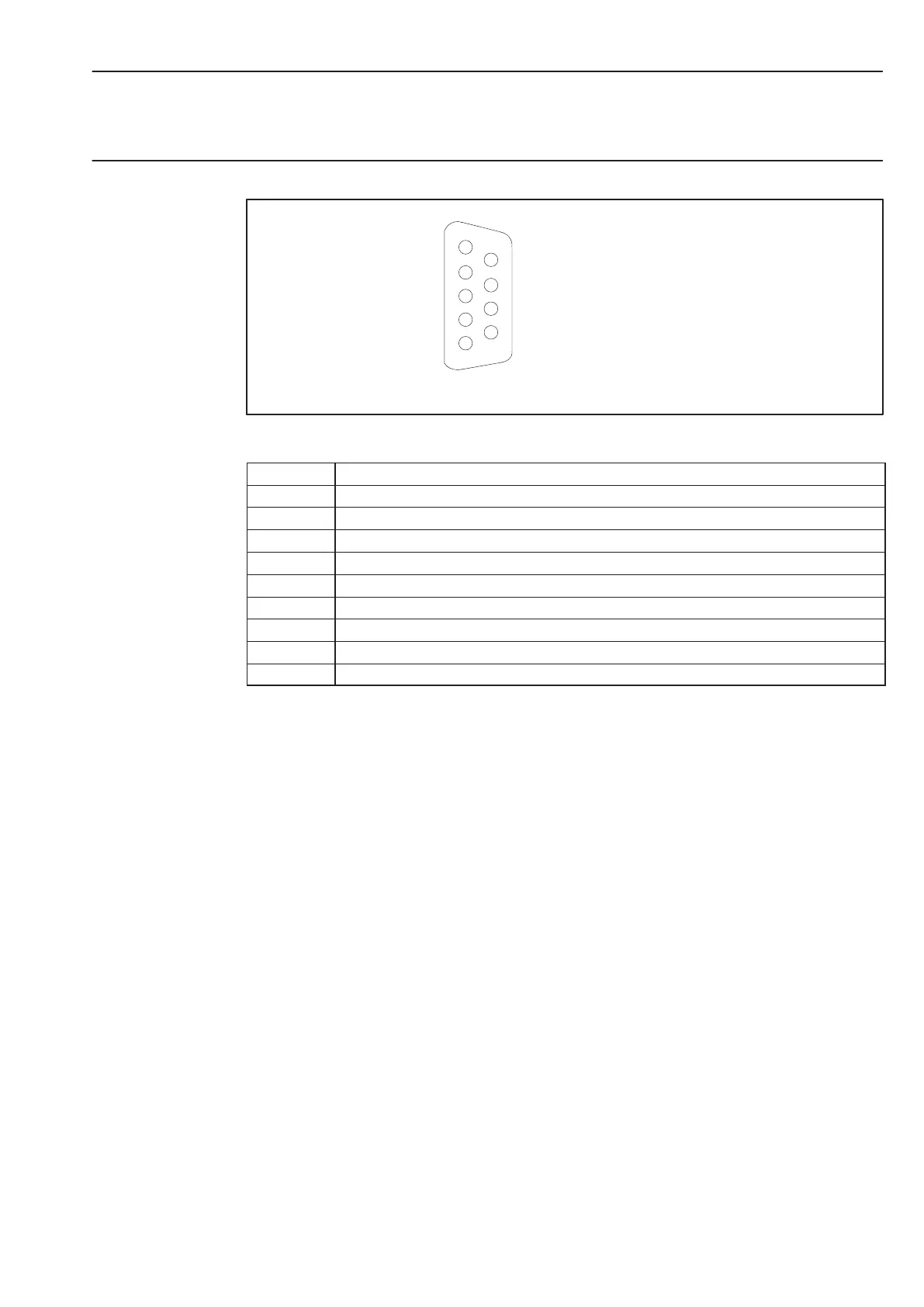

Fig.6.12: Pin arrangement of connection plug, view from the solder side
Pin Connection
1 no function
2 CAN−Low
3 GND
4 no function
5 CAN Shield
6 GND
7 CAN−High
8 no function
9 no function
