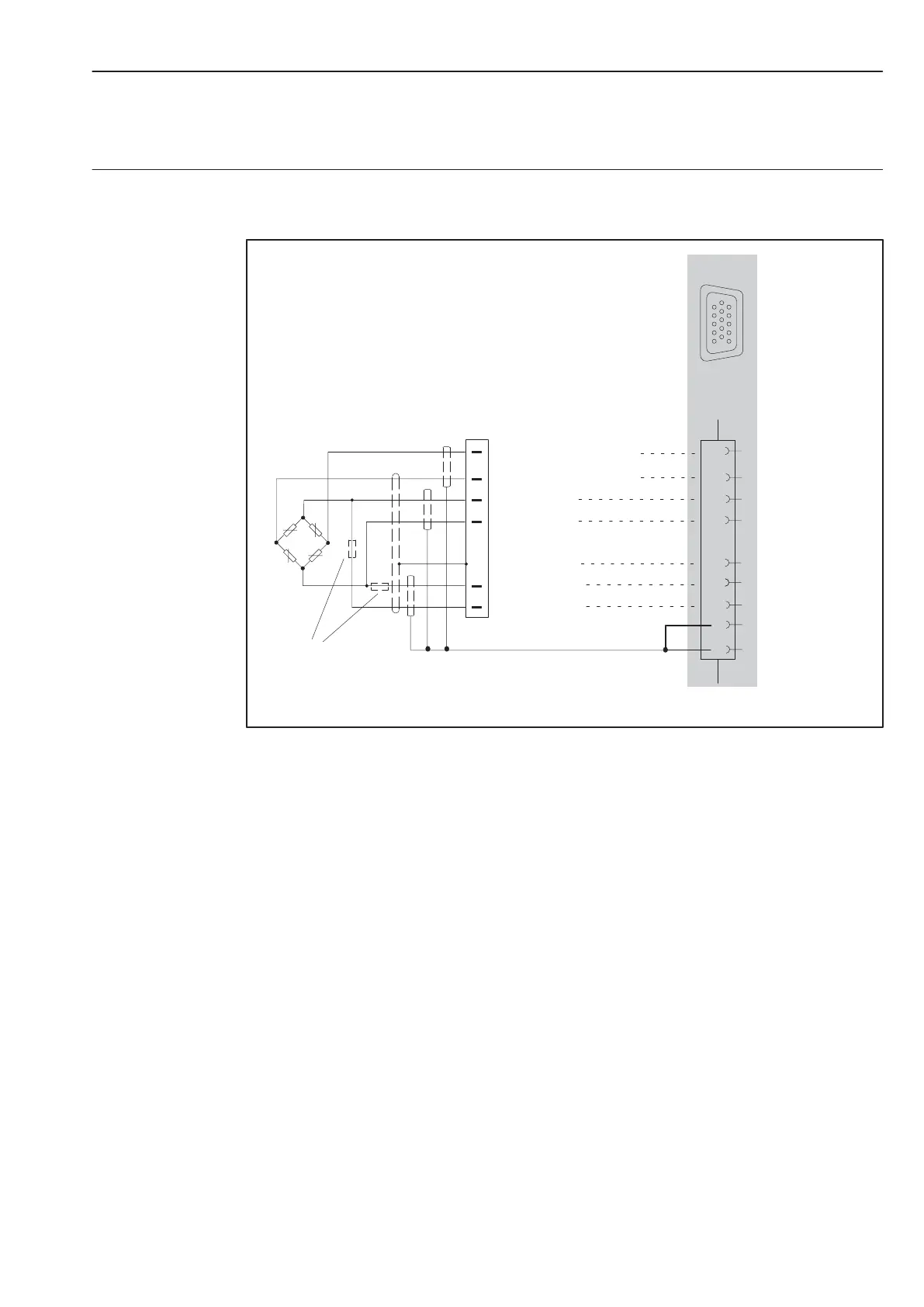

6.11.8 Connection of transducers with double shield
technique
5
8
10
7
Measurement signal (+)
Excitation (+)
Sense lead (−)
Sense lead (+)
Excitation (−)
Measurement signal (−)
Cable shield
2
3
Hsg.
4
9
1
2
4
3
RB / 2
(on transducer)
Hsg. = housing
1
5
6
10
11
15
We recommend this connection technique for very small measurement ranges, in particularly
disturbed environments and when using long cables.
This applies for all bridge connections.
With cable lengths >50 m, a resistor with half the value of the bridge resistance (RB/2) must
be connected in each sense lead of the transducer.
