4.5.2 Wall mounting
A total of 10 boreholes are provided in the backplane for wall mounting (∅ 6.5 mm). We
recommend using the outer 4 boreholes for wall mounting.
NOTE
Only use countersunk head bolts for fastening, otherwise the modules cannot be
mounted correctly.

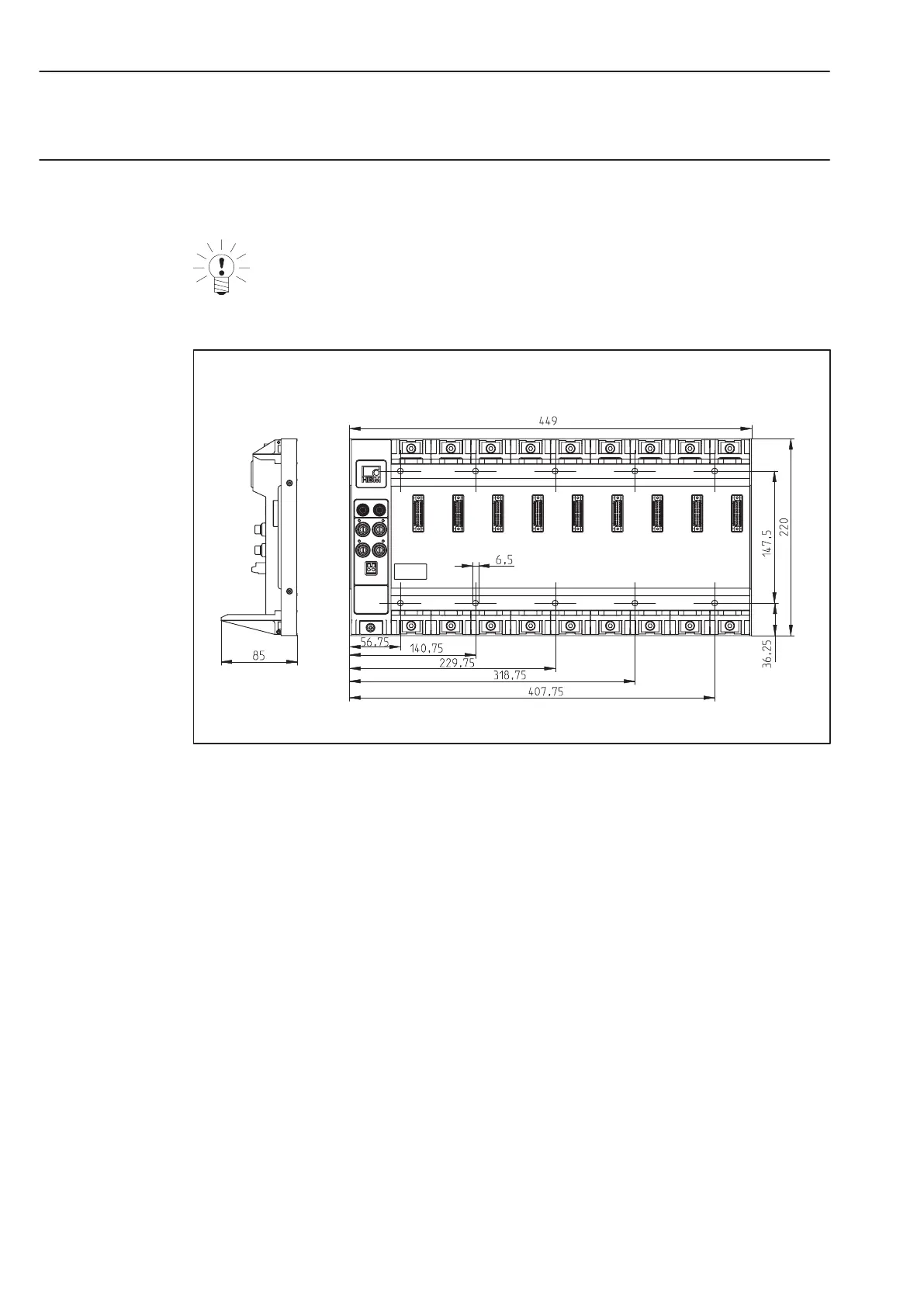

Fig. 4.18: BPX001 drilling pattern and dimensions
Note the following information when installing one or more backplanes in a control cabinet:
• When installing in a control cabinet, the temperature limits given in the technical data of
the backplanes must be complied with
• Depending on the installation situation, sufficient ventilation (vertical air flow) or cooling
must be provided (the maximum total output on a backplane is approx. 150 Watt)
• The ventilation slits of the modules must not be covered (e.g. by cable ducts)
