6.11.11 Piezoelectric sensors IEPE

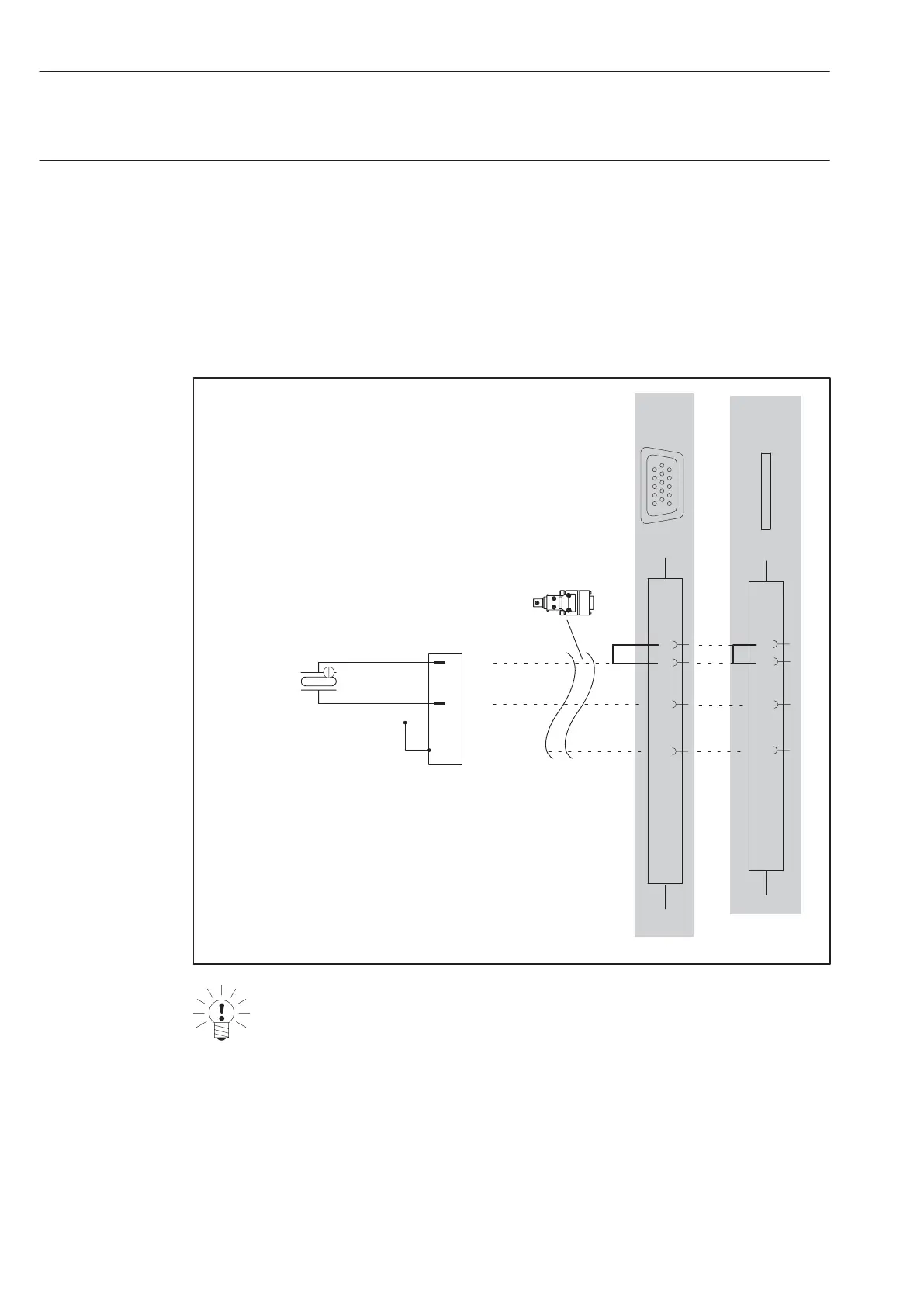

Current fed piezoelectric transducers are supplied with a constant current of e.g. 5.5 mA and
feed a voltage signal to the amplifier. This transducer type is also called IEPE or ICP

transducer.
IEPE

means ”Integrated Electronics Piezo−Electric”.
ICP

is a registered trademark of PCB Piezotronics
Is supported by the following modules:
MX410 (direct to SubHD or via BNC adapter), MX1601 (directly to the connector)
MX840, MX840A, MX440A with 10 V analog input and 24 V supply via a Smart module
14
Hsg.
9
(−)
(+)
4
Cable shield
Option BNC adapter
(1-IEPE-MX410)
Hsg. = housing
1
5
6
10
11
15
IEPE
1
8
Push in
5
2
1
8
MX1601
NOTE
IEPE transducers with TEDS version 1.0 are supported.
