105Connection
HBMQuantumX

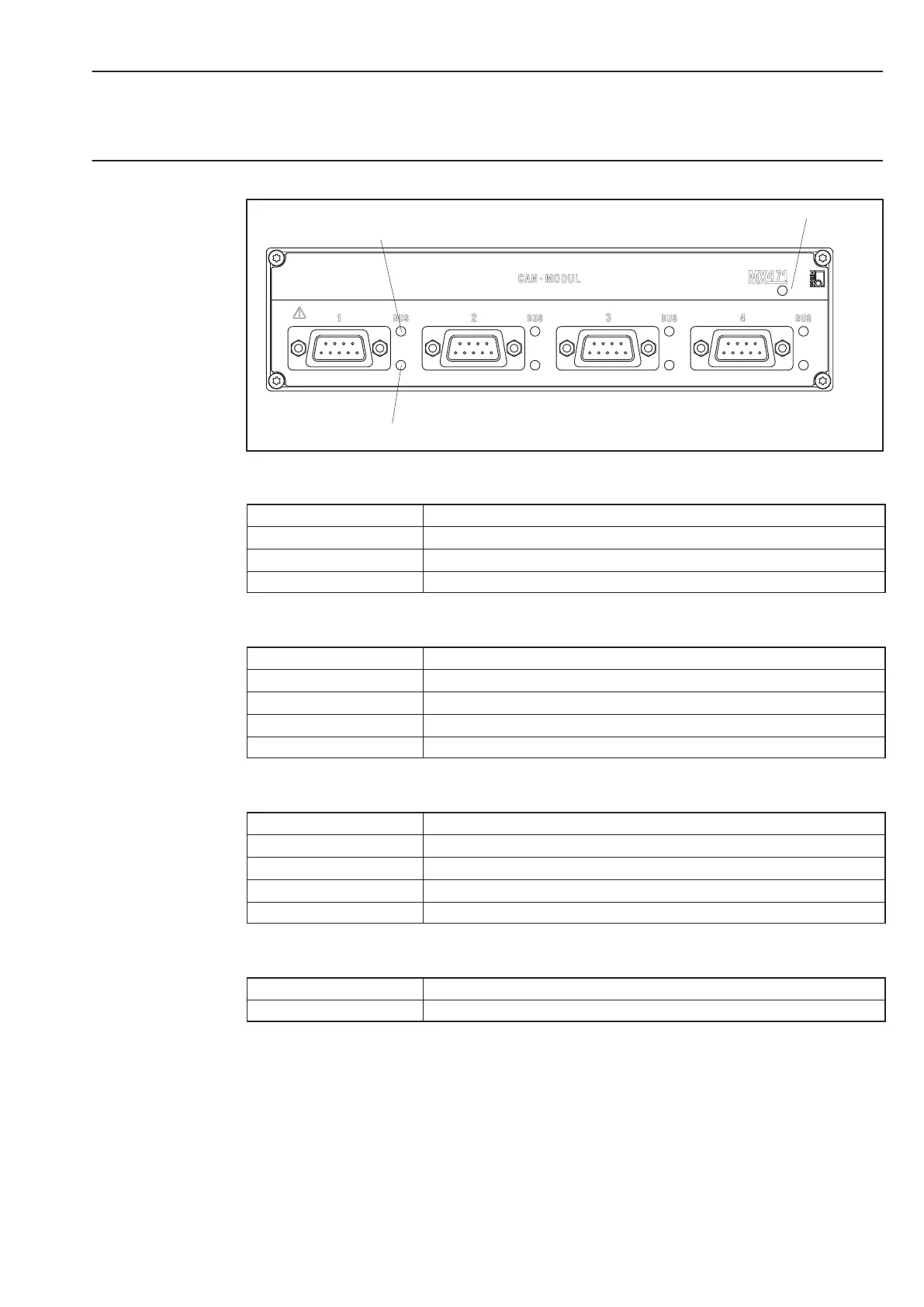

6.8.4 LED status display
System LED
CAN LEDs “BUS”
CAN LEDs “Channel”
System LED:
Green Error−free operation
Yellow System is not ready, boot procedure running
Flashing yellow Download active, system is not ready
Red Error, faulty synchronization
CAN LEDs (BUS):
Green flickering No bus error and CAN activity
Constant green No bus error and no CAN activity
Yellow flickering Intermittent bus errors (Warning) and CAN activity
Constant yellow Intermittent bus errors (Warning) and no CAN activity
Red on Bus error, CAN interface in ”Bus−OFF” status
CAN LEDs (Channel):
Green flickering No bus error and CAN activity
Constant green No bus error and no CAN activity
Yellow flickering Intermittent bus errors (Warning) and CAN activity
Constant yellow Intermittent bus errors (Warning) and no CAN activity
Red on Bus error, CAN interface in ”Bus−OFF” status
Ethernet LED:
Green on Ethernet link status is ok
Flashing yellow Ethernet data transmission ongoing
