HBM QuantumX MX840A - Quarter Bridge, Strain Gauge

117Connection
HBMQuantumX

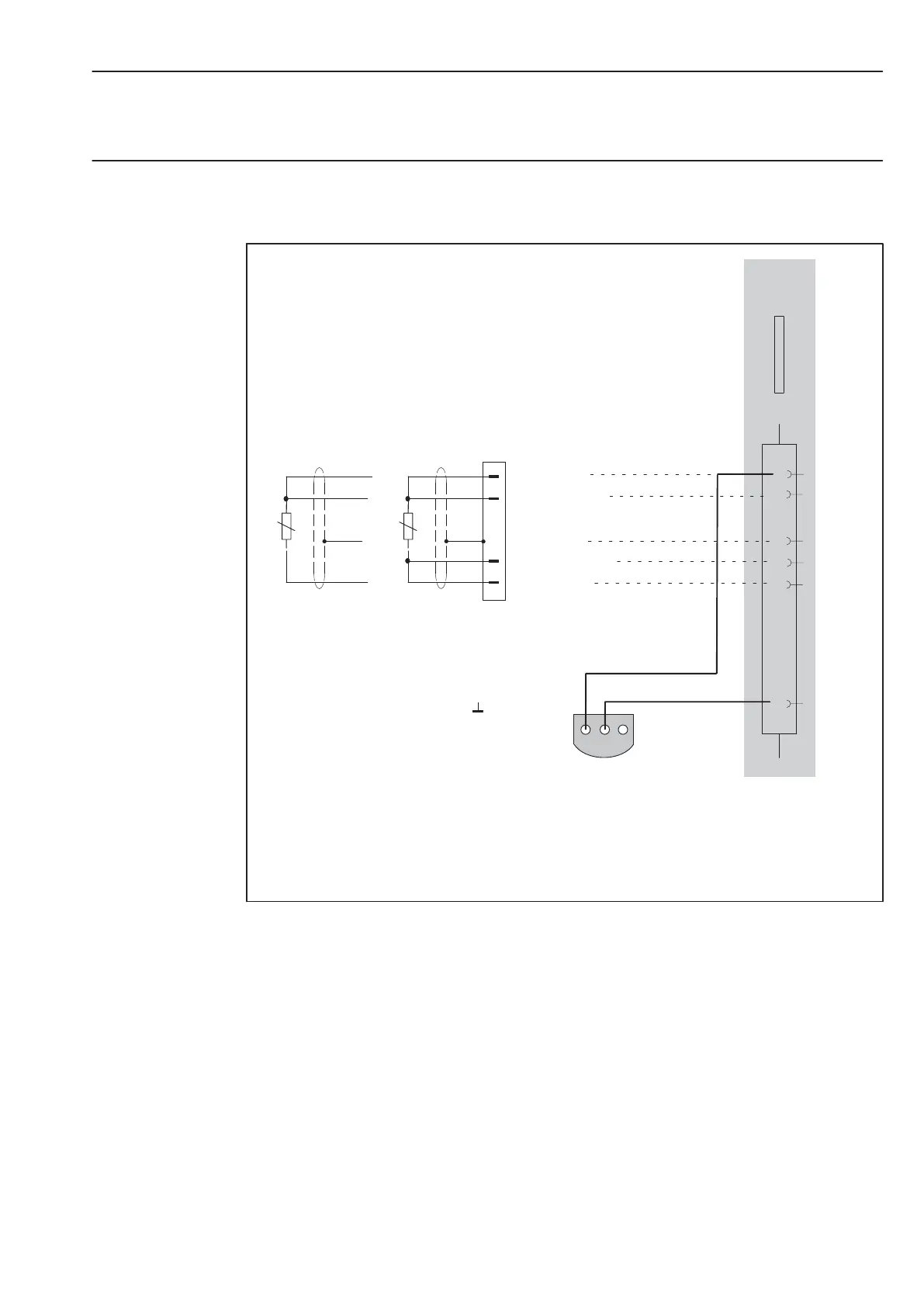

6.11.6 Quarter bridge, strain gauge
An adapter is required for connecting single strain gauges in quarter bridge configuration to
the MX840, MX840A, MX440A and MX410 universal amplifiers - see chapter 6.11.7.
Hsg.= housing
2 Data
3 No function
1
1
8
Push in
4
7
1
123
Vierleiter-Anschluss
Dreileiter-Anschluss
8
Cable shield
Excitation (+)
Sense lead (+)
Sense lead (−)
5
6
SG
SG
1-wire EEPROM
(optional)
view from below
Cable color code:
bk= black; bu= blue; ye = yellow; gn= green; gy= gray
Excitation (−)
gy
bk
bu
ye
gn
