HBM QuantumX MX840A - Resistance Thermometers Pt100, Pt1000

130 Connection
HBM QuantumX
6.11.17 Resistance thermometers Pt100, Pt1000
Supported by modules:
PT100 / PT1000: MX840, MX840A, MX440A
PT100 : MX1615
2
Hsg.
Excitation (−)
Cable shield

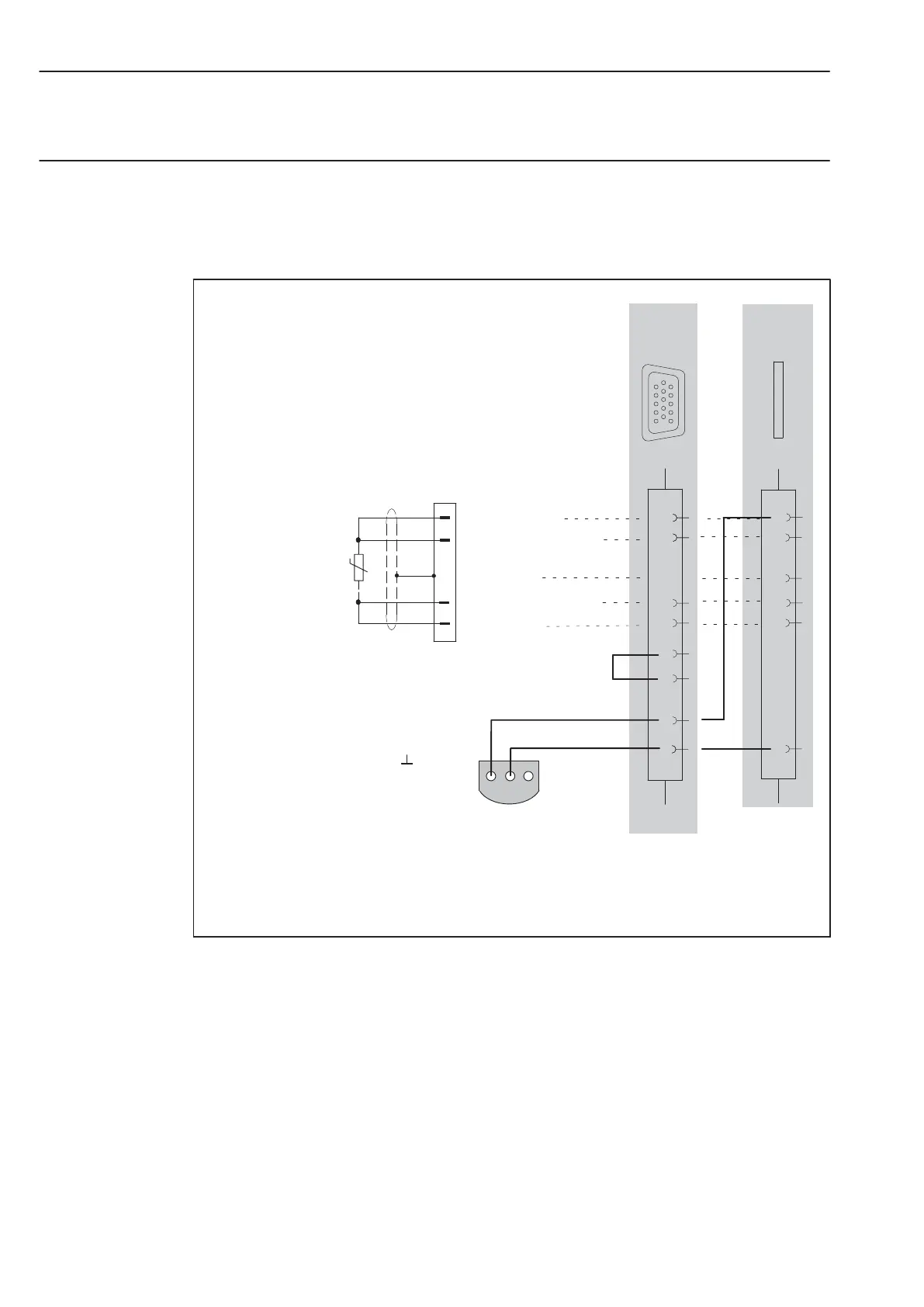

Four-wire circuit
Excitation (+)
Measurement signal (−)
Measurement signal (+)
10
4
9
2
5
3
ϑ
Hsg. = housing
6
1
123
1-wire EEPROM
(optional)
view from below
1
5
6
10
11
15
2 Data
3 No function
1
1
8
Push in
4
5
8
6
7
1
MX1615
