5.2.5 Connection via FireWire (IEEE 1394b)
General information
S Baud rate of 400 MBaud (approx. 50 MByte/s)
S Asynchronous (all nodes) or isochronous (in real time) data transmission
S Data synchronization
S Supply voltage via FireWire connection cable (max. 1.5 A)
10 V ... 30 V DC
1-NTX001 or 1-KAB271−3
1-KAB270-3
Adapter
PC: PCI or PCIe card
Notebook: PC card (previously PCMCIA)
X102
X104

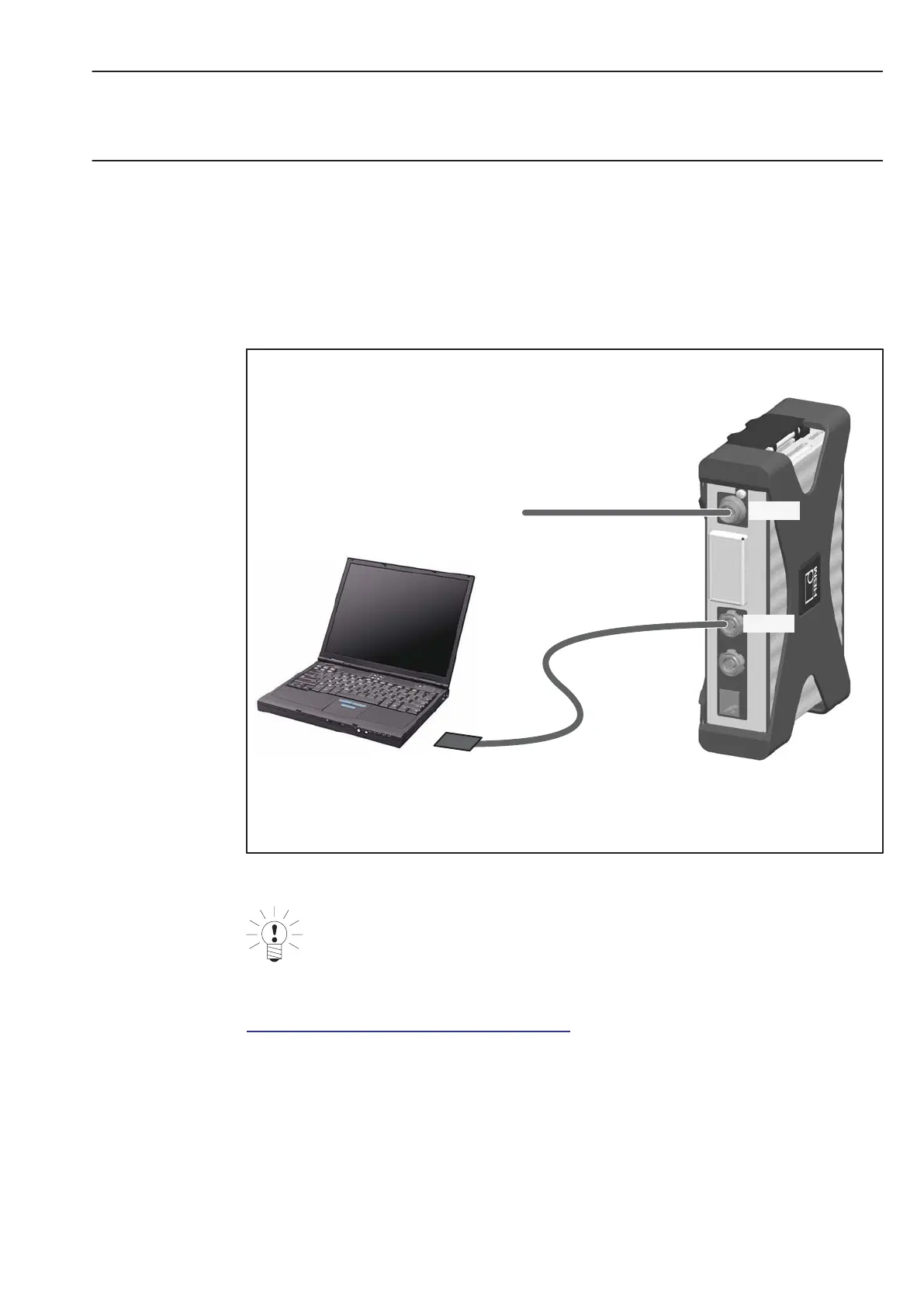

Fig.5.6: Single FireWire connection
NOTE
Please check in advance whether a firmware or software update is required.
Software/firmware downloads can be found on the HBM website:
www.hbm.com\downloads
