5.2 Connection to host PC or notebook
5.2.1 Single Ethernet connection
TCP/IP, 100 Mbps
Cross Over
10 V ... 30 V DC
1-NTX001 or
1-KAB271-3
X100
X104

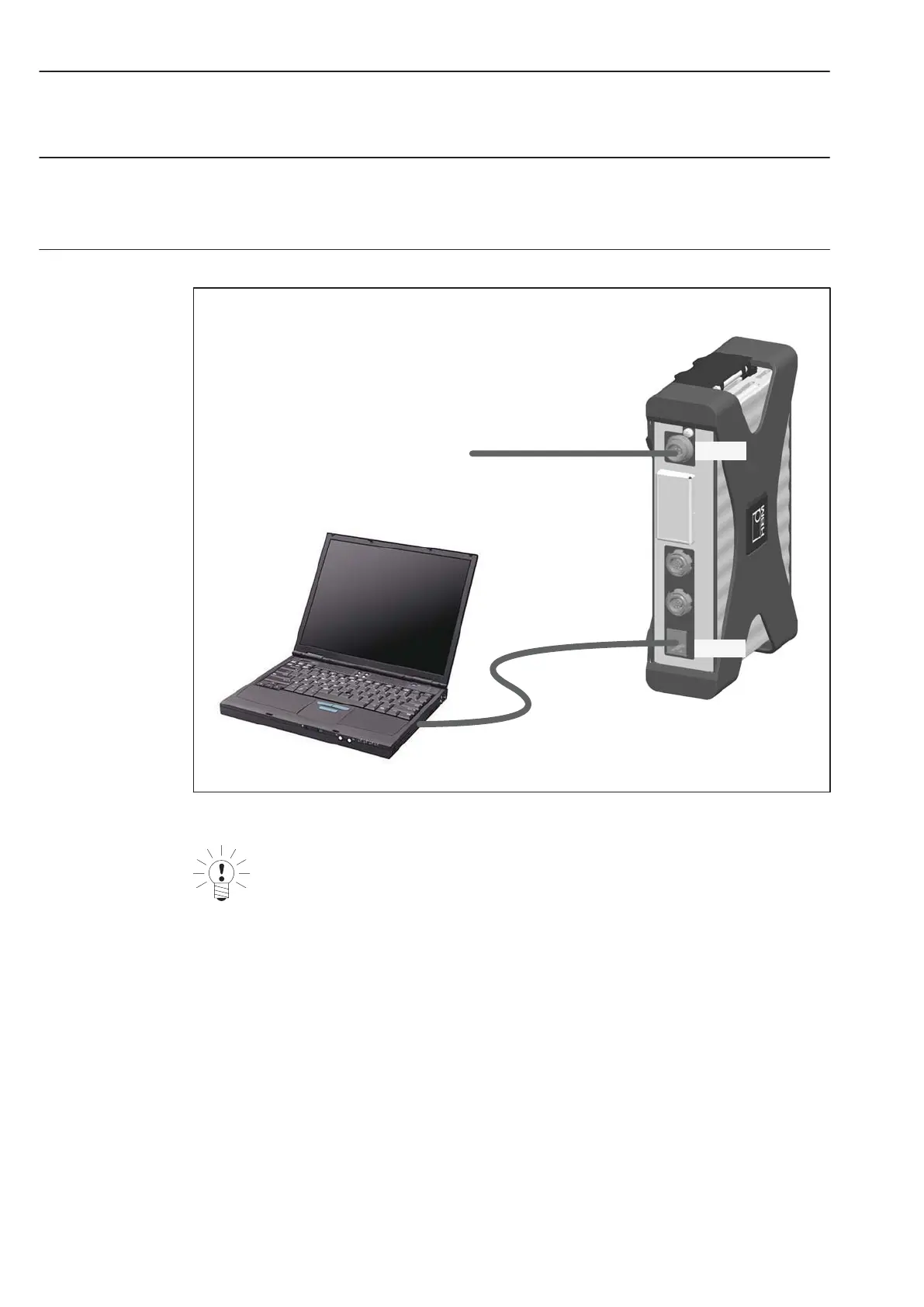

Fig.5.2: Single Ethernet connection
NOTE
You must use an Ethernet crossover cable with older computers. Newer PCs/laptops
have Ethernet interfaces with autocrossing function. You can also use Ethernet patch
cables here.
