6.6.2 MX460 status display
Connection LED
System LED

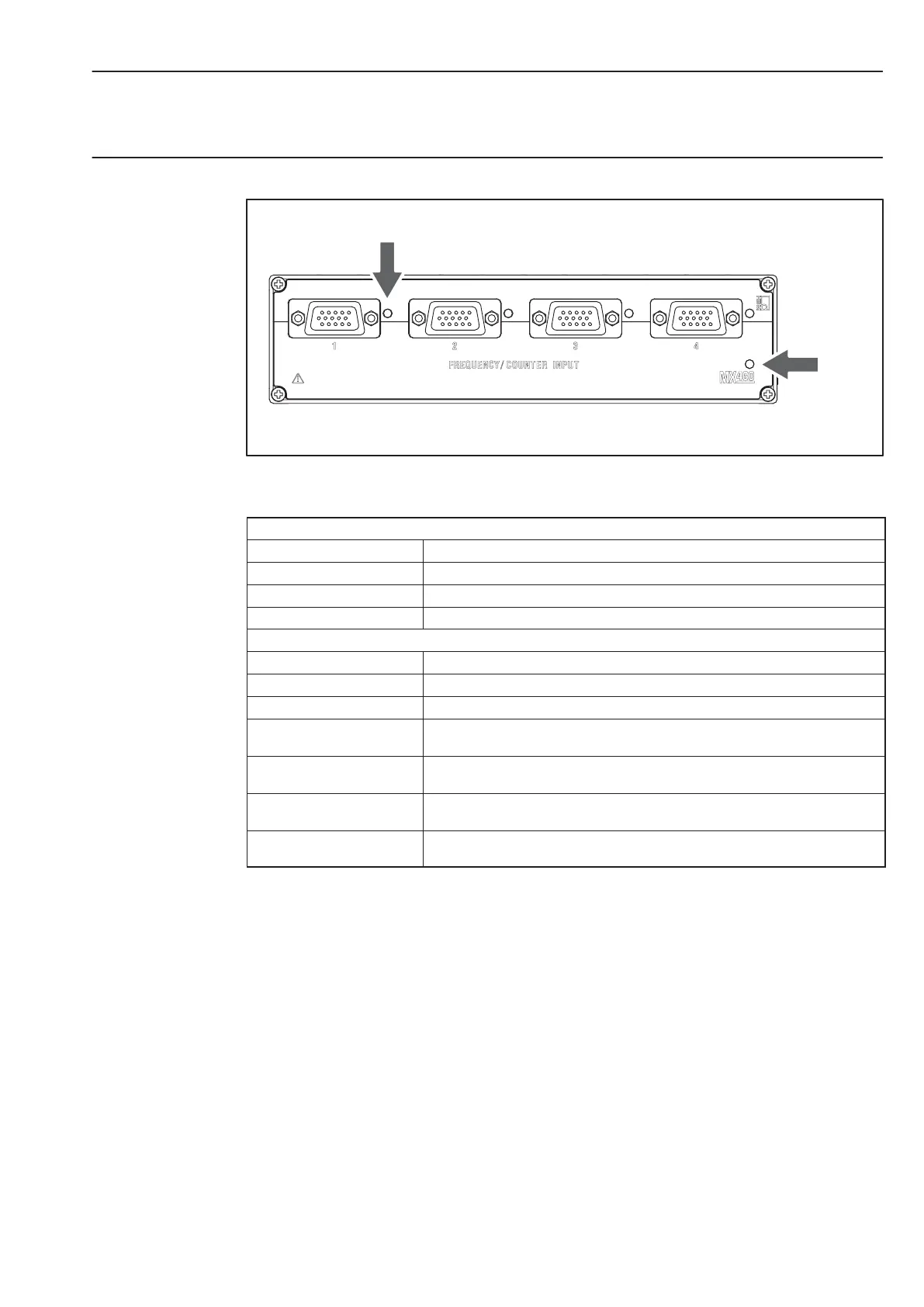

Fig.6.10: MX460 front view
System LED
Green Error-free operation
Orange System is not ready, boot procedure running
Flashing orange Download active, system is not ready
Red Error
Connection LEDs
All LEDs are orange Boot procedure running (system is not ready)
All LEDs are flashing orange Firmware download active (system is not ready)
Orange Connection newly assigned, transducer identification running (calibration)
Green Error-free operation (”Ignore TEDS” or ”if available” set,
channel is manually configured)
Flashing green (5s), then
green
Reading TEDS data
Flashing orange (5s), then
green
Manual configuration running (ignore TEDS)
Red No sensor connected
Channel error (incorrectly parameterized, connection error, invalid TEDS data)
General rule: Brief flashing → TEDS identified (green: is used, orange: is not used).
