HBM QuantumX MX840A - Thermocouples

131Connection
HBMQuantumX
6.11.18 Thermocouples
Supported by modules: MX840, MX840A, MX440A, MX1609, MX1609−P
MX1609/MX1609P modules support only type K thermocouples; the MX1609−T module type
T supports type T with mini thermocouple plugs (see page 98). Cold−spot compensation is
integrated here.
With MX840, MX840A and MX440A, the accesory 1−THERMO−MXBOARD for cold spot
compensation needs to be integrated in the SubHD connector (see following page).
Type Thermocouple material 1 (+) Thermocouple material 2 (−)
J Iron Copper-Nickel
K Nickel-chrome (color−code green) Nickel-aluminum (color code white)
T Copper Copper-nickel
S Rhodium-platinum (10%) Platinum
E Nickel-chrome Copper-nickel
B Rhodium-platinum (30%) Rhodium-platinum (6%)
N Nickel-chrome-silicone
1)
Nickel-silicone
R Rhodium-platinum (13%) Platinum
+
−

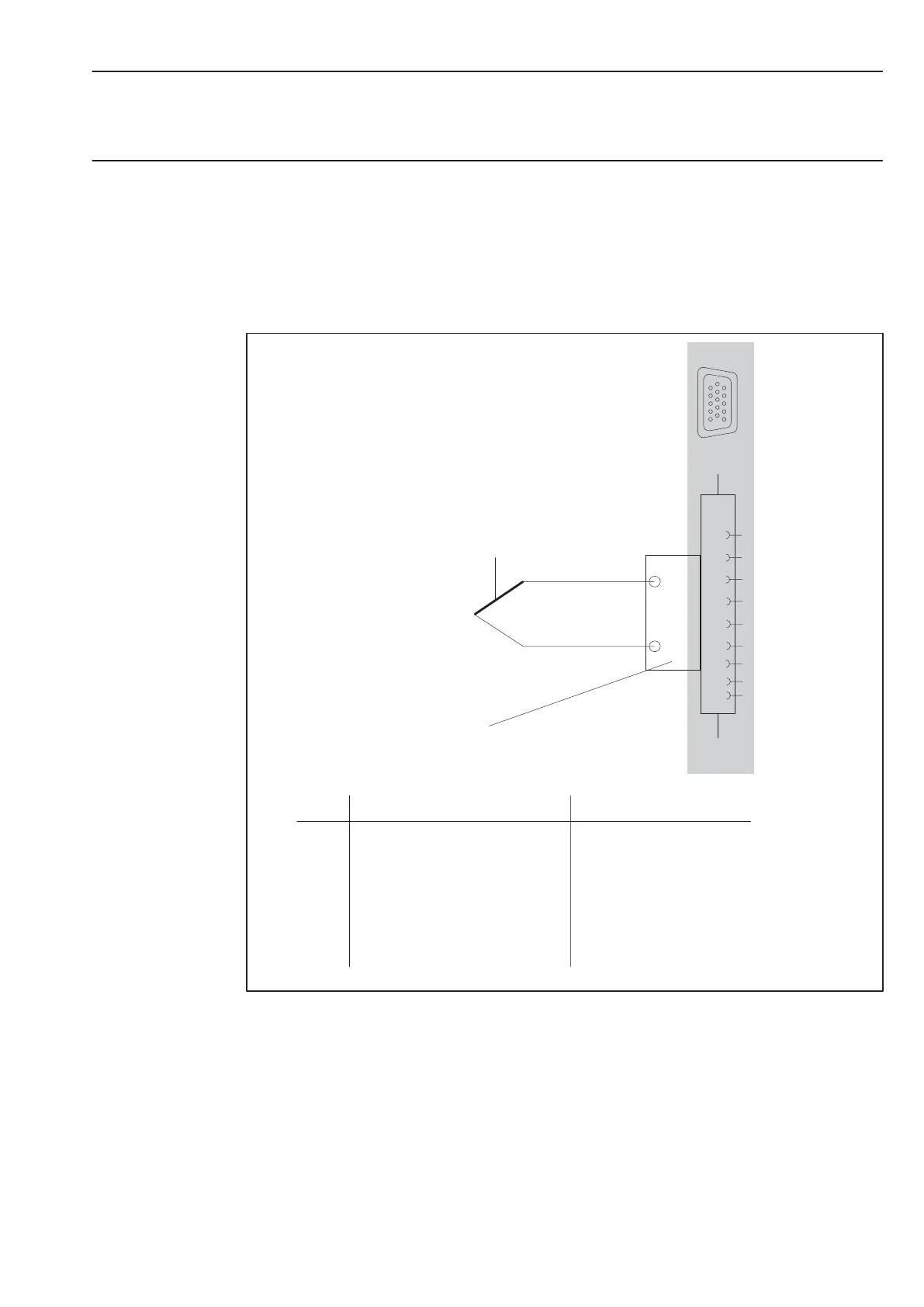

Thermocouple
1−THERMO−MX BOARD
(soldered into connector plug and contains a
cold spot compensation element and TEDS)
Maximum input voltage to housing and signal
ground : "60 V
Connection with MX840, MX840A, MX440A
1
5
6
10
11
15
When recording temperatures with thermocouples using MX840, MX840A, MX440A, you
must use a connector with integrated cold spot compensation element
(1−THERMO−MX BOARD).
1)
Nicrosil
