132 Connection
HBM QuantumX

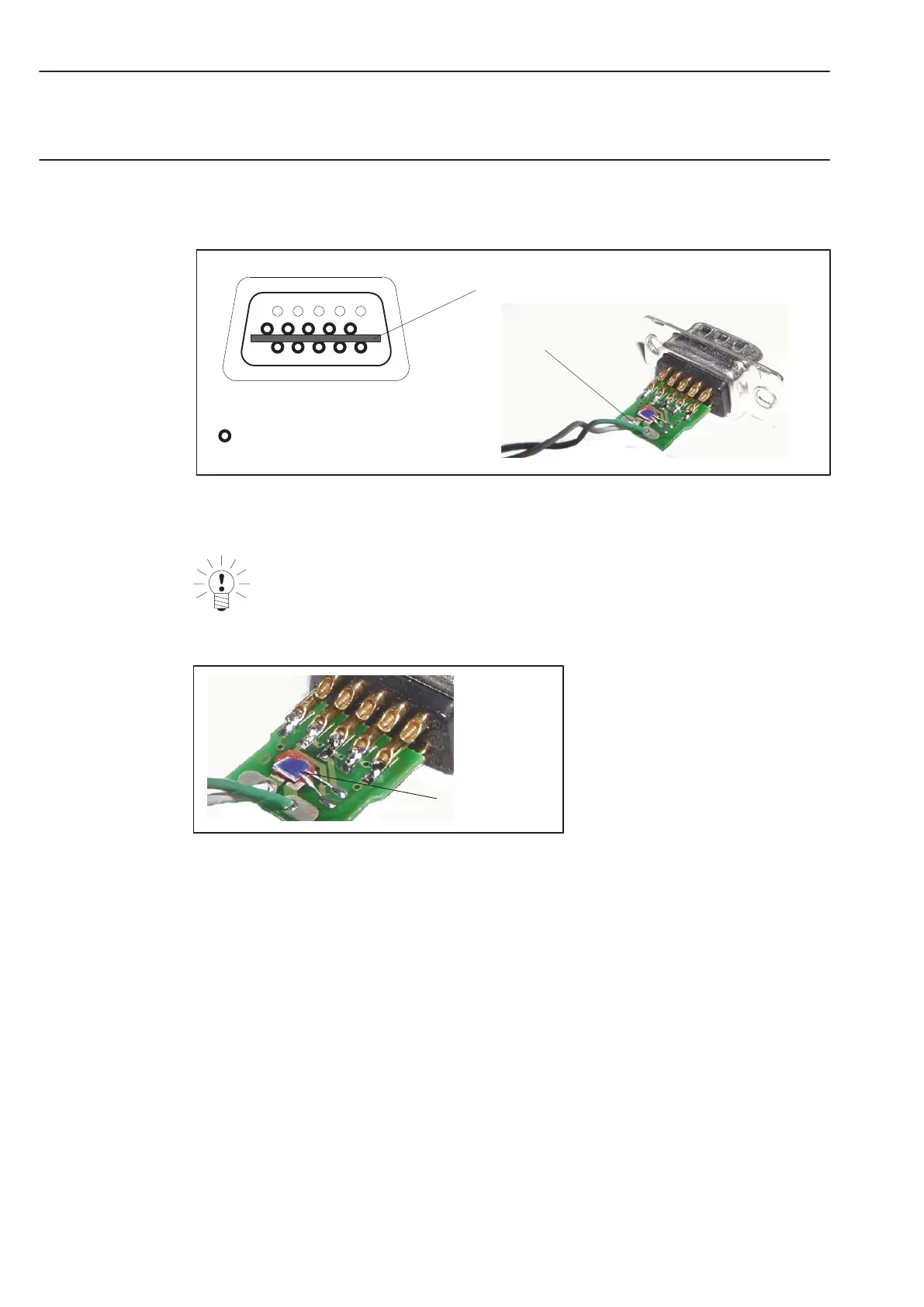

When recording temperatures with thermocouples, you must solder the ”1-THERMO-MX
BOARD” board into the connector plug.
Position of board in plug
1
5
106
PT1000
PINs to be soldered
• Insert the 1-THERMO-MX BOARD in the correct position between the plug pins
Note
Check the position with the plug shape (see picture above).
In this position, the PT1000 of the cold spot compensation element is on top.
PT1000
• Solder the connector pins to the connections on the board
• PIN 1 TEDS
PIN 6 TEDS
PIN 5 Thermocouple (+)
PIN 10 Thermocouple (−)
PIN 9 Signal ground
PIN 7 PT1000 cold junction
PIN 8 PT1000 cold junction
PIN 2 Supply (−)
PIN 3 Supply (+)
