9.5 MX840 accessories
9.5.1 Cold junction for thermocouples
Electronics for temperature compensation for measurements with thermocouples. Board for installation in a 15-pin
D−Sub−HD plug.

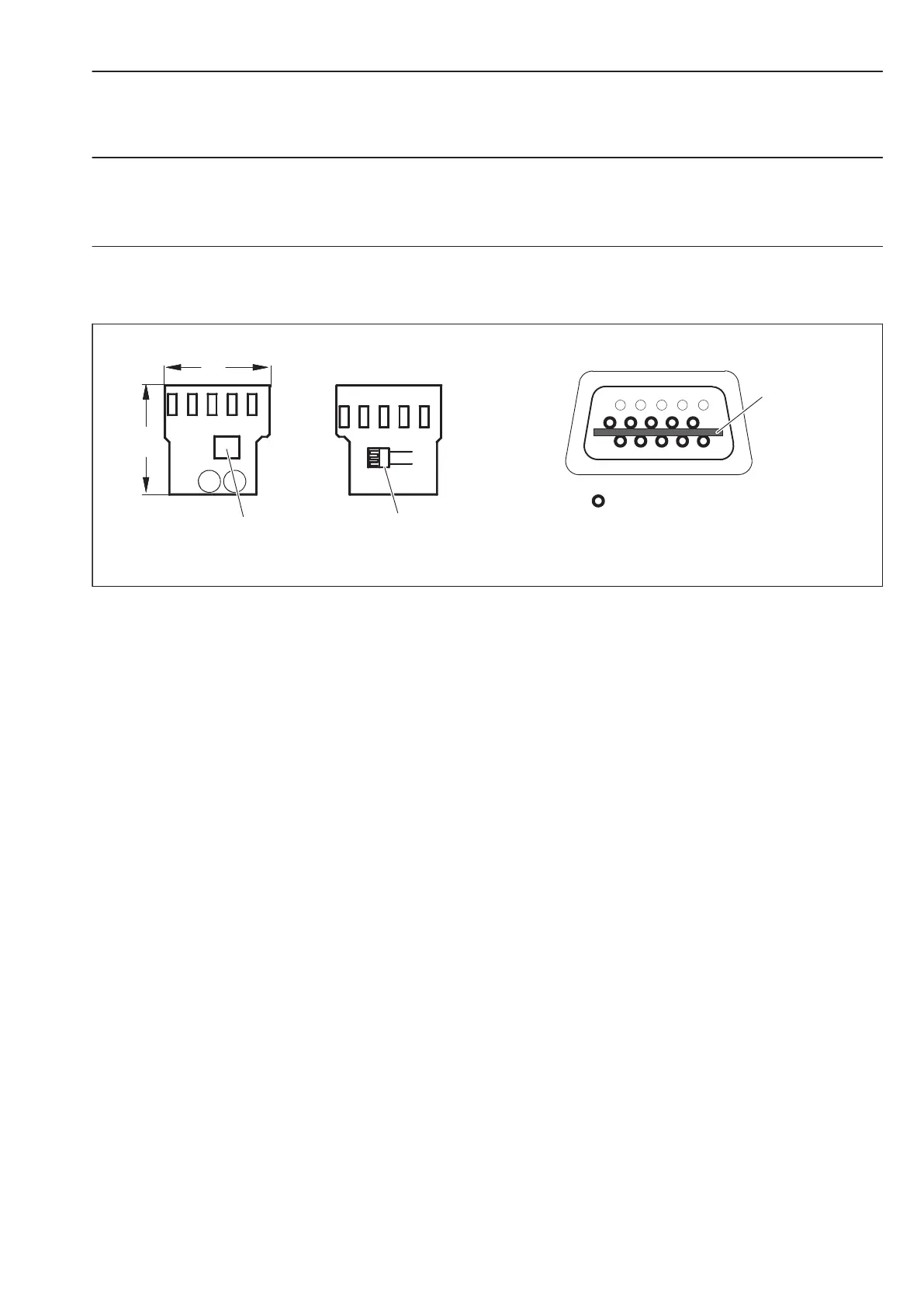

Position of
board in plug
1
5
106
PINs to be soldered
View from above View from below
Cold junctionTEDS chip
12, 5
12
All dimensions in mm
Height with components: 3 mm
Order No: 1-THERMO-MXBOARD
