94 Connection
HBM QuantumX
6.5.2 MX410 status display
System LED
Connection LED
Analog output LED

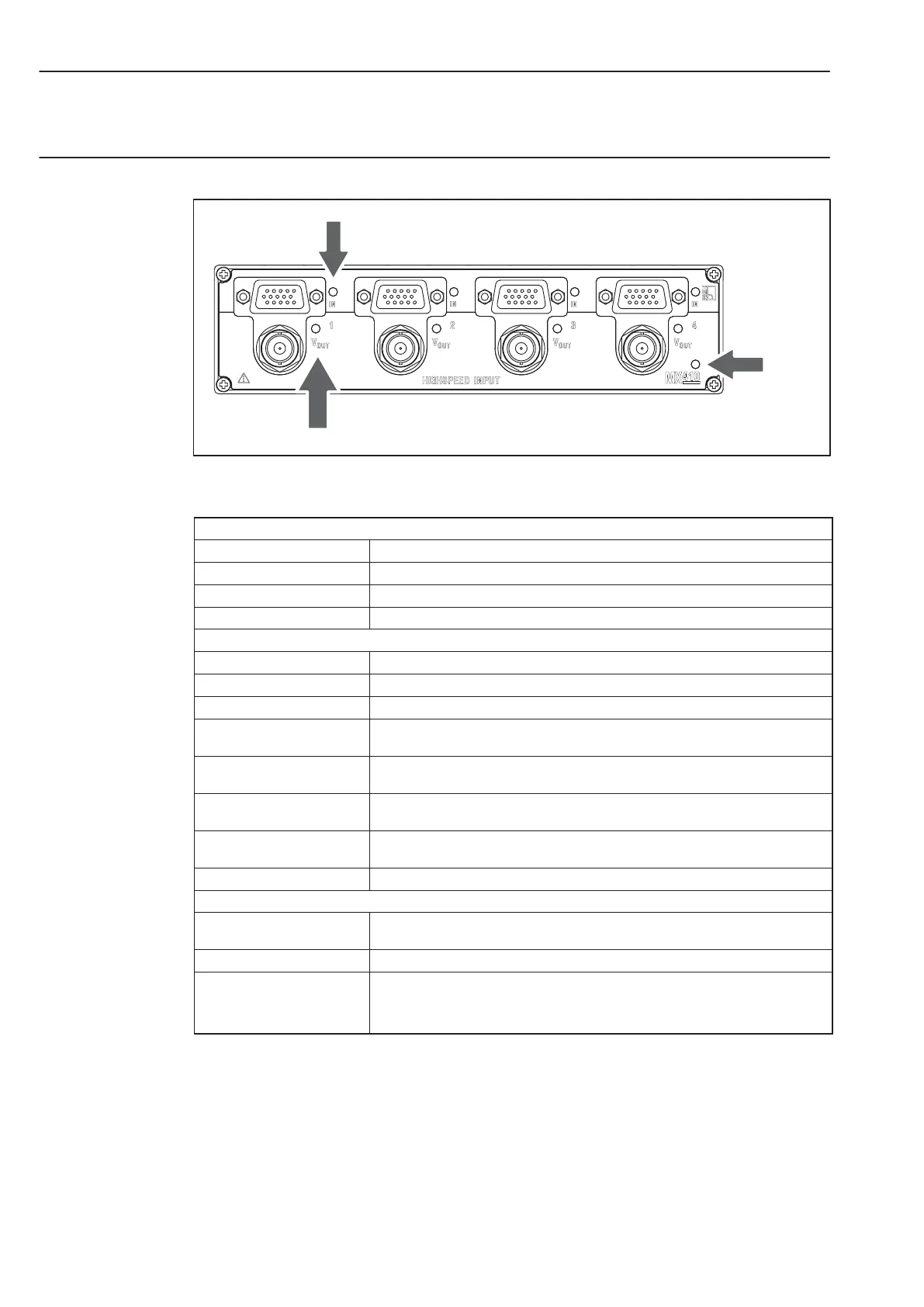

Fig.6.8: MX410 front view
System LED
Green Error-free operation
Orange System is not ready, boot procedure running
Flashing orange Download active, system is not ready
Red Error
Connection LEDs
All LEDs are orange Boot procedure running (system is not ready)
All LEDs are flashing orange Firmware download active (system is not ready)
Orange Connection newly assigned, transducer identification running (calibration)
Green Error-free operation (”Ignore TEDS” or ”if available” set,
channel is manually configured)
Flashing green (5s), then
green
Reading TEDS data
Flashing orange (5s), then
green
Manual configuration running (ignore TEDS)
Red No sensor connected
Channel error (incorrectly parameterized, connection error, invalid TEDS data)
Red Sensor supply overload
Analog output LEDs
Green Error-free operation (”Ignore TEDS” or ”if available” set,
channel is manually configured)
Orange System is not ready, boot procedure running
Rot
Orange
Rot
Over current at analog output
Input signal overload
Overload resulting from invalid scaling of analog output
General rule: Brief flashing → TEDS identified (green: is used, orange: is not used).
