40 BPX001 Backplane
HBM QuantumX
4.5 BPX001 backplane
You can connect up to 9 modules with each other using the BPX001 backplane without the
need for complicated cabling and you can link these via the two FireWire interfaces of the
backplane with other modules or module groups. You can also set up a direct connection to
a PC via one of the FireWire interfaces of the backplane. The FireWire interfaces of the
individual modules are actively connected to each other.
The supply voltage (18 V ... 30 V DC) for the modules must be supplied externally. The
circuits of the FireWire connections and the modules are protected with a total of four fuses
with control displays (arrangement see 1.1).
The modules can be positioned anywhere in the backplane. The backplane is designed for
wall or control cabinet installation and has boreholes for attachment.
Slot 1
Slot 9

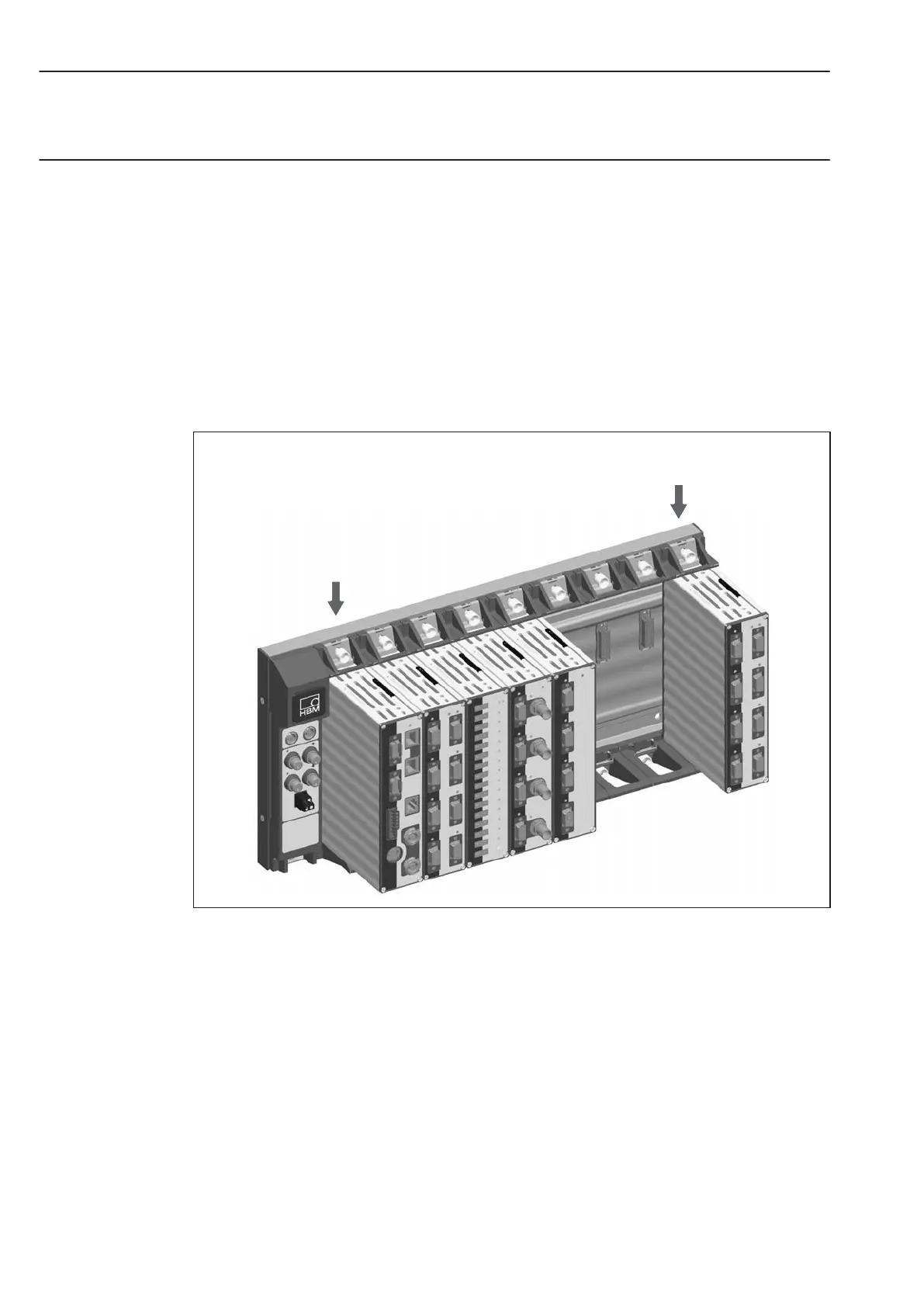

Fig. 4.16: Example for setup with 6 modules
