4.2 Mounting housing clips on modules with degree of
protection IP65
The mounting shown in the following pictures must be implemented on both sides of the
housing.
Cover

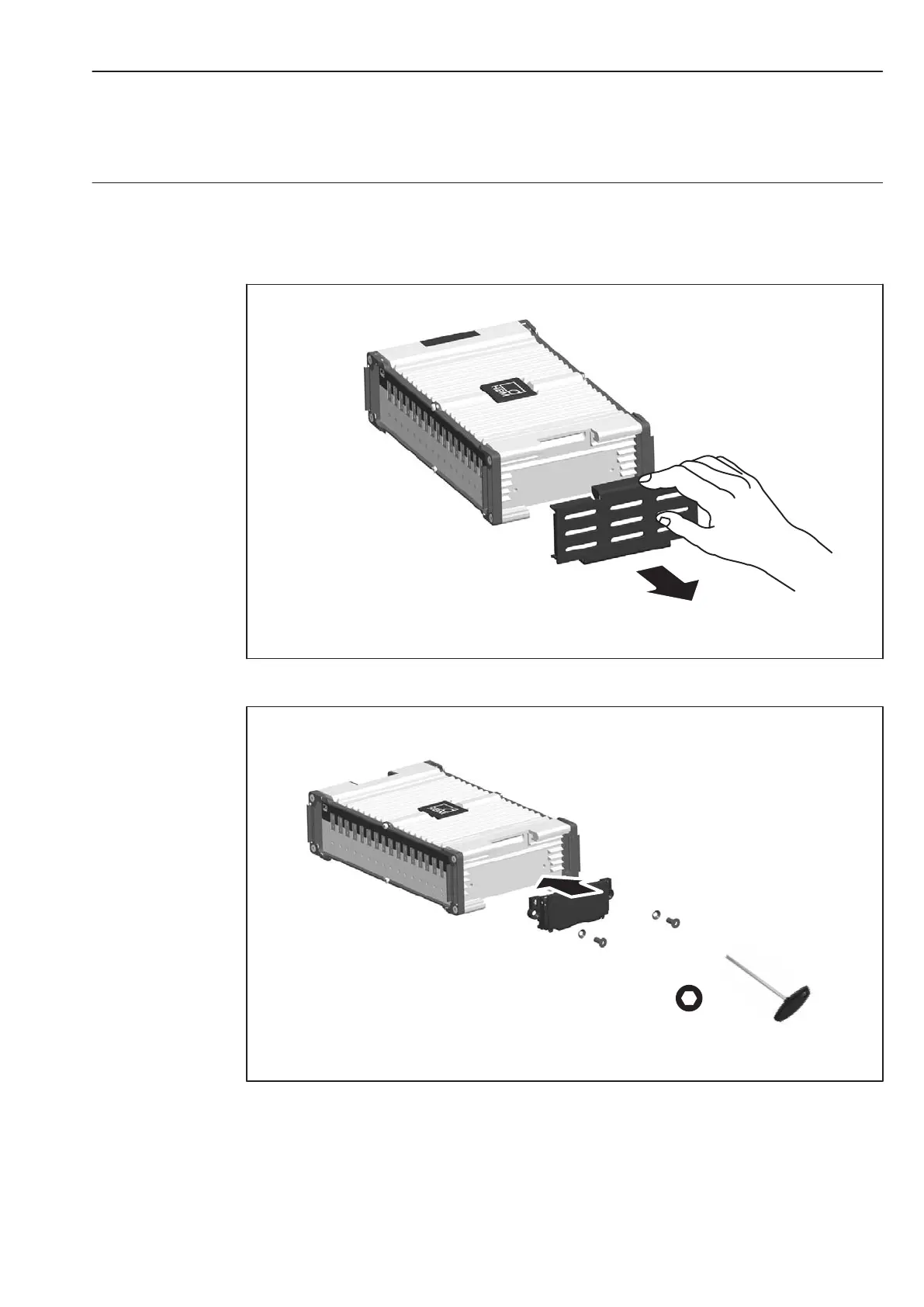

Fig. 4.8:Removing the cover
a.f. 2.5
Housing clip
Fig. 4.9:Mounting the housing clip
