4.5.3 Mounting the modules
TOOLS
We recommend a T-handle socket spanner 4x150 (across flats 4 mm, length 150 mm).
NOTE
The modules can only be fastened in backplanes in housings with IP20 protection
without case protection, case clips or lateral covers If these are present, remove as
shown in Chapter 4.
Mounting sequence:

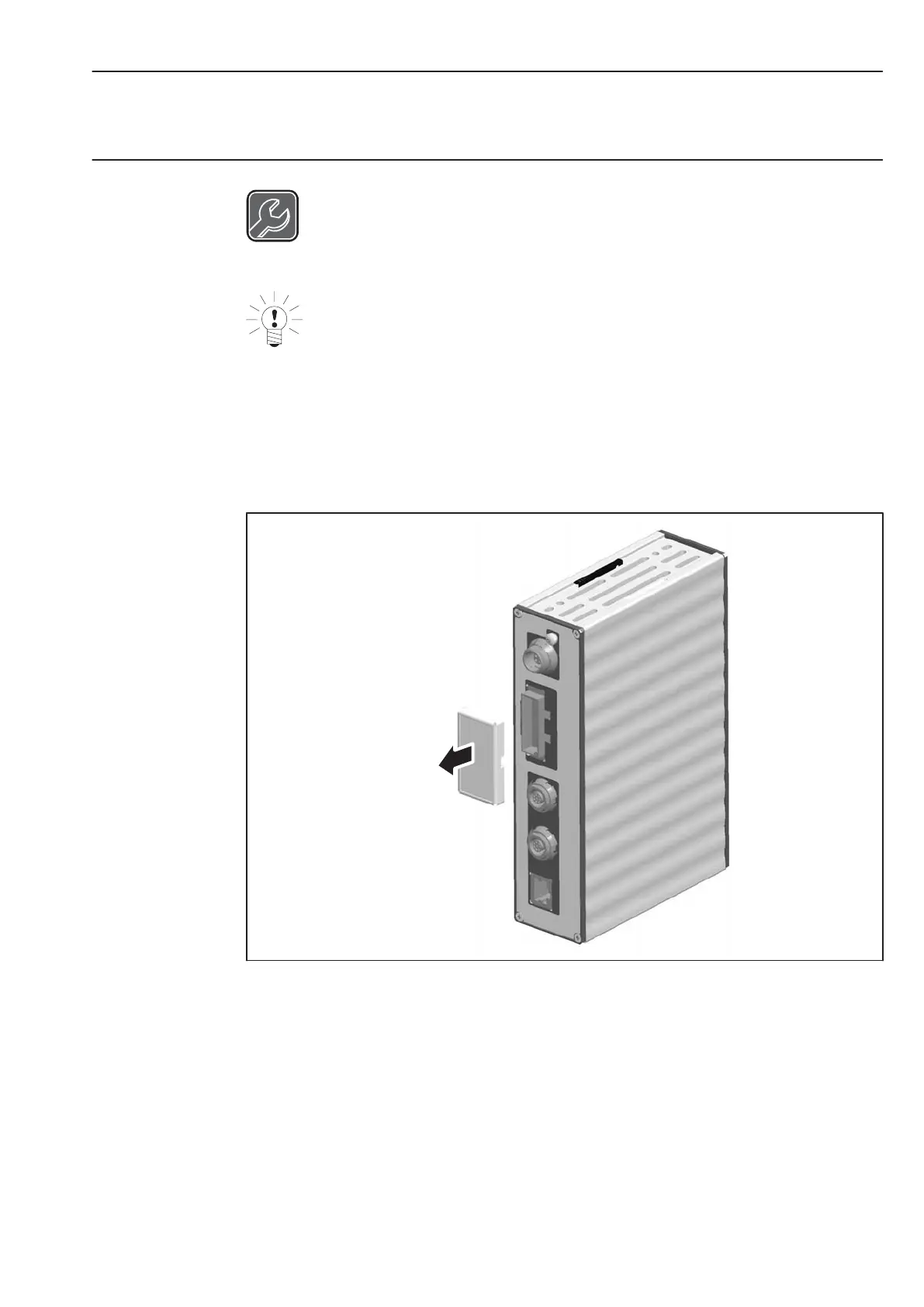

1. Remove the cover of the connecting plug (rear of module).
Cover
Fig. 4.19: Remove cover
2. Unscrew the upper and lower screwed clamping glands of the backplane up to the stop
(the screws are secured against falling out!).
